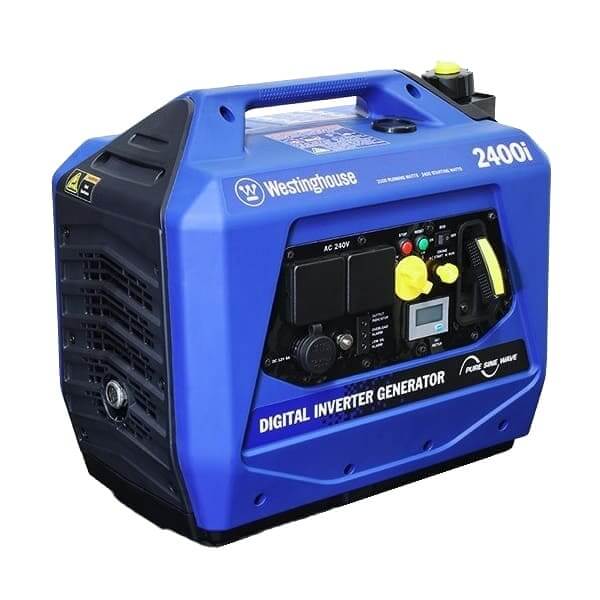

Westinghouse WHXC2400i - 2.4kVA 79cc 4 Stroke Petrol Inverter Generator
Click to see: Brochure, Spec Sheet, Comparison
Westinghouse digital inverter generators offer you the ultimate in portable power convenience. Lightweight, fuel efficient and quiet, their mains-quality electrical output can safely power all of your sensitive electronic equipment. They’re an essential part of your gear for caravanning and camping and also great for home as a backup power supply.
Features:
- 2,400 Starting Watts / 2,100 Running Watts
- Lightweight and Easy to Carry 20 kg with Handle
- Ultra-Silent Running from only 51 dB(A)
- Up to 24 Hours Run Time with 5 Litre Fuel Tank
- Digital Inverter Technology – Safe for Electronics
- 79 cc Westinghouse 4-Stroke OHV Petrol Engine
- Compliant with Australian and US Emissions Standards
- 240 Volt AC and 12 Volt DC Outlets
- Plug and Play – Just Add Petrol, No Assembly Required
- 2-Year Domestic Use Warranty (conditions apply)
Specifications:
- Engine:
- Type : 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
- Displacement: 79 cc
- Rated Power : 2.6 kW (3.5 hp)
- Maximum Speed (rpm): 5000
- Oil Capacity (mL): 400
- Low Oil Shutdown : Yes
- Spark Plug: Torch A5RTC
- Fuel: Unleaded Petrol
- Fuel Tank Capacity(L) : 5
- Auto-Speed Eco Throttle : Yes
- Fuel Level Gauge: Yes
- Auto-Prime Fuel System : Yes
- Starting Method: Recoil
- Hour Meter: Yes
- Run Time @ 400 Watts : 16 Hours
- Run Time @ 1,600 Watts : 5 Hours
- Noise Level @ 400 Watts : 52 dB(A) @ 7 Metres
- Noise Level @ 1,600 Watts : 61 dB(A) @ 7 Metres
- 240 Volt AC Electrical
- Voltage (V): 240
- Frequency (Hz): 50
- Frequency (Hz): 1
- Continuous Running Power (W) *: 2,100 Watts [2.1 kVA]
- Maximum Starting Power (W): 2,400 Watts [2.4 kVA]
- Continuous Running Current (A): 8.8
- Voltage & Waveform Control: Digital Inverter, Pure Sine Wave Output
- Total Harmonic Distortion (THD): < 2.5%
- Receptacles: 2 × 15 A, IP44
- Overload Protection: Electronic
- Alternator: Brushless, Permanent Magnet
- Output Meter: Digital, Multi-Function
- 12 Volt DC Electrical
- Voltage (V): 12
- Maximum Current (A): 8
- Maximum Power (W): 100
- Receptacle: 8 A, IP44
- Dimensions and Weight
- Length × Width × Height 50 × 34 × 44 cm
- Dry Weight 20 KG
- Wet Weight 24KG
* Rated output at 1.0 power factor.
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
