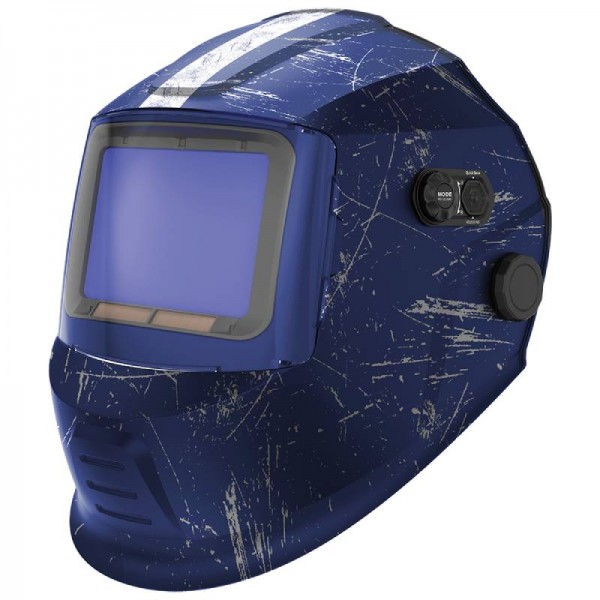

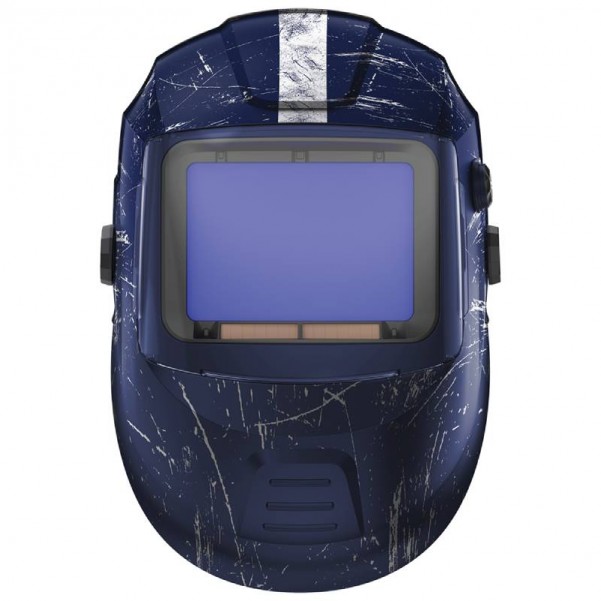

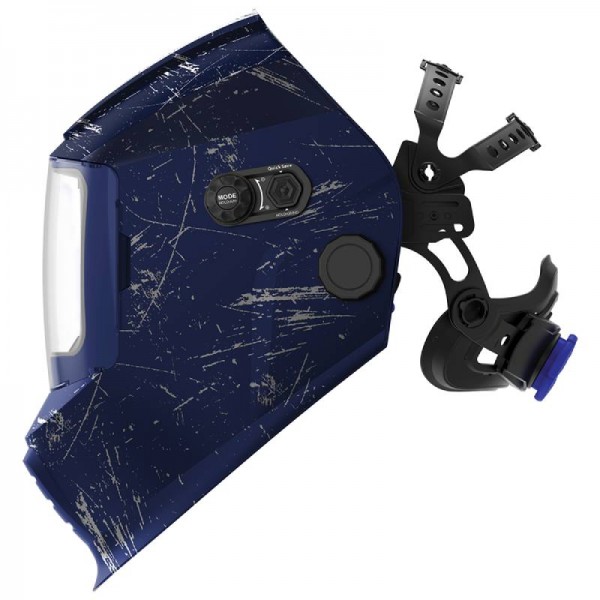

Weldclass WC-05345 - Promax 680 Blue Retro Graphic Welding Helmet

Features:

• 7-year Warranty*
• Enormous 95cm² viewing area
• 'Landscape' format (116mm wide x 82mm high) window/screen for a wider & more natural field of view
• Ultra-Crisp V1 (1/1/1/1) rated optics with enhanced colour recognition
• Illuminated digital LCD display/controls for superior visibility (auto dims when adjustments are not being made)
• Advanced digital controls with memory, cut mode, gradient & other functions
• External controls for shade adjustment & all modes: allows for instant & easy adjustment without removing or lifting the helmet
• Auto Controls: Option of Manual (user adjusts), or Auto shade / Sensitivity / Delay adjustment (helmets adjust settings automatically depending on arc intensity)
• Super-comfortable, wrap-a-round headgear with moulded rear pressure pad
• Lightweight (620g), up to 10% lighter than other digital wide-view helmets
• High-Impact tested and compliant with Australian standard AS/NZS 1337.1
• Auto-darkening lens complies with AS/NZS 1338.1
• Easy cover lens replacement
• Magnification lens holder - takes standard magnification lenses
• Reliable Power Source: Replaceable battery plus solar assist, efficient electronics for low power consumption
• Full-Laminate Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality and long service life. This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination and failure.
• Lightweight, Durable and Shock Resistant shell
• Weight: 620g
• Auto-on & Auto-off = No buttons to press, Hassle-Free operation

Applications:

• MIG welding
• Stick welding
• TIG welding down to 5 amps
• Grinding
• Plasma Cutting
• Oxy Cutting, Brazing, Heating
• Gouging

Functions:

• Shade adjustment: Auto (shade level adjusts automatically depending on arc intensity) or Manual (user adjusts), adjust in increments of +/- 0.5 via external or internal controls
• Shade Deviation: When using Auto shade, +/- deviation (fine adjustment) can be adjusted in 0.1 increments to up +2.0/-2.0
• Welding mode: Variable shade 9-14
• Cut mode: Variable shade 4-8
• Grind mode: Locks lens to light mode (shade 3), activate on/off via external button or internal controls
• Shade Lock: Switches off auto-darkening function & locks lens to a selected shade level (4-13), ideal for oxy cutting & similar processes where conditions may not be ideal for normal auto-darkening function
• Memory: Save up to 9 favourite settings (recalls shade, sensitivity & delay settings), with an ‘instant save’ function on external controls
• Delay (switching time from dark back to light after welding stops): Auto or Manual 0.1-1.0s
• Gradient Mode: Gradual return (slope down) from dark to light, mirrors cooling of the weld pool to reduce eye strain
• Sensitivity: Auto or Manual 0-9 settings
• Tack Mode: Returns to shade 5 (instead of shade 3) between welds to reduce fatigue

Specifications:

• Suitable Processes: MIG, MMA/Stick & TIG (≥5 amps), Grinding, Plasma Cutting, Oxy Cutting / Brazing / Heating, Gouging
• Viewing Area: 116mm wide x 81mm high (95cm2) landscape format for a wider field of view
• Switching Speed: Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
• Arc Sensing: 4 Sensors + 1 Arc Intensity Sensor
• Power Supply: 2 x CR2450 replaceable battery & Solar Assist
• On / Off: Ready to use at any time, no switching required
• Operating Modes(Switch between modes via internal or external controls):
  • Weld: Adjustable shade 9-14
  • Cut: Adjustable shade 4-8
  • Shade-Lock: Locks lens at any shade level from 4-14
  • Grind: Lock lens at shade 3
• Shade adjustment: Internal or external, Manual or Auto*. Adjusts in 0.5 increments.
• Sensitivity: Internal, Manual or Auto* Low – High
• Delay: Internal, Manual or Auto* Low – High
• *Auto:
  • When set to Auto, the helmet monitors arc intensity and adjusts settings automatically.
  • When using auto shade, +/- deviation can be adjusted in 0.1 increments.
• Tack mode: Returns to shade 5 (instead of shade 3) between welds to reduce fatigue Controlled via sensitivity adjustment
• Gradient mode: On gradual return/slope down from dark to light. Off: no gradient, returns directly to shade 3
• Memory: Save up to 9 favourite settings (recalls shade, sensitivity & delay settings)
• Weight: 620g
• Mag Lens Holder: Takes standard 108 x 51mm Magnification Lenses
• Standards Compliance:
  • Lens: AS1338.1, ISO16321-2
  • Shell: AS/NZS1337.1 High Impact
• Optical Rating: V1 1/1/1/1 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
• Warranty: Conditional 7 years (on auto darkening lens) See Weldclass.com/warrantyinfo for details
• Temperature Range: Operating -5 oC to +55 oC / Storage -10 to +65 oC

Common Spare Parts & Optional Accessories:

• Clear cover lens kit (2 outer, 1 inner) WC-05351
• Clear cover lens outer WC-05352
• Clear cover lens inner pk5 WC-05357
• Magnification lenses
• Headgear WC-05353
• Sweatband WC-01630
• Batteries: Type CR2450, commonly available from any battery retailer/wholesaler (Weldclass does not supply this item)
