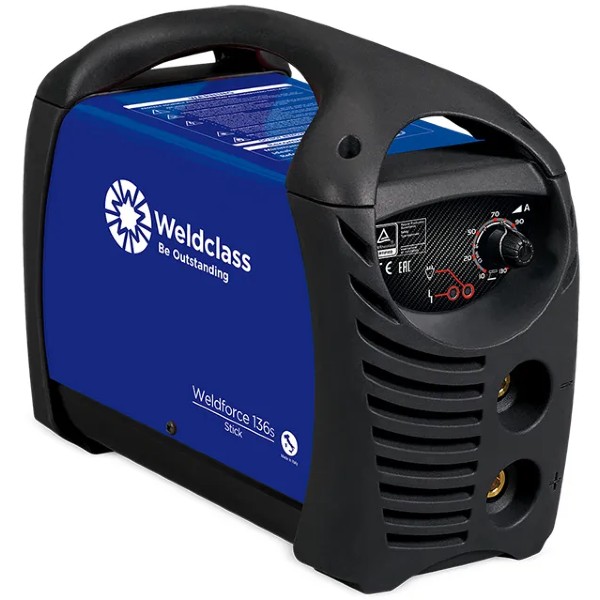

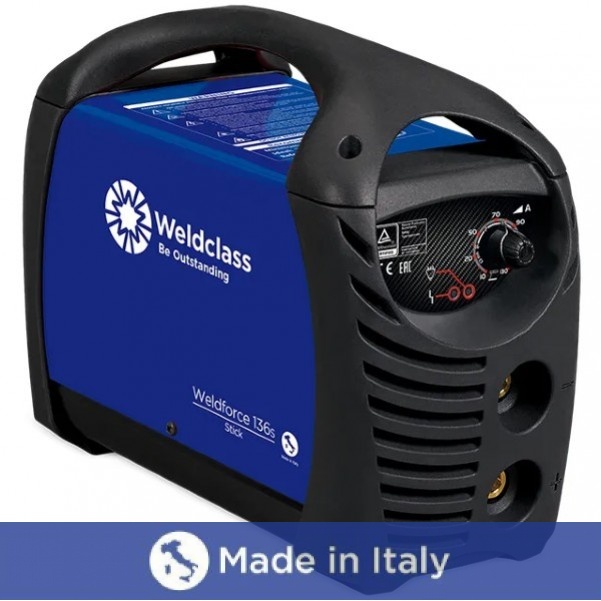

Weldclass136S - 240V 130A 3.2mm Weldforce Inverter Welder Standard Package
The ULTRA 136S* stick welder offers affordable European quality. A real pocket rocket weighing just 3kg, yet capable of welding with up to 3.2mm electrodes with ease. Built-in hot-start and arc-force control with high open circuit voltage (72V) for a very smooth, reliable arc & easy electrode striking/ignition. Comes with 3m earth & stick leads and a 10A plug fitted.
*Also known as Weldforce 136S - read more.
Includes:
- 1 x Earth Lead 3m
- 1 x Stick Lead 3m
Functions:
- Stick (MMA)
- Suitable for running most types of common electrodes up to 3.2mm, including steel, stainless, hard facing & more
- NOT suitable for TIG welding. This is a dedicated stick/MMA machine, to allow us to offer European technology at the most affordable price. For models with TIG capability, check out the range here
AT A GLANCE:
- Made in Europe
- 130A max output
- Weld with up to 3.2mm electrodes
- Fitted with 10A 240V plug
Features:
- Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants
- Leading 4-year warranty**
- 30-day Money Back Guarantee***
- Weighs only 3kg - compact, robust & lightweight
- Automatic Hot Start & Arc Force
- Generator Compatible - min 6kva, ideal 7kva
- High Open Circuit Voltage (72V) for very smooth & reliable arc & easy electrode striking/ignition
- Made in Europe
**Standard warranty 2 years, with extended 10 year warranty available if registered online after purchase, click here for details.
***Terms & conditions apply
Functions & Capability:
- Stick (MMA)
- Suitable for running most types of common electrodes up to 3.2mm, including steel, stainless, hardfacing & more
- NOT suitable for TIG welding. This is a dedicated stick/MMA machine, to allow us to offer European technology at the most affordable price.
Specifications:
- Dimension (incl. handle): L380 x W420 x H170 mm
- Standard: AS 60974.1
- Power Supply: 240V 1-Phase
- Open Circuit Voltage: 72V
- Output Cable Terminals: 10-25 (Standard)
- Welding Current Output: 10-130A (max 150A)
- Duty Cycle (MMA):
- 125A @ 7%
- 35A @ 60%
- 30A @ 100%
- MMA Electrode Size / Capacity: 1.6 - 3.2 mm
Common Accessories & Spare Parts:
- Welding lead sets
- T100 Welding Trolley (part no WC-06235)
Related Info & Articles:
- Warranty Registration
- Power plugs on single-phase Welders: Your questions answered
- What is an Inverter Welder? About Inverter technology
- What is Duty Cycle & How is it Calculated?
- Using Generators to power inverter welders & plasma cutters
- What is MMA (stick) welding? About the MMA process
- MMA (Stick) Welding: What is Hot Start, Arc Force & Anti-Stick?
- MMA (Stick) Welding: What is Open Circuit Voltage (OCV)?
More information | Video | Register Warranty
Introductional Video:
