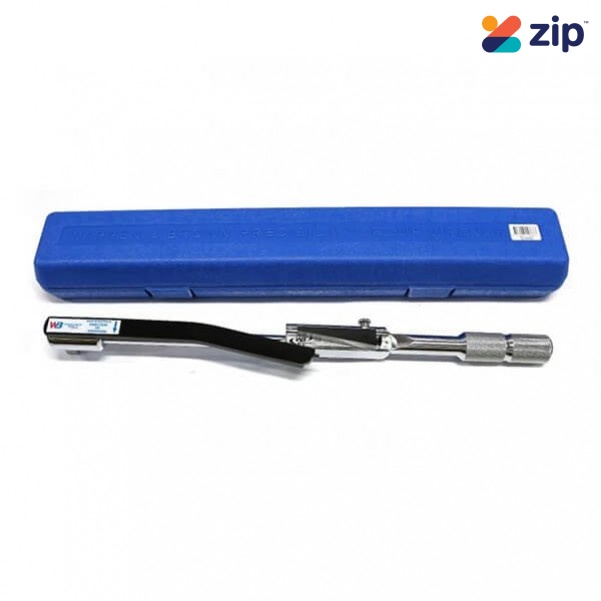

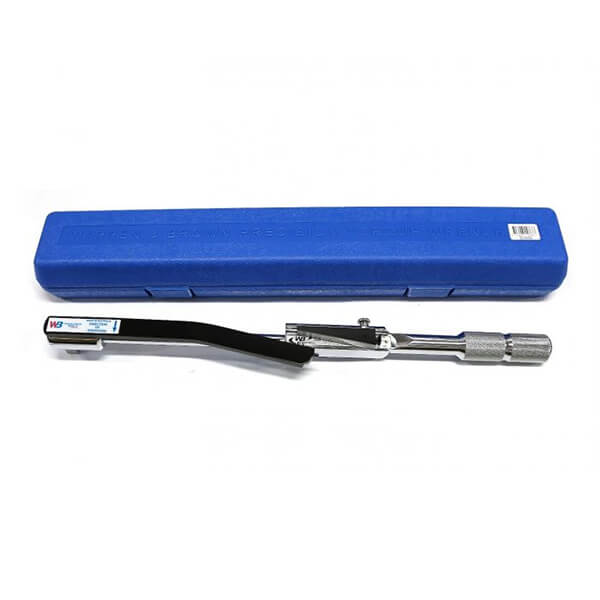

Warren & Brown Tools 323500 - 1/2" Drive 30-300Nm Deflecting Beam Torque Wrench
This precision deflecting beam torque wrench features a 1/2" square drive and has an accuracy of +/-2% throughout a range of 30 - 300Nm (20 - 220ft.lbs).
Deflecting beam torque wrenches work by applying torque to a deflecting beam rather than a coil spring. With no wearing parts, the unique design ensures the accuracy of +/-2% throughout the range of the wrench.
The torque setting can easily be set via a sliding scale which displays the torque units. The dual signal feature allows the user to see, feel and hear when the selected torque has been reached. When working in a noisy environment the operator can see the signal mechanism release without relying solely on an audible notification.
WB Tools deflecting beam torque wrenches are an icon in the Australian automotive industry. With unparalleled accuracy and durability enabling it to stand the test of time, they're still regarded as an invaluable tool for any serious mechanic.
Features:
- 1/2" drive
- Range: 30 - 300Nm (20 - 220ft.lbs)
- Accuracy +/-2%
- Deflecting beam mechanism (no spring)
- Dual signal (see and hear when the wrench has reached the selected torque)
- Torque units displayed in ft.lbs, Nm & kg-cm
- Rigidity - all steel construction
- Repeatability
- Durability - no wearing parts
- Meets or exceeds Australian standards
- Certificate of calibration can be provided on request
- Lifetime warranty on deflection bar
Specifications:
- Torque Range: 30 - 300Nm (20 - 220ft.lbs)
- Drive: 1/2" Square Drive
- Accuracy +/-2%
- Length: 490mm
- Weight: 2.198kg
