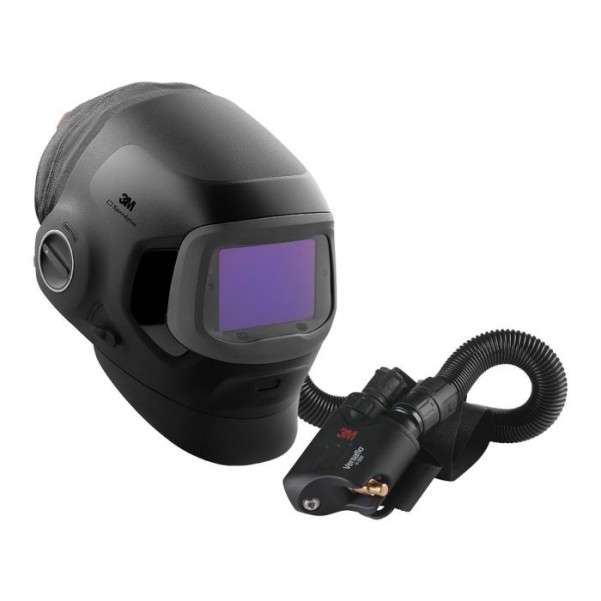

Speedglas 638820 -  G5-03TW Pro Air with V-500E SAR Welding Helmet

Speedglas 638820 -  G5-03TW Pro Air with V-500E SAR Welding Helmet



The Speedglas G5-03 Pro Air Welding Helmet offers a range of cutting-edge features designed to enhance both safety and comfort for professional welders. Below are some key highlights and benefits of the helmet and its integrated protection system:

Features:

  • Welding Fume Protection: The helmet includes an innovative face seal that forms a positive pressure barrier, effectively protecting the welder from welding fumes and other contaminants. Filtered air is delivered directly to the breathing zone, ensuring a safe and breathable environment.
  • TAP Technology for Easy Mode Switching: Seamlessly switch between welding, grinding, and cutting modes with a simple tap on the helmet, offering great convenience and flexibility.
  • Extra-Light Shade 2.5 Welding Lens: The 2.5 light shade improves visibility and contrast, enhancing the welder’s control over the work and providing a clearer view of surroundings during welding and grinding.
  • Airflow Adjustments for Comfort: The helmet features an adjustable airflow system that allows welders to regulate the intensity and direction of airflow, enhancing comfort while maintaining full protection.
  • Large Viewing Area: The helmet provides an extra-large viewing area (73x109 mm) for better visibility of the weld pool, complemented by Speedglas SideWindows for enhanced peripheral vision.
  • Bluetooth® Technology and Memory Modes: Welders can adjust lens settings remotely via Bluetooth® and the 3M Connected Equipment app, programming memory modes and adjusting delay and shade settings as needed.
  • Versatile Welding Lens: The G5-03 TW lens is suitable for welding, cutting, grinding, and tacking, offering varying shades to suit different applications. It features a light shade of 2.5 for grinding, and shades 8-13 for welding based on amperage. Advanced True-View Technology: Speedglas True-View technology provides enhanced color recognition, contours, and contrast, improving the clarity of the welding environment and the welder's control.
  • Task Light for Dark Spaces: An optional task light powered by the Adflo PAPR battery helps improve visibility in low-light conditions, making it easier to see the workpiece.
  • Customizable Comfort: The helmet features a high-performance head harness with multiple adjustments, ensuring a comfortable and secure fit for long-duration use.
  • Respiratory Protection (3M™ Versaflo™ SAR): The V-500E supplied air regulator offers a lightweight and highly effective solution for clean, filtered air in demanding environments, maintaining optimal safety and comfort for the welder.
  • Noise Reduction:The V-500E regulator operates at less than 65 dBA, ensuring the welder's environment remains at a comfortable noise level, equivalent to a normal conversation.

Specifications:



  • Relevant Welding Helmet Standards: Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Respiratory Protection - AS/NZS1716
  • Speedglas TrueView Welding Lens: Yes
  • Variable Colour Technology: No
  • Stick Welding: Yes
  • MIG Welding: Yes
  • TIG Welding: Yes (industry leading detection down to 1 Amp)
  • Grinding Feature: TAP Technology (shade 2.5)
  • Memory Mode (Set-and-Forget): Yes
  • SideWindow Peripheral Vision: Yes
  • Hidden Arc Mode: Yes
  • Welding Lens Viewing area: 73 x 109mm + SideWindows
  • Variable Dark Shades Shade: 5, 8-13
  • Light State: TrueView Shade 2.5
  • UV Protection Shade 13 (permanent)
  • Switching time, light-dark: 0.1 ms (+23 C)
  • Delay (switching time, dark-light): 50-1300 ms
  • Blue-Tooth Enabled: Yes
  • Optional Task Light: Yes
  • Comfort Exhaust Vents: No (positive pressure seal for supplied air)
  • Head Harness: New G5-03 Pro Head Harness
  • Safety Helmet: No
  • Required minimum protection factor: 100+
  • Air flow Level: 170-305 l/min
  • Adjustable Air Control: Yes
  • Adflo Battery Run Time: N/A
  • Adflo Battery Charge Time: N/A
  • Welding Helmet Model: Speedglas G5-03 Pro Air
