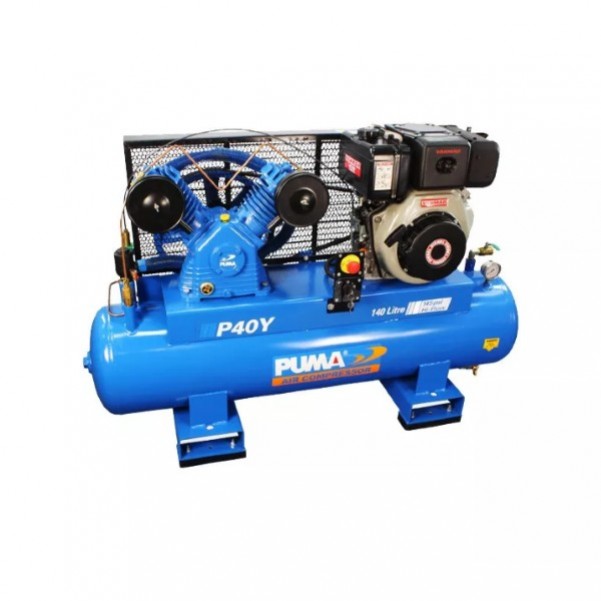

Puma PU P40Y ES - 140L 10.0HP P40Y Yanmar Diesel Electric Start Air Compressor - Mine Spec
Freight:
As this is a heavy and large item, please send us an Email or call us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping requirement.
Delivery:
This item is more than 240 kg, please make sure you have a lifting device to unload it. Otherwise, please order a Hydraulic Tail Lift Service in the “Add Optional Accessories” section. Thanks.
Puma air compressors are now available in Australia powered by genuine Yanmar L-N series diesel engines for use in critical safety environments. The Yanmar engines utilize direct fuel injection technology to deliver high power output with low fuel consumption - all in a compact design.
The innovative Puma long-stroke compressor pumps offer outstanding free-air-delivery and their full cast iron construction ensures durability. This mode is a Mine Spec compliant version with the emergency stop button and fail-safe engine fuel shutoff control.
Features:
- Puma Hi-Flow Pump - Puma’s exclusive long-stroke pump design delivers very high flow-rates at low pump speeds. Its full cast iron construction is built tough for reliability and long service life.
- Yanmar Diesel Engine - Yanmar’s direct-injection technology achieves high power output with low fuel consumption. Auto-idle throttle control regulates the engine speed to match compressed air demand.
- Electric Start and E-Stop - Choose the convenience of an electric start model and avoid the strain of rope pull starting. Each one is fitted with a fail-safe emergency stop button for Mine Spec compliance.
- 12 Volt Battery Kit Option - Make your electric start compressor independent of its host service truck by specifying this option. The kit includes a maintenance-free battery, insulated leads and custom-engineered bracket. (Not included)
Specifications:
- Yanmar Engine Model: L100, 10hp
- Yanmar Engine Starter: Key Electric & Rope Pull
- Emergency Stop: Push Button
- Pump Displacement: 1,085L/min (38.3cfm)
- Free Air Delivery: 805L/min (28.4cfm)
- Tank Volume: 140 Litres
- Pump Model: Puma PG76
- Pump: 900 RPM
- Outlet Size: 3/4" BSP
- Noise Level: 89 db(A)
- Weight: 240kg
- Length: 156cm
- Width: 46cm
- Height: 103cm
