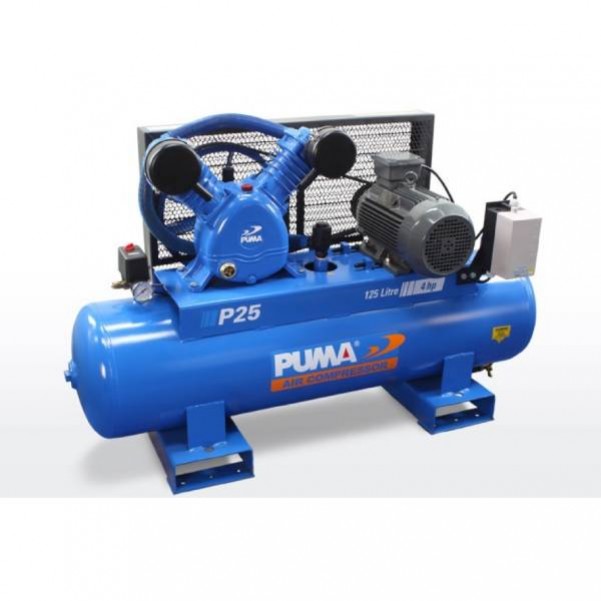

Puma PU P25 415V - 415V 3kW 390L/min Electric Motor Air Compressor

Freight:
This item is a heavy and large item, freight might vary from different locations, please contact us by Email or phone us at (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:
This is a heavy item more than 178 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.

An all new and improved range of Puma 415 Volt air compressors is now available in Australia with a choice of popular models from 3 to 11 kW. The trusted Puma slow-revving compressor pump ensures high free-air-delivery performance backed by the durability of full cast iron construction. Teco’s efficient MEPS compliant motor saves you money by reducing the electric power needed to operate the compressor. Factory, workshop and industrial applications will be reliably served by these heavy duty, quiet running stationary air compressors.

Features:

Puma Compressor Pump - Puma’s traditional oversquare pump design delivers high flowrates at low pump speeds. Its full cast iron construction is built tough for reliability and long service life.
Teco 415V Electric Motor - The fully copper-wound, high efficiency MEPS compliant motor saves you money by using less electricity. It’s an industrial heavy duty, cast iron frame design with IP55 enclosure protection.
Teco DOL Motor Starter - Each model from 3 to 7.5 kW is fitted with a direct-on-line starter in an IP65 enclosure. It provides motor start/stop switching, overload protection and remote fault monitoring.
Star-Delta Motor Starter - The 11 kW model is fitted with a star-delta starter in an IP66 enclosure. It reduces starting current demand and voltage dip in accordance with Electricity Supply Regulations.
WH&S Approved Air Tank - An oversized air tank reduces compressor start / stop cycling, keeps the system air pressure more constant and cools the compressed air better for improved moisture removal.
Trade Quality - From the fully enclosed steel belt guard to the anti-block tank drain valve, every component has been selected to withstand the rigours of day-to-day industrial trade use.

Specifications:

Motor Power: 3 kW (4 hp)
Pump Displacement: 545 L/min (19.3cfm )
Free Air Delivery: 390 L/min (13.8cfm )
Maximum Pressure: 900 kPa (130 psi)
Tank Volume: 125 Litres
Pump Model: Puma PG40
Pump Speed: 900 rpm
Current Draw: 6.4 Amps
Outlet Size: 3/4"
Noise Level: 80 db(A)
Weight: 178kg
