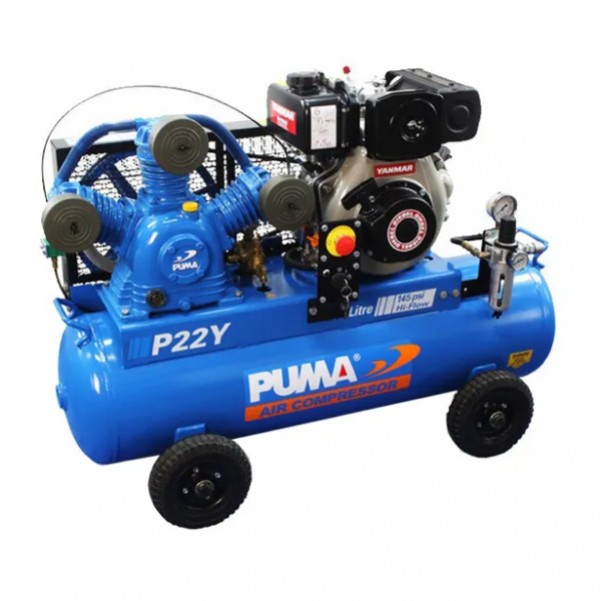

Puma PU P22Y ES - 75L 4.7HP 440L/min Electric Start Yanmar Diesel Air Compressor - Mine Spec

Puma PU P22Y ES - 75L 4.7HP 440L/min Electric Start Yanmar Diesel Air Compressor - Mine Spec

Freight:
As this is a heavy and large item, please send us an Email or call us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping requirement.

Delivery:
This item is more than 124 kg, please make sure you have a lifting device to unload it. Otherwise, please order a Hydraulic Tail Lift Service in the “Add Optional Accessories” section. Thanks.

Puma air compressors are now available in Australia powered by genuine Yanmar L-N series diesel engines for use in critical safety environments. The Yanmar engines utilize direct fuel injection technology to deliver high power output with low fuel consumption - all in a compact design.

The innovative Puma long-stroke compressor pumps offer outstanding free air delivery and their full cast iron construction ensures durability. This model is a Mine Spec compliant version with the emergency stop button and fail-safe engine fuel shutoff control.

Features:

  • Puma Hi-Flow Pump - Puma’s exclusive long-stroke pump design delivers very high flow-rates at low pump speeds. Its full cast iron construction is built tough for reliability and long service life.
  • Yanmar Diesel Engine - Yanmar’s direct-injection technology achieves high power output with low fuel consumption. Auto-idle throttle control regulates the engine speed to match compressed air demand.
  • Electric Start and E-Stop - Choose the convenience of an electric start model and avoid the strain of rope pull starting. Each one is fitted with a fail-safe emergency stop button for Mine Spec compliance.
  • 12 Volt Battery Kit Option - Make your electric start compressor independent of its host service truck by specifying this option. The kit includes a maintenance-free battery, insulated leads and a custom-engineered bracket. (Not included)

Specifications:

  • Yanmar Engine Model: L48, 4.7hp
  • Yanmar Engine Starter: Key Electric & Rope Pull
  • Emergency Stop Fitted: Yes
  • Pump Displacement: 540L/min (19.1cfm)
  • Free Air Delivery: 440L/min (15.5cfm)
  • Maximum Pressure: 1,000kPa (145 psi)
  • Tank Volume: 75 Litres
  • Pump Model: Puma PG41
  • Pump: 900 RPM
  • Outlet Size: 1/4" BSP
  • Noise Level: 83 db(A)
  • Weight: 124kg
  • Length: 1130mm
  • Width: 450mm
  • Height: 840mm
