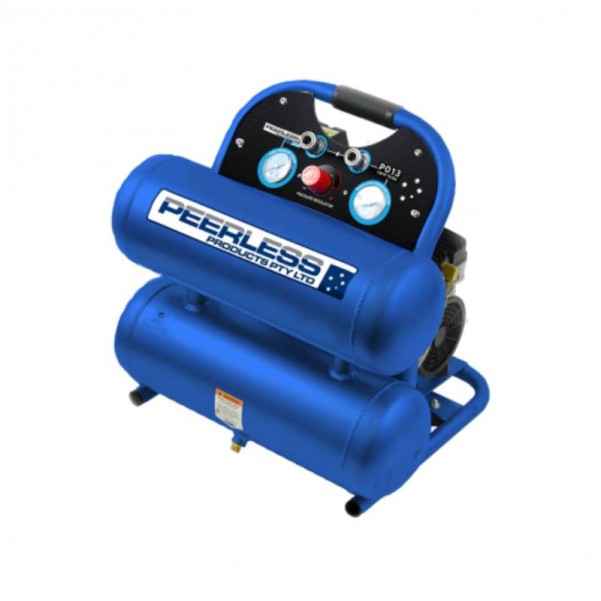

Peerless PO13TT - Twin Tank Single Phase Oilless Direct Drive Air Compressor

Freight:
This item is a heavy and large item, freight might vary from a different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 30kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.


Peerless oil-less range of air compressors are very reliable, cost-efficient and clean.
Copper wound electric motors with 7AMP draw producing an outstanding air flow of free air delivery along with its super quiet motor at only 52dBa +/-2.

This impressive Air Compressor produces 175LPM of free air delivery, this will run your framing guns through to your coil guns.

We have also fitted an electronic auto drain to the receiver on the standard model (00590), as we all know its hard to remember to drain your tank. The 2HP motor / pump assembly is fully copper wound. This is where the weight comes into it, as the motor itself weighs 19kg. This is the easiest way to know if your oil less motor is an actual 2HP.

An over run cut out alarm is a new feature fitted to our PO13. This is to assist in making sure your air compressor doesn't get damaged due to excessive running caused by air leaks or the air tool being too big for the unit. Protecting your investment and keeping it in top performance is our goal.

American Teflon barrels and piston rings deliver maximum performance and life span. These have to be serviced based upon hours of use. Being oil free doesn't mean maintenance free - despite what any will tell you. On average they need to be replaced every 2000 Hours of use. Cheaper units are 500 hours of use dependent on material used in manufacturing process. We carry all spare parts and components to be able to service and maintain your air compressor. They are not a throw away air compressor, we believe in making sure your down time isn't impacted, as down time is costly.

Being an Oil Less Air Compressor it doesn't matter about parking level too! compared to oiled Air Compressors. Drawing an impressive 7AMPS compared to 9AMPS on other models this is well suited for low voltage areas!

In standard environment conditions when your air compressor reaches 14 PSI you have the reached the volume of air in the receiver!. So on this particular model (PO13) at 14 PSI you have 30L of compressed air in the tank. At 28 PSI you now have 60L of compressed air in the tank. So if the cut out pressure is 112 PSI, you now have 240L of stored compressed air! Who said small tanks don't hold enough air?
As mentioned this can be affected by the temperature and other factors.
Smaller tanks also equates to quicker air recovery times of lost pressure along with lower operating temperature of pump.

Please note: air compressors i.e piston type, are not designed to run continuously they must cut in and out. Direct drive models should only have up to a 40-50% duty cycle. Belt Drive hobby models are up to 60-70% and full industrial belt drive models are up to 75-85%. If the compressor runs over these duty cycles it could cause failure. Important - first check voltage on each building site as low voltage will cause the motor to fail on all compressors. It must have be better than 230 volt at peak times. Extension leads will cause voltage drop, it's better to use extra air hose.

Specifications:

• Free Air Delivery (LPM): 175 LPM
• Max PSI: 145
• Motor HP: 2
• Warranty Pump: 1 Year
• Warranty Motor: 1 Year
• Tank Capacity (L): 18L
• Pump up time to 100PSI: 0.40 - 0.45 Min
• Dimensions (mm): 540Lx460Wx550H
• Weight (kg): 36Kg
• Cooling method: Air cooled
• Pump type: Oil-less Copper wound
• Cylinders: 2
• Pump head tension: 7.8 FT LB 11 NM
• Pump RPM: 1350
• Outlet thread: 1/4" BSP
• Electricity: 240V / 10A
• Amps draw: 7
