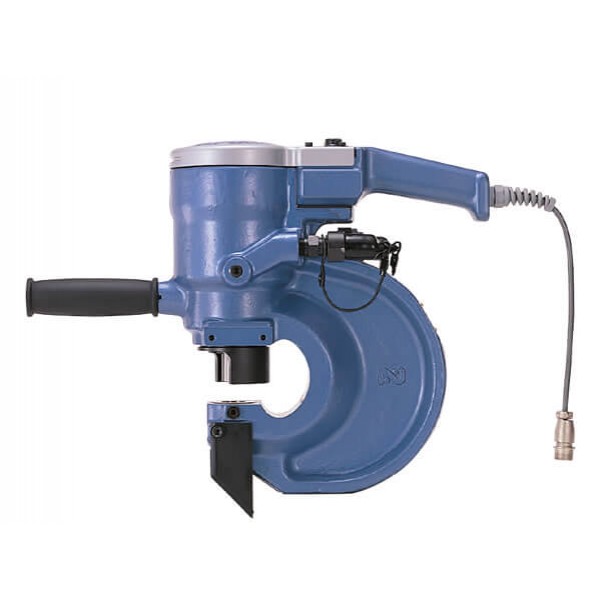

Nitto HS06-1322 - 60mm Portable Hydraulic Selfer Ace Punch 152100001
Features:
- Applicable for both mild steel and stainless steel punching
- Allowable max pressure - 700kgf
- Hole making time - punching: 11.8 sec. / return - 5.7 sec. (Auto Return)
- Auto return (automatic operation)
- Inching function (manual operation)
- Will punch both round an elongated holes
- Selfer Ace pump HPD-05 is required to operate units
- Spanner 12 - 1 pc.
- Sub Handle Assembly - 1 set
- Chip Guard Assembly - 1 set
Specifications:
- Model - HS06-1322
- Punching diameter capacity - 8mm - 22mm
- Max. punching thickness in mild steel - 13mm
- Max. punching thickness in stainless steel - 6mm
- Throat depth - 60mm
- Weight - 20.5 kg
- Dimensions - 423 x 323mm
Includes:
- 1set TA96534 - hose kit assembly 5m
- 1pc TP05184 - ultra-high pressure hose 5m
- 1set TA93778 - switch cord assembly
- 1set TA9B044 - Hose Kit assembly 10m
- 1pc TP05777 - ultra-high pressure hose 10m
- 1set TA95307 - switch cord assembly 10m
- 1set TA94386 - foot switch assembly
- 1set TA92729 - oil can assembly
