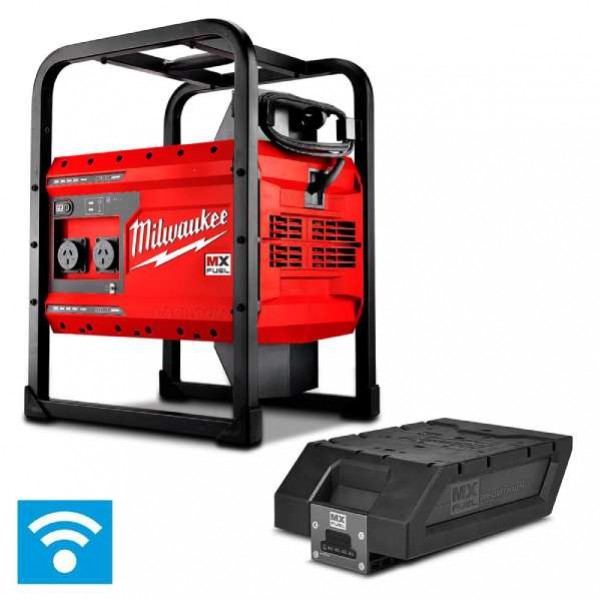

Milwaukee MXFPS-0 + MXFXC406 - MX FUEL™ Power Supply Kit
Includes:
- 1 x MXFPS-0 - MX FUEL™ Power Supply
- 1 x MXFXC406 - MX FUEL XC Battery
Milwaukee MXFPS-0 - MX FUEL™ Power Supply
Features:
- No ongoing engine maintenance, petrol frustrations and headaches
- No emissions when in use, safe use in both indoor and outdoor
- 3600 peak watts, 1800 continuous watts for high draw tools and equipment
- Push button start
- Minimal noise
- Pure sine wave for sensitive electronics
- Optimised footprint for use in any workspace
- Integrated MX FUEL Charger function
- M18/M12 Charger Mounting Location
- Lockable battery bays
- ONE-KEY™ compatible
Specifications:
- PLATFORM: MX FUEL™
- ONE-KEY ENABLED: Yes
- WEIGHT: 18.1kg
- WARRANTY: 2 Year Tool
Milwaukee MXFXC406 - MX FUEL XC Battery
Features:
- Compact profile, making the MX FUEL™ Equipment System the lightest and most powerful in the industry
- Fully charges within 90 minutes
- REDLINK™ PLUS INTELLIGENCE provides industry-leading communication between battery, equipment, and chargers
- World leading cell technology ensures optimum performance and life for the most demanding applications
- Integrated carry handle
- Onboard fuel gauge
- Protective rubber overmold with increased rubber in impact zones absorbs shock
Specifications:
- Platform: MX FUEL™
- Charge Duration: 90 min
- Capacity: 6.0Ah
- FUEL Gauge: Yes
- REDLINK™ Intelligence: Yes
- Weight(Tool Only): 4.8 kg
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
