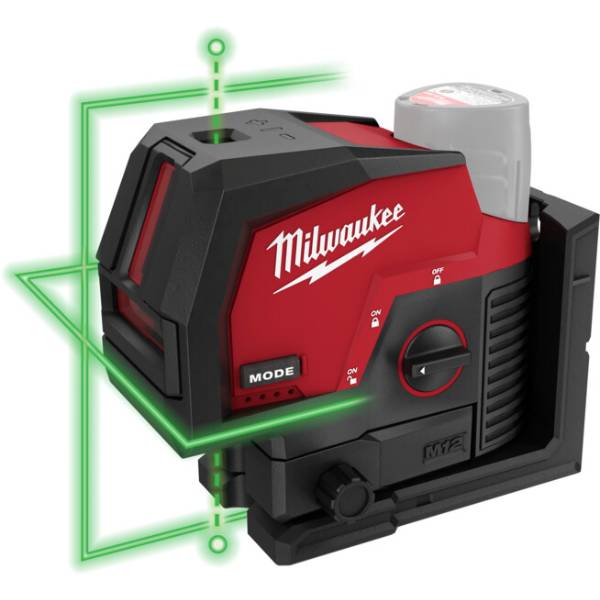

Milwaukee M12CPL-0C - Cross Line + 2 Plumb M12 Laser Skin

Click Image for Gallery

Milwaukee M12CPL-0C - Cross Line + 2 Plumb M12 Laser Skin

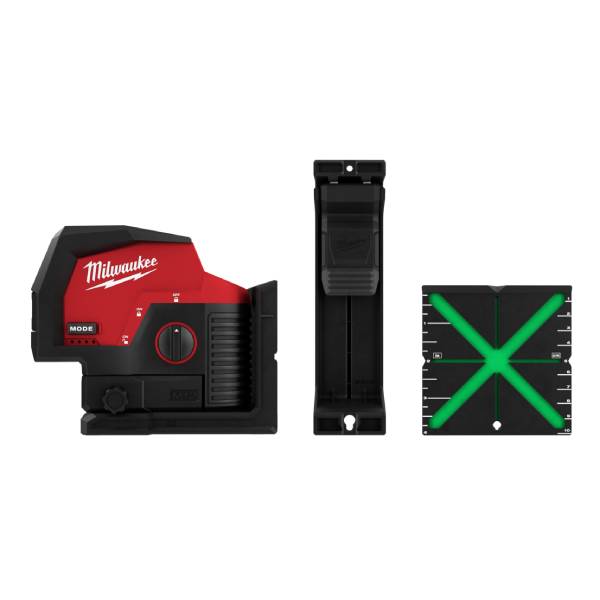

Includes:

1 x M12™ Cross Line + 2 Plumb Laser (M12CPL)
1 x Laser Track Clip with Quick Connect (48351313)
1 x Laser Target (48351111)
1 x Carrying Case

Features:

15 hours of runtime on a single charge using M12™ REDLITHIUM™-ION 3.0Ah battery
Visibility range of up to 38 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8″ tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

Specifications:

Platform: M12
IP Ratings: IP54
Dimensions: 173 x 74 x 145 mm
Weight: 1.0 kg
Warranty: 3 Years
Locking Pendulum: Yes
Plumb Point Access: 2" (51 mm)
Self-Leveling: ± 4° Tilt
Accuracy: ± 3.18 mm over 10 m
Impact Resistant: 1m
Working Range: 38 m
Range with Detector: 50m
Thread Mount: 1/4"-20, 5/8"-11

Applications:

Construction:
- Commercial Carpentry and Steel Stud
- Steel Stud, Soffit Layout/Install
- Finish Carpentry
- Ground/Celling Layout Transfer
- Reference Line
- Material Alignment
- Visualize Enter/Exit Points
- Level/Plumb
- Offsets
- Header
- Backboard
- Ceiling Grid/Wire
- Top Wall Track
- Metal Door Jamb
- Cut drywall in place
- Drywall at unusual corners
Electrical:
- Anchor, Conduit, Electrical Box, etc Layout/Install
- Ground/Celling Layout Transfer
- Reference Line
- Material Alignment
- Visualize Enter/Exit Points
- Level/Plumb
- Offsets
- Switch & Outlet Boxes
- Light
- Strut
- Conduit Run/Clamp
- Wire Mold
Plumbing:
- Anchor, Pipe Layout/Install
- Ground/Celling Layout Transfer
- Reference Line
- Material Alignment
- Visualize Enter/Exit Points
- Level/Plumb
- Offsets
- Pipe Run
- Grab Bars
- Hanger
- Hole Core Between Floors
- Threaded Rod
Mechanical:
- Anchor, Duct, Pipe Layout/Install
- Ground/Celling Layout Transfer
- Reference Line
- Material Alignment
- Visualize Enter/Exit Points
- Level/Plumb
- Offsets
- Strut
- Duct Run
- Hole Core Between Floors
