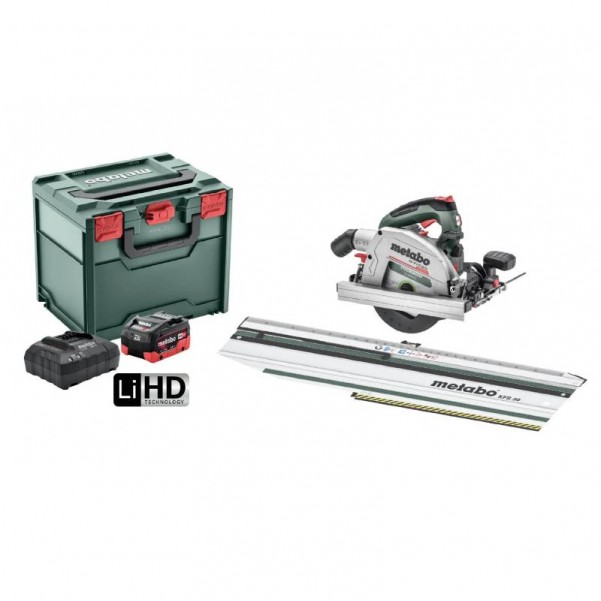

Metabo KS 18 LTX 66 BL 1 HD 5.5 KFS 30 K (AU61186601) - 18V 5.5Ah Cordless Brushless Circular Saw Kit

Include:

• 1 x Metabo KS 18 LTX 66 BL - 18V 165mm Cordless Brushless Circular Saw Skin 611866850
• 1 x Metabo 5.5 LiHD - 18V 5.5Ah LiHD Battery Pack 625368000
• 1 x Metabo ASC 55 - 12-36 V Air Cooled Charger 627047000
• 1 x Metabo KFS 30 - 690mm Cross Cutting Rail 629015000
• 1 x MetaBox 340 Case

Metabo KS 18 LTX 66 BL - 18V 165mm Cordless Brushless Circular Saw Skin 611866850

Features:

• Aluminium base plate can be directly used on guide rails from Metabo and other manufacturers
• Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
• LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
• Automatic switching on/off of the connected vacuum cleaner thanks to Metabo 630235000 - Start/Stop Set Universal CordlessControl
• Sawdust ejection nozzle for any working position can be rotated and locked individually
• Integrated LED work light for optimum illumination of the cutting line
• 0° position re-adjustable for highest cutting precision
• Clearly visible cutting indicator for precise sawing after initial cut
• Robust and durable thanks to aluminium die-cast saw housing
• Handle with non-slip soft-grip surface  for safe guidance
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com

Specifications:

Characteristics

• Voltage: 18V
• Swivel Range: ‌ 0° - 46°
• Adjustable Cutting Depth: 0 - 66mm
• Maximum Cutting Depth:
  • At 90°: 66mm
  • At 45°: 43mm
• Max Cutting Depth with Guide Rail: 61mm
• Saw Blade Ø x bore: 165mm x 20 mm
• No load Speed: 4800rpm
• Max Cutting Speed: 43m/s
• Weight (Tool only): 3.5kg
• Weight: 4.5kg

Noise Emission:

• Sound pressure level: 87dB(A)
• Sound power level (LwA): 98dB(A)
• Uncertainty of measurement K: 3dB(A)

Metabo 5.5 LiHD - 18V 5.5Ah LiHD Battery Pack 625368000

Features:

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation
• Ultra M technology: Intelligent battery management for long-lasting battery packs with a 3 year guarantee
• Patented “AIR COOLED“ charging technology
• Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
• Processor-controlled charge and discharge management
• Capacity display with almost no self-discharge
• Capacity display with almost no self-discharge
• One battery pack for everything. 100% compatibility with all 18 V machines and chargers of the CAS partners: www.cordless-alliance-system.com

Specifications:

• Battery pack voltage: 18 V
• Battery pack capacity: 5.5 Ah

Metabo ASC 55 - 12-36 V Air Cooled Charger 627047000

Features:

• Monitored charging with microcontroller
• Battery diagnosis
• Charge time approximately 30 minutes at 1.5 Ah
• "AIR COOLED" function
• For charging all Li-Power Compact, Li-Power Plus, Li-Power Extreme battery packs
• For charging all Li-Ion and LiHD slide-on battery packs (12 V - 36 V) with adapted battery pack charging current
• Charger switches to compensation charge: to conserve the capacity, the battery pack is charged for 1 second every 45 seconds with 2.5 ampere.
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.

Specifications:

• Battery voltage:12 - 36 V
• Mains voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz

Metabo KFS 30 - 690mm Cross Cutting Rail 629015000

Features:

• Mobile, compact solution for angle-precise cross cuts directly at the application site, ideal on the roof or on mounted workpieces
• Can be coupled with the Metabo circular saws KS 18 LTX 66 BL, KS 18 LTX 57, KS 66 FS, KS 85 FS
• Angle cuts up to 60° click positions at standard angles
• The integrated return mechanism brings the saw back into the starting position after the cut
• Easy coupling with the circular saw thanks to quick closure
• Splinter protection reduces breakout when sawing
• Adhesive coating for safe, non-slip surface contact as well as protection of the workpiece surface

Specifications:

• Overall Length: 690mm
• Cutting Length: 300mm
• Weight: 1400g

Compatible Tools:

• Metabo KS 18 LTX 66 BL - 18V 165mm Cordless Brushless Circular Saw Skin 611866850
• Metabo KS 18 LTX 57 - 18V 165mm Cordless Circular Saw 601857850
• Metabo KS 85 FS
