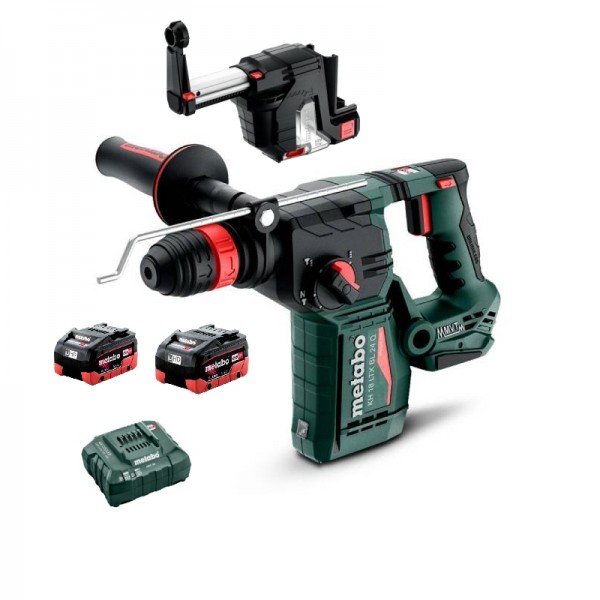

Metabo KH 18 LTX BL 24 Q SET ISA HD 5.5 K(AU60171400) - 18V 24mm Cordless Brushless SDS-Plus Hammer Drill Kit

Includes:

• 1 x Metabo KH 18 LTX BL 24 Q - 18V Cordless Brushless SDS-Plus Hammer Drill Skin 601714850
• 1 x Metabo ISA 24 - Dust Extraction Unit FOR KH 18 LTX BL 24 Q 631357850
• 2 x Metabo 5.5 LiHD - 18V 5.5Ah LiHD Battery Pack 625368000
• 1 x Metabo ASC 55 - 12-36 V Air Cooled Charger 627047000
• 1x Metabo metaBOX 185 XL Case

Features:

• Very lightweight, compact cordless hammer with brushless motor for low-fatigue drilling in any working position
• Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
• Dust-free drilling with compact dust extraction ISA 24 (accessory sold separately)
• Combination hammer with 3 functions: hammer drilling, drilling and chiselling
• Metabo VibraTech (MVT): working, also continuously, in a low-fatigue manner whilst protecting the user's health
• Metabo Quick: fast, tool-free chuck for working with SDS-plus and straight shank drill bits
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Electronic soft start for precise spot-drilling
• Double safety when the drill bit jams: No kick-back thanks to the mechanic decoupling plus ultra-fast sensor-controlled shutdown
• LED work light for optimum view of the drilling site

Specifications:

• Voltage: 18V
• Maximum Single Blow Energy: 2.2j
• Maximum Impact Rate: 4750bpm
• Drill Diameter Capacity:
  • Concrete with Hammer Bits: 24mm
  • Masonry with Core Bits: 82mm
  • Steel: 13mm
  • Soft Wood: 30mm
• No-Load Speed: 0-1280rpm
• Bit Retainer: SDS-Plus
• Vibration:
  • Concrete Drilling: 13.4m/s²
  • Chiseling: 9.1m/s²
• Sound Pressure Level: 90dB(A)
• Sound Power Level: 101dB(A)
• Dimensions(L x W x H): 357mm x 96mm x 230mm
• Weight(Skin): 3kg

Metabo ISA 24 - Dust Extraction Unit FOR KH 18 LTX BL 24 Q 631357850

Suitable for:​ Metabo KH 18 LTX BL 24 Q

Features:

• Extremely light and compact dust extraction for dust-free drilling in concrete, stone and masonry
• Simple, tool-free installation to the cordless hammer KH 18 LTX BL 24 Q
• Ideal for working overhead or in areas sensible to dust
• Health-friendly working with HEPA filter for smallest dust particles
• Precise setting for different drilling depths and drill bit lengths
• Tool-free replaceable suction head with low-wear brushes
• 3 Second delay to extract the remaining dust from the drill hole
• Transparent collection container can be emptied easily, e.g. for 160 bores Ø 6 / 40 mm
• 100% Drilling performance with active dust extraction thanks to being driven by own motor

Specifications:

• Drill Ø: 5 - 16 mm // 3/16 - 5/8 "
• Maximum drill length: 160 mm / 6 5/16 "
• Rated input power: 65 W
• Weight:1.1 kg / 2.4 lbs

Metabo 5.5 LiHD - 18V 5.5Ah LiHD Battery Pack 625368000

Features:

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation
• Ultra M technology: Intelligent battery management for long-lasting battery packs with a 3 year guarantee
• Patented “AIR COOLED“ charging technology
• Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
• Processor-controlled charge and discharge management
• Capacity display with almost no self-discharge
• Capacity display with almost no self-discharge
• One battery pack for everything. 100% compatibility with all 18 V machines and chargers of the CAS partners: www.cordless-alliance-system.com

Specifications:

• Battery pack voltage: 18 V
• Battery pack capacity: 5.5 Ah

Metabo ASC 55 - 12-36 V Air Cooled Charger 627047000

Features:

• Monitored charging with microcontroller
• Battery diagnosis
• Charge time approximately 30 minutes at 1.5 Ah
• "AIR COOLED" function
• For charging all Li-Power Compact, Li-Power Plus, Li-Power Extreme battery packs
• For charging all Li-Ion and LiHD slide-on battery packs (12 V - 36 V) with adapted battery pack charging current
• Charger switches to compensation charge: to conserve the capacity, the battery pack is charged for 1 second every 45 seconds with 2.5 ampere.
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.

Specifications:

• Battery voltage:12 - 36 V
• Mains voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz
