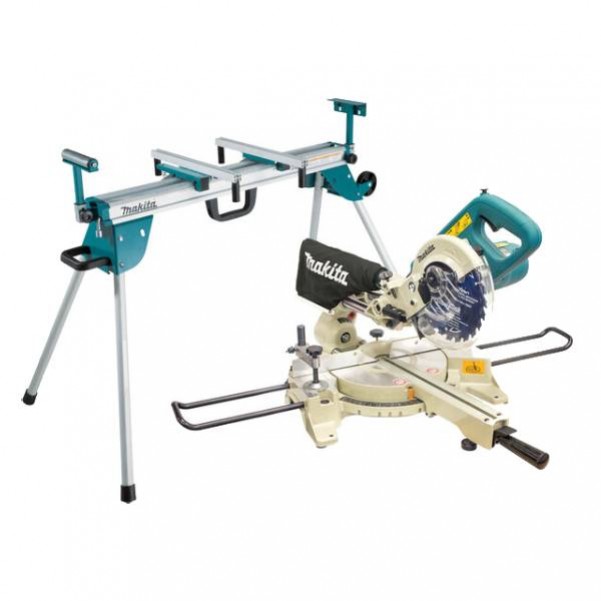

Makita LS0714-AWST06 - 190mm Slide Compound Saw Skin & Mitre Saw Stand Combo Kit
Kit Includes:
- Makita LS0714 - 1010W 190mm (7-1/2") Slide Compound Mitre Saw
- Makita DEBWST06 - WST06 2.5m Folding Legs Mitre Saw Stand
SetUp Data:
- Dimensions (sent as 2 cartons)
- Carton1: 74 x 48.5 x 43
- Carton 2: 117 x 28 x 27cm
- Weight
- Carton 1: 18.2kg
- Carton 2:16.5kg
- Standard Accessories
- Blade (B-15257)
- Vertical Vise (1225718)
- Socket Wrench (782223-9)
- Triangular rule(762001-3)
- Dust Bag (122523-9)
- 2 x Holders (322312-4)
Makita LS0714 - 1010W 190mm (7-1/2") Slide Compound Mitre Saw
Features:
- Four steel, two-stage, slide arms on linear bearings.
- Massive 300mm width of cut.
- 1,010W motor.
- Light construction.
- Suitable for fit-outs, flooring, multi-level sites and roofing.
- Common point positive mitre and bevel angle stops.
- Bevel cuts up to 45° left or 5° right.
Specifications:
- Blade Diameter - 190mm
- Continuous Rating Input - 1,010W
- Max. cutting capacity:
- At 45° - 52x212mm
- At 90° - 52x300mm
- With 20mm wood packed fastened to rear fence at 90° - 60x265mm
- Net Weight - 12.6kg
- No Load Speed - 6,000rpm
- Overall Length - 430x670x458mm
- Power Supply Cord - 2m
Makita DEBWST06 - WST06 2.5m Folding Legs Mitre Saw Stand
Features:
- Compact and lightweight aluminum tubular design for job site portability; weighs only 15.3kg.
- Material support extensions extend to 2550mm for cutting efficiency
- Transport castors and dual handles allow for easy transportation around the job site. (It is not recommended to transport the mitre saw on the stand)
- Tool-less adjustable mitre saw bracket levers for easier installation/adjustment/removal of saw
- Mounting brackets (from WST07)
Specifications:
- Max Length (Fully Extended): 2550mm
- Dimensions (L x W x H) (Non Extended): 1150mm x 750mm x 850mm/ Foot Print / Standing
- EPTA Weight (Without Saw): 15.3kg
- Standard Equipment
- Box wrench 13 / Hex wrench 5
- Hex bolt M8x65 x8
- Flat washer x8
- Spring washer x8
- Spacer plates for DLS714 / LS0714
