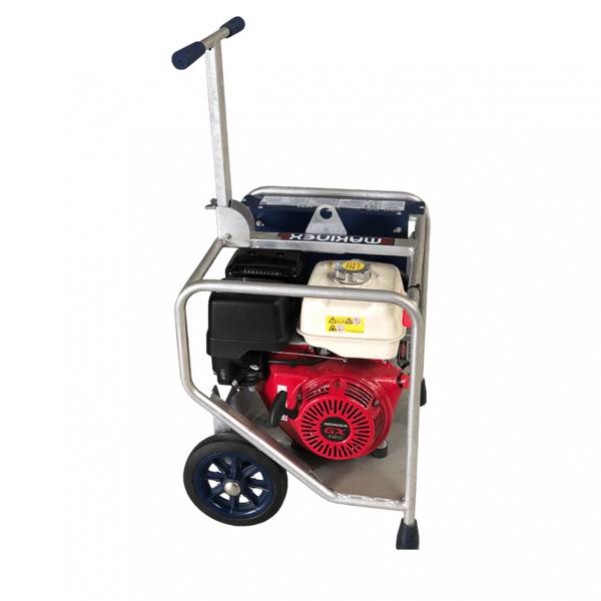

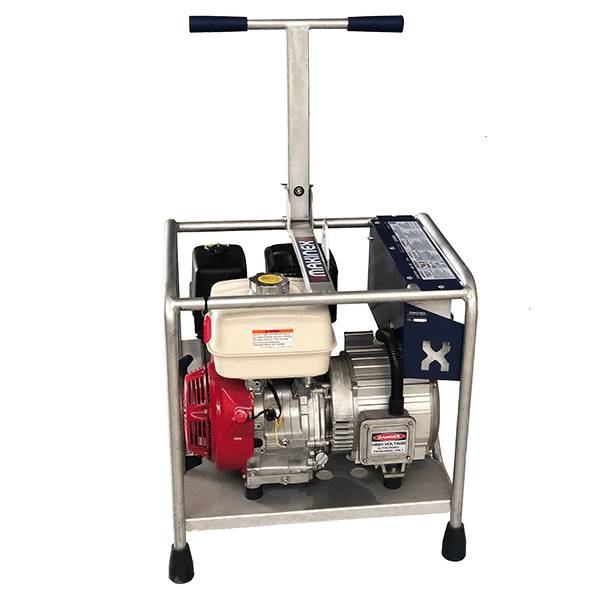

Makinex GEN-10P-AU-240-20 - 8kW 10kVA 3-Phase Petrol Generator
Freight:
As this is a large heavy item, please send us an email or call us at(07) 3326 1555 for a more accurate shipping quote and any special shipping requirements.
Delivery:
This item is more than 130kg, please ensure you have a lifting device to unload it. Otherwise, please order a Hydraulic Tail Lift Service in the “Add Optional Accessories” section. Thanks.
Features and Benefits:
- Challenges on the Job
- Waiting for electrician to hook up 3-phase power
- Getting the required power close to your work
- Lifting heavy generators on and off vehicles
- Moving generators around a job site easily
- Solution Benefits
- Light, portable 10kVA 240V/415V 3-phase generator
- 15% more power than competitors using same engine
- 3-phase and single phase outlets on same machine
- Power multiple medium-duty tools at the same time
- High frequency and induction load gear compatible
- Fold down handle makes it easy to move and store
- Large wheels for maneuverability around job site
Specifications:
- Voltage: 240V Single Phase; 415V Three Phase
- Frequency: 50HZ
- Max output: 8,000W / 10kVA
- Rated output: 6,400W
- Rated power factor: 0.8
- Max Amps single phase: 15A @ 240V
- Max Amps three phase: 11A @ 415V 3Θ
- Sockets provided: 2 x 15A single phase + 1 x 20A 3 phase sockets both with RCBO protection
- Dry weight: 100kg
- Noise level (7m): No load - 72 50% load - 76DB 100% load - 78DB
- Engine type: Single cylinder air cooled petrol
- Engine model: Honda gx390
- Starting system: Pull start
- Displacement: 389cc
- Fuel economy: 2.4 L/H @ 50% load
- Fuel tank: 6.1L
- Dimensions: 598mm(L) x 609mm(W) x 1162mm(H)
Documents:
Video:
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
