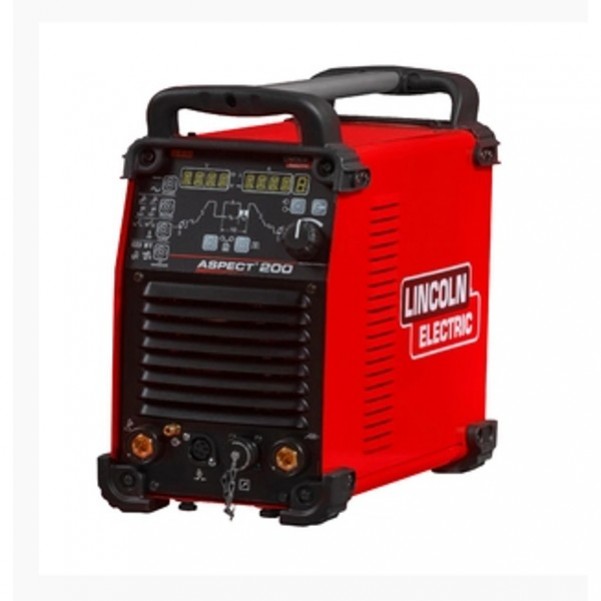

Lincoln K14189-2G - ASPECT 200 Single Phase AC/DC TIG Welding Package

Lincoln K14189-2G - ASPECT 200 Single Phase AC/DC TIG Welding Package

The Aspect® 200 welder has TIG AC & DC functions (four wave shapes, pulse, adjustable balance and offset) making it ideal for critical AC or DC TIG welding applications. It offers a simple control panel with bright digital display and an innovative control system from the torch. It can be simply changed to a water cooled unit by adding the COOL ARC® 24 water cooler

Features:

  • Superb arc performance: Excellent HF ignition, stable & fast arc, minimum current 2A
  • Advanced TIG AC & DC Functions: Four wave shapes, pulse, adjustable balance and offset, innovative and simple control panel, AC auto setting
  • Generator compatible: ideal for site use
  • Cellulosic capability
  • Bright digital display: easy set up buttons, 9 memories, new control from the TIG torch
  • Energy efficient: 1 phase buck-boost circuit for energy saving
  • Robust design: Potted PCB’s, True HD design (special protection for use in harsh conditions
  • Best aluminium welding performance

Specifications:

  • Primary Voltage: 115/230V/1Ph +/- 15%
  • Current Range (A): 2-200
  • Rated Output:
    • 200A@35%
    • 130A@100%
  • Fuse Size (A) (slow): 16A
  • Effective Consumption (A): 16
  • O.C.V (V DC): 107
  • Weight (kg): 23
  • Dimensions WxLxD (mm): 419 x 246 x 506mm
  • Protection Class: IP23

Includes:

  • 1 x  TIG Torch
  • 1 x Work Lead Return
  • 1 x Flowmeter

Optional Accessories:

  • GeneralK14147-1Remote control - hand 15m
  • GeneralK14148-1Extension for Hand remote control 15m
  • GeneralK14190-1Water cooler COOL ARC® 24
  • GeneralW000010167Freezcool cooling liquid for torches (9.6 l) - T°- 27°C
  • GeneralK14191-1Cart 24
  • GeneralW000011139Kit 35C50 - 300A- 35 mm² - 4m

Gun Options:

  • GunW000278398-2TIG welding torch PROTIG 30 NG S - 5M
  • GunW000278399-2TIG welding torch PROTIG 30 NG S - 8M
  • GunW000278402-2TIG welding torch PROTIG 10W NG S - 5M
  • GunW000278403-2TIG welding torch PROTIG 10W NG S - 8M
