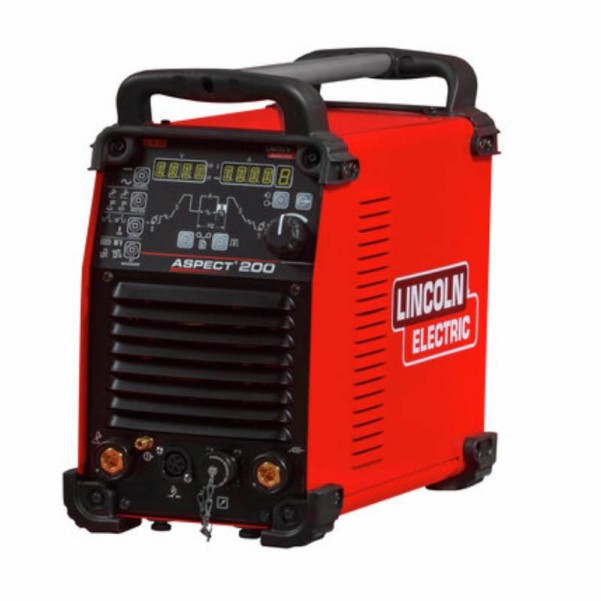

Lincoln K14189-2 - ASPECT 200 Single Phase 240V AC/DC TIG Welder
The Lincoln Aspect 200 AC/DC TIG welder has advanced TIG AC & DC Functions (Four wave shapes, Pulse, adjustable Balance and Offset) making it ideal for critical AC or DC TIG welding applications. It offers a simple control panel with bright digital display and an innovative control system, from the torch*. It can be simply changed to a water cooled unit by adding the COOL ARC 24 Water Cooler.
Features:
- Superb arc performance. Excellent HF ignition, stable and fast arc, minimum current 2A
- Advanced TIG AC and DC Functions. Four wave shapes, Pulse, adjustable Balance and Offset, innovative and simple control panel,
- AC auto setting
- Generator compatible. Ideal for site use
- Cellulosic capability
- Bright digital display. Easy set up buttons, 9 memories, new control from the TIG torch
- Energy efficient. 1 phase buck-boost circuit for energy saving
- Robust design. Potted PCB’s, True HD design (special protection for use in harsh conditions)
- Best aluminium welding performance
Specifications:
- Input Power: 240V/1Ph/50-60Hz
- Fuse size(A): 16A
- Output range(A): 2-200
- Rated output 200A@35% / 130A@100%
- Processes: Stick, TIG Pulse, TIG HF, Lift TIG
- Protection Class: IP23
- Generator Compatible: =9 kVA (peak maximum 380V)
- Dimensions(mm): 419H x 246W x 506D
- Weight (kg): 23
