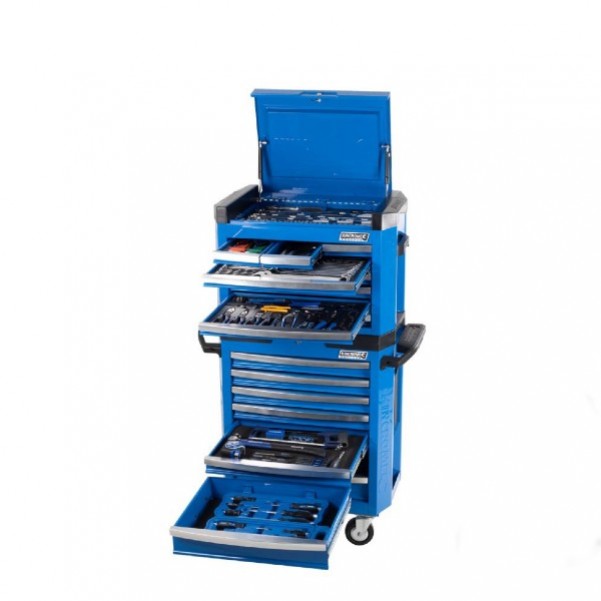

Kincrome P1805 - 242 Piece 15 Drawer Contour Workshop Kit

Limited Stock!

Freight:

This item is a heavy and large item, freight might vary from a different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:

This is a heavy item more than 100 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

Features:

• 97 Piece LOK-ON™ Sockets and Accessories EVA Tray
• 36 Piece Hex Key EVA Tray
• 30 Piece Combination Spanners EVA Tray
• 15 Piece Pliers & Riveter EVA Tray
• Heavy Duty Hack Saw
• Folding Utility Knife
• Xtenda Tape Measure 8m
• Ball Pein Hammer 24OZ
• Adjustable Wrench 250mm (10”)
• Lock Grip Plier 250mm (10”)
• 4 Piece Mini Hook & Pick Set
• 33 Piece Security Bit Holder Set
• 6 Piece Precision Screwdriver Set
• 12 Piece ‘Go Through’ Screwdriver Set
• 6mm Hex Bit Holder 1/4” Drive

Includes:

TOP TRAY - EVA567T 97 Piece LOK-ON™ Sockets and Accessories EVA Tray

Metric Sockets LOK-ON™:

• 10 Sockets 1/4” Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
• 12 Sockets 3/8” Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
• 19 Sockets 1/2” Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets LOK-ON™:

• 9 Sockets 1/4” Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2”
• 7 Sockets 3/8” Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4”
• 15 Sockets 1/2”Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4”

24 LOK-ON™ Socket Accessories:

1/4” Square Drive:

• Ratchet Handle Reversible Male
• Universal Joint
• Flex Handle 150mm (6”)
• Extension Bar 65mm
• Extension Bar 165mm
• Extension Bar 265mm

3/8” Square Drive:

• Ratchet Handle Reversible Male
• Universal Joint
• Flex Handle 200mm (8”)
• Extension Bar 70mm
• Extension Bar 175mm
• Extension Bar 275mm
• Adaptor 3/8”Female x 1/4”Male
• Adaptor 3/8”Female x 1/2”Male
• Spark Plug Socket 14mm (9/16)
• Spark Plug Socket 16mm (5/8)
• Spark Plug Socket 21mm (13/16)

1/2” Square Drive:

• Ratchet Handle Reversible Male
• Universal Joint
• Flex Handle 375mm
• Extension Bar 95mm
• Extension Bar 155mm
• Extension Bar 280mm
• Adaptor 1/2” Female x 3/8” Male

EVA Tray Measurements: 570mm x 460mm x 30mm

DRAWER 1 - EVA61T 36 Piece Hex Key EVA Tray

Ball Point Hex Key Set Long Series 9 Piece Imperial:

• 1/16” x 14 x 90mm, 3/16” x 28 x 160mm, 5/64” x 16 x 100mm, 1/4” x 32 x 180mm, 3/32” x 18 x 112mm, 5/16” x 36 x 200mm, 1/8” x 20 x 126mm, 3/8” x 40 x 224mm, 5/32” x 25 x 140mm

Ball Point Hex Key Set Long Series 9 Piece Metric:

• 1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm

Tamperproof TORX® Set Long Series 9 Piece:

• T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm

TORX® Set Long Series 9 Piece:

• T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

EVA Tray Measurements: 130mm x 395mm x 30mm

DRAWER 2 - EVA558T 30 Piece Combination Spanners EVA Tray
Metric Combination Spanners:

• 17 Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24

Imperial Combination Spanners:

• 13 Combination Spanners: 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1

EVA Tray Measurements: 540mm x 395mm x 30mm
DRAWER 3 - EVA562T 15 Piece Pliers & Riveter EVA Tray

• X-Force Combination Pliers 200mm (8”)
• X-Force Diagonal Cutting Pliers 200mm (8”)
• X-Force Long Nose Pliers 200mm (8”)
• Multi-Grip Pliers 250mm (10”)
• Mini Bolt Cutter 200mm
• Compact Hand Riveter
• Nut Riveter
• Automatic Wire Stripper
• Deluxe Crimping Wire
• Combination Circlip Pliers Set 5 Piece
• Straight Cut Tin Snips

EVA Tray Measurements: 540mm x 395mm x 30mm

LOOSE ITEMS

• Heavy Duty Hack Saw
• Folding Utility Knife
• Xtenda Tape Measure 8m
• Ball Pein Hammer 24OZ
• Adjustable Wrench 250mm (10”)
• Lock Grip Plier 250mm (10”)
• 4 Piece Mini Hook & Pick Set

AWL: 129mm, Pin Remover: 115mm, L hook: 115mm, V hook: 125mm

• 33 Piece Security Bit Holder Set

1/4”(F) x 1/4”(M) Magnetic bit holder
3 MORTORQ® Bits: #6, #8 & #10mm
4 Spanner Bits: 4, 6, 8 & 10mm
4 Tri-wing Bits: 1, 2, 3 & 4
6 Hexagonal Security Bits: 2, 2.5, 3, 4, 5 & 6mm
6 Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32 & 5/64”
9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T35 & T40

• 6mm Hex Bit Holder 1/4” Drive
• 6 Piece Precision Screwdriver set

Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm
Phillips: No.0, No.1

• 12 Piece ‘Go Through’ Screwdriver Set

6 Screwdrivers - Blade:
3.2mm x 75mm, 6mm x 38mm - Hex 13mm Shaft,
5mm x 75mm - Hex 11mm Shaft,
6mm x 100mm - Hex 13mm Shaft,
8mm x 150mm - Hex 15mm Shaft,
9.5mm x 200mm - Hex 15mm Shaft

6 Screwdrivers - Phillips:
No.0 x 75mm, No.2 x 38mm - Hex 13mm Shaft,
No.1 x 75mm - Hex 11mm Shaft,
No.2 x 100mm - Hex 13mm Shaft,
No.3 x 150mm - Hex 15mm Shaft,
No.4 x 200mm - Hex 15mm Shaft

Specifications:

• Drawers: 15
• Size: 29"
• Colour: Blue
• Tray Type: Ethylene-Vinyl Acetate (EVA)
• Tool Chest Measurements: 745 x 475 x 485MM
• Tool Trolley Measurements: 745 x 475 x 940MM
• Castor Size: 5" x 2"
• Finish: UV Stabilised Powder Coat
• Material: Heavy Gauge Steel
