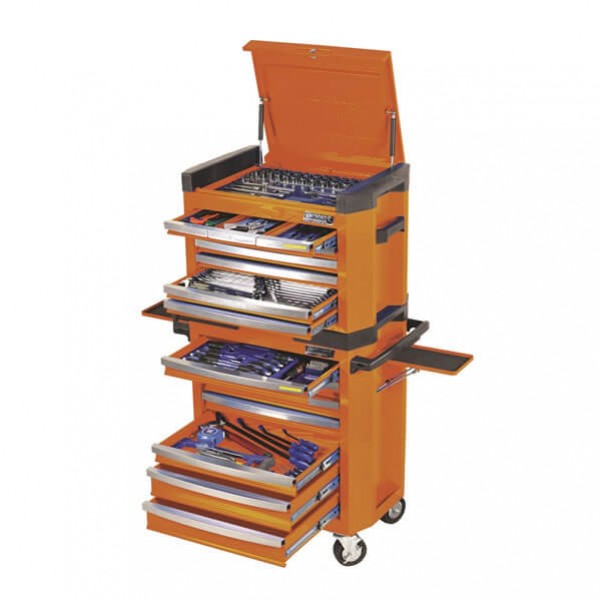

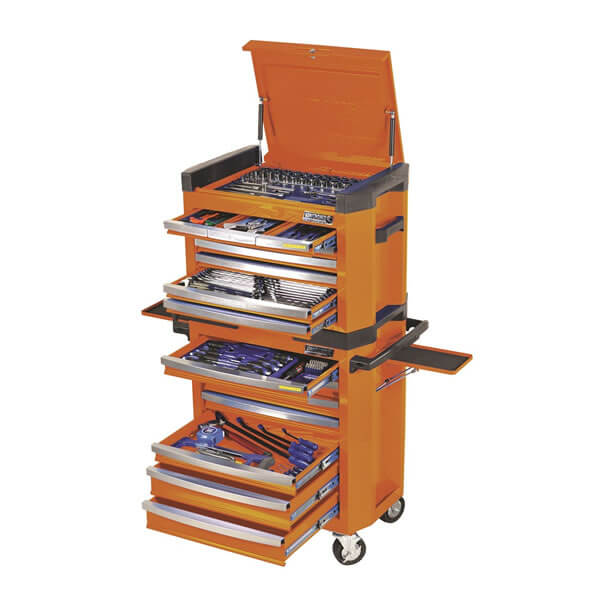

Kincrome K1503O - 1/4, 3/8 & 1/2" 228 PCE Square Drive Contour Tool Workshop

The Kincrome K1503O has been discontinued Please check for a similar product https://www.cltoolcentre.com.au/tool-kit-1393

Freight:

This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:

This is a heavy item more than 30 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

Contents:

TOP TRAY - EVA60T - EVA Tray LOK-ON™ Sockets & Accessories 89 Piece

METRIC SIZES:
• 9 LOK-ON™ Sockets 1/4" Square Drive:
4, 5, 6, 7, 8, 9, 10, 11, 12mm
• 10 LOK-ON™ Sockets 3/8" Square Drive:
9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm
• 19 LOK-ON™ Sockets 1/2" Square Drive:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm
• IMPERIAL SIZES:
• 9 LOK-ON™ Sockets 1/4" Square Drive:
3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
• 7 LOK-ON™ Sockets 3/8" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
• 15 LOK-ON™ Sockets 1/2" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"
• 13 Socket Accessories:
• 1/4" Square Drive
Ratchet Handle Reversible Male
Spinner Handle 150mm (6")
1/4 Male x 3/8" Female Adaptor
LOK-ON™ Extension 165 mm (6")
• 3/8" Square Drive
Ratchet Handle Reversible Male
LOK-ON™ Extension 70mm (3")
LOK-ON™ Extension 175mm (6")
3/8 Female x 1/2" Male Adaptor
• 1/2" Square Drive
Ratchet Handle Reversible Male
LOK-ON™ Universal Joint
LOK-ON™ Extension 155mm (5")
LOK-ON™ Extension 280 mm (10")
LOK-ON™ Flex Handle 375mm (15")
Sliding T-Handle 250mm (10")
1/2" Female x 3/8" Male Adaptor
• 2 Spark Plug Sockets
16mm (5/8) x 3/8" Square Drive
21mm (13/16) x 1/2" Square Drive
EVA Size - 570mm x 460mm x30mm

DRAWER 1 - EVA61T - 36 Piece CONTOUR Hex & TORX Key EVA Tray

• Ball Point Hex Key Set Long Series 9 Piece AF
1/16" x 14 x 90mm, 3/16" x 28 x 160mm, 5/64" x 16 x 100mm, 1/4" x 32 x 180mm, 3/32" x 18 x 112mm
5/16" x 36 x 200mm, 1/8" x 20 x 126mm, 3/8" x 40 x 224mm, 5/32" x 25 x 140mm
• Ball Point Hex Key Set Long Series 9 Piece Metric
1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm
• Tamperproof TORX Set Long Series 9 Piece
T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm
• TORX Set Long Series 9 Piece
T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm
EVA Size - 160mm x 395mm x30mm

DRAWER 2

• Locking Pliers Curved Jaw 250mm (10")
• Adjustable Wrench Chrome 200mm (8")
• Adjustable Wrench Chrome 300mm (12")

DRAWER 3 - EVA63T - 4 Piece CONTOUR Pliers & Cutter EVA Tray

• Combination Pliers 200mm (8")
• Diagonal Cutting Pliers 200mm (8")
• Long Nose Pliers 200mm (8")
• Multi-Grip Pliers 250mm (10")
EVA Size - 160mm x 395mm x30mm

DRAWER 4 - EVA64T - 30 Piece CONTOUR Combination Spanner EVA Tray - Mirror Polish

• 17 Metric Combination Spanners
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
• 13 Imperial Combination Spanners
1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"
EVA Size - 540mm x 395mm x30mm

DRAWER 5

• ''Go Through'' Screwdriver Set 12 Piece
6 Screwdrivers - Blade:
3.2mm x 75mm
6mm x 38mm - Hex 13 Shaft
5mm x 75mm - Hex 11 Shaft
6mm x 100mm - Hex 13 Shaft
8mm x 150mm - Hex 14 Shaft
9.5mm x 200mm - Hex 16 Shaft
6 Screwdrivers - Phillips:
No.0 x 75mm
No.2 x 38mm - Hex 13 Shaft
No.1 x 75mm - Hex 11 Shaft
No.2 x 100mm - Hex 13 Shaft
No.3 x 150mm - Hex 14 Shaft
No.4 x 200mm - Hex 16 Shaft
• Precision Screwdriver Set 6 Piece
Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm
Phillips: No.0, No.1
• Magnetic Bit Driver
• Security Bit & Holder Set 33 Piece 1/4" Hex Driver

DRAWER 6

• Ball Pein Hammer Hickory Shaft 16oz (454gm)
• Hacksaw Frame Heavy Duty 12" (300mm)
• Utility Knife
• Tape Measure Metric 8 Metre
• Pry Bar Set 4 Piece
• Mini Hook & Pick Set 4 Piece
Tool Chest CONTOUR 8 Drawer
• Tool Chest measurements: 745 x 475 x 485mm
• Internal Drawer measurements:
Small: 160 x 395 x 40mm
Large: 540 x 395 x 40mm
Top Area: 574 x 460 x 110mm
Tool Trolley CONTOUR 7 Drawer
• Tool Trolley measurements: 745 x 475 x 940mm
• Internal Drawer measurements:
Small: 540 x 395 x 50mm
Large: 540 x 395 x 95mm
Side Tray: 175 x 300 x 12mm

Technical Specifications:
