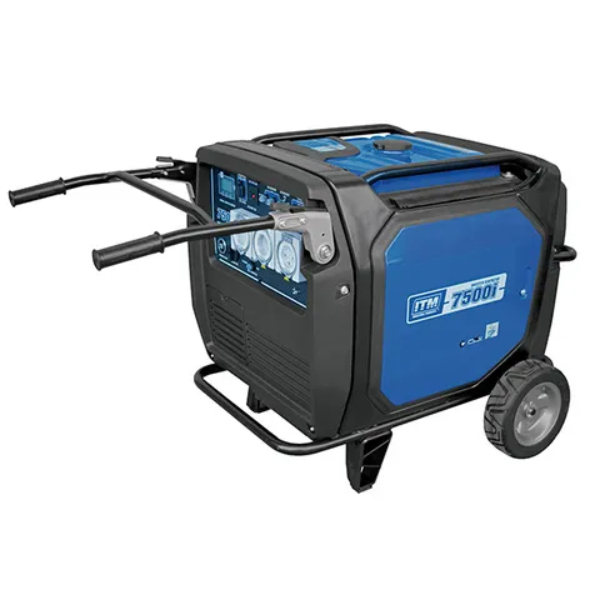

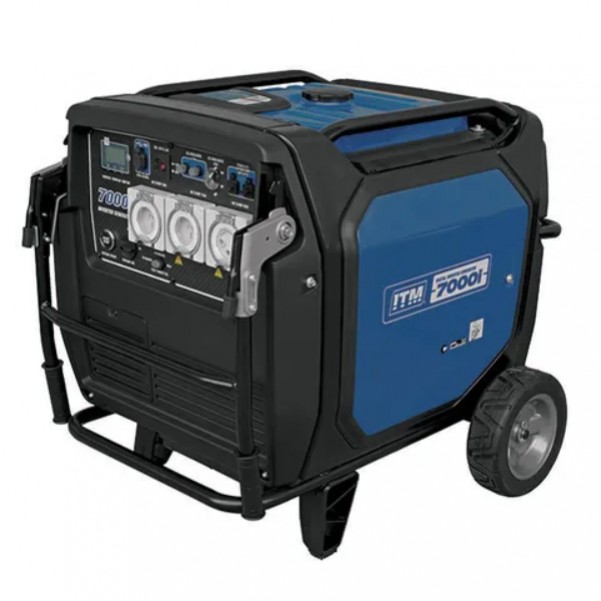

ITM TM523-7000 - 7000W 25L Peak with Electric Start Petrol Inverter Generator
Freight:
This item is a heavy and large item, freight might vary from a different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 100 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
ITM inverter generators are equipped with an industrial quality engine with a sophisticated 3 way cooling system to lower the running temperature and extend engine life. A large volume muffler increases fuel efficiency and reduces noise and a permanent magnet inverter with ESC (Engine Smart Control) intelligently controls rpm to further reduce noise and fuel consumption giving you the ideal pure sine wave generator for the busy tradesman.
Whether you take them onto the jobsite to power corded tools & machinery, use it to power your appliances and devices on your weekend camping trip or at home in emergency power outages, ITM inverter generators also have the added feature of parallel connection capability, this means that when you join any two ITM inverter generators together in parallel connection, you get the full combined rated power output whenever you need it. Keep your options open and add power as and when your demand changes.
ITM inverter generators have the power you need to keep your essential services going and are a reliable source of power in a sturdy, convenient and compact design.
Features:
- Engine Smart Control (ESC)
- 3 in 1 Multi-function Control
- Integrated bluetooth function (via APP) allows user to start and stop the generator from a mobile phone
- Push button electric start
- Robust Construction
- Low oil sensor
- Meets EPA & strict Californian pollution standards
- 2 Year Warranty
Specifications:
- Max Watts: 7,000
- Rated Watts: 6,500
- Noise : 52dB - 59dB
- Outlets: 2 x 15A & 1 x 30A, 2x USB
- Fuel Tank: 25L
- Running Time - 50% Load: 10 hours
- Digital multimeter display
- Starting System: Push button electric / Recoil
- Bluetooth Control: Start/Stop from mobile phone via APP
- Dimensions: 96cm Long x 76cm Wide x 77cm High
- Net Weight: 130Kg
COMMON FORMULAS:
- 1KW = 1000W
- 1KVA = 800W
- 1HP = 750W
- 1KVA = 4Amps (Single phase)
- Watts = Volts x Amps
- Amps = Watts/Volts
General Rule #1
Compressors and other induction motors (e.g. Fridges, freezers and air conditioners) will require a minimum of 3 times the HP of the motor to the KVA to start. For example, an air conditioner with 1HP motor will require 3KVA every time that motor cycles in.
General Rule #2
Common Applications – Welders & Compressors:
- 120amp welder or 8CFM compressor requires a minimum of 5KVA
- 140amp welder or 10CFM compressor requires a minimum of 6KVA
- 160amp welder or 12CFM compressor requires a minimum of 7KVA
- 180amp welder or 14CFM compressor requires a minimum 8KVA
General Rule #3
To work out the generator size required, simply add the wattage of all appliances or construction tools likely to be used at the same time. Don’t forget to allow for any induction motors. Use the Common formulas above to calculate your minimum KVA required.
