Holemaker HMPRO55 - 240V 55mm x 75mm PRO55 Magnetic Base Drilling Machine
Freight:
This item is a heavy and large item, freight might vary from a different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 100 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
Features:
- New generation machines with the latest technology and design.
- New Rigid Frame Design
- Provides increased life of cutting tools.
- New Extra Large 165mm Stroke
- Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.
- Magnetic Field Shape Control (MFSC)
- Provides maximum holding power on thin materials.
- Lightweight & Powerful
- The new generation Holemaker machines are lighter and more powerful than other brands on the market.
- European made machine

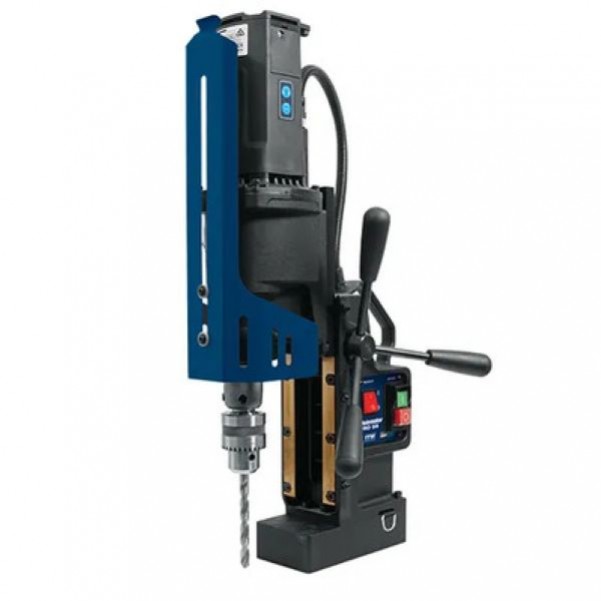

- Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
- Industrial 2-speed gearbox

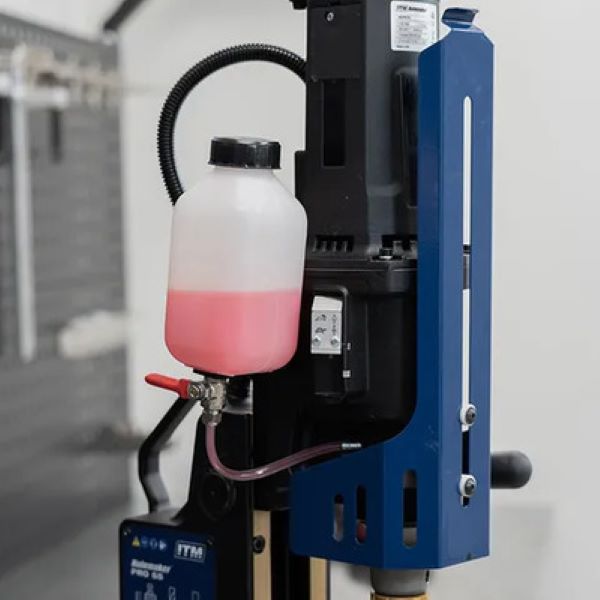

- Through spindle coolant system, with an external side mounted gravity feed coolant tank
- The feed handles can be placed on either the left or right hand side, for increased versatility
- Smart magnet technology to ensure sufficient magnetic adhesion
- Integrated cutter guard for increased user safety
- Supplied in a blow mould plastic carry case
- Grub screw arbor system, which fastens positively onto Holemaker cutters
- *13mm drill chuck SA70102 available separately
Specifications:
- Capacity (Diameter): 55mm
- Capacity (Depth): 75mm
- Capacity (Twist Drills): #2 Morse Taper 18mm
- Motor Power: 1100 Watt
- Input Power: 1200 Watt Single Phase 240V
- Speed: 2 Speed 200 / 400rpm
- Weight: 15.5kg
- Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
- Stroke: 165mm
- Height (Min. / Max.): 409 / 574mm
