Hafco TB-70 - 415V 2200W Digital Control Electric Pipe & Tube Bender w/ Stand T607
Freight:
As this is a heavy and large item, please send us an Email or call us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping requirement.
Delivery:
This item is more than 240 kg, please make sure you have a lifting device to unload it. Otherwise, please order a Hydraulic Tail Lift Service in the “Add Optional Accessories” section. Thanks.
PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.

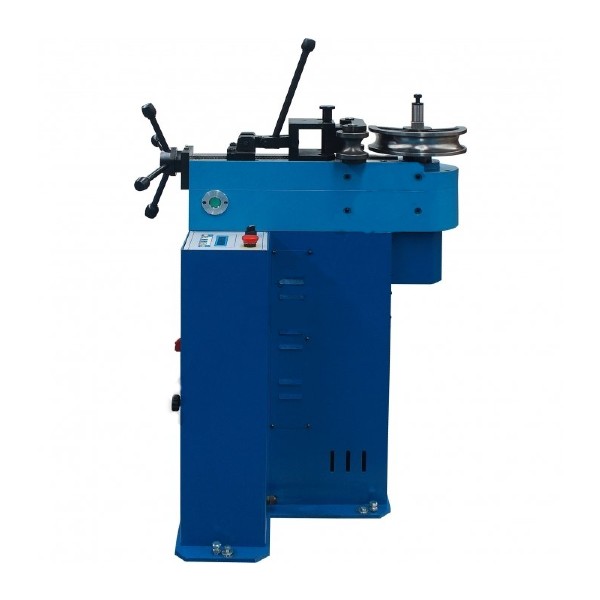

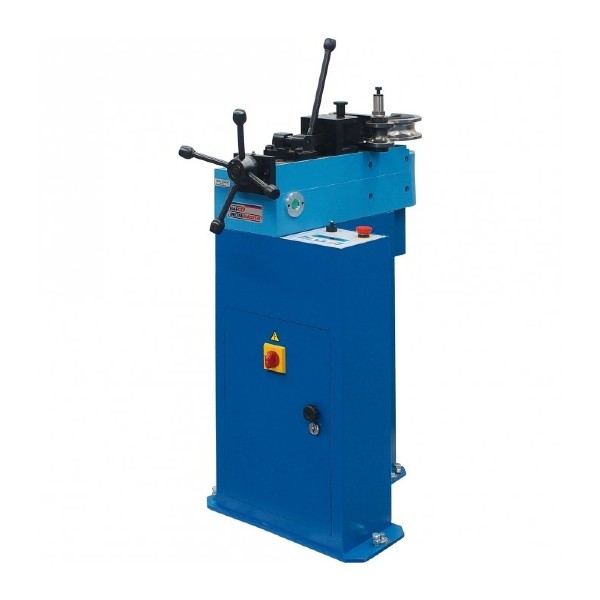

TB-70 is the bigger brother to the TB-60 and is still an accurate and powerful electric bending machine able to bend larger diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements.
This compact & versatile pipe and tube bending unit represents great value for a minimal investment.
Features:
- Cast iron body tube bender
- 2.2kW 415V motor

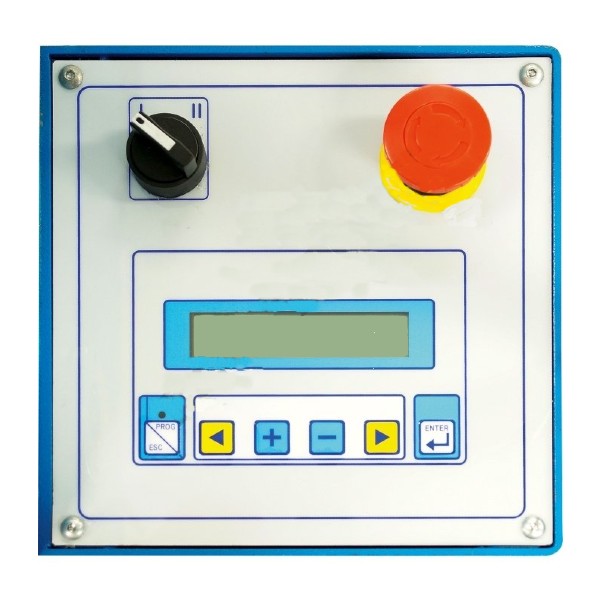

- User friendly digital control panel with microprocessor, allowing users to set the required bending angles.
- Capable of storing 50 programs with 9 bends per program
- Electric brake and automatic return to stop
- Designed to bend tube and pipe with constant bending radius without deformation

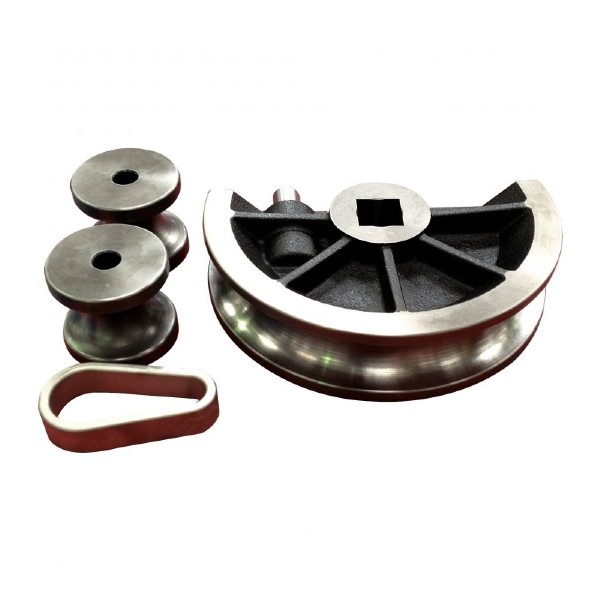

- Each pipe former consists of a die former and a follow rollers to suit each size
- 210º maximum bending angle
Specifications:
- Material: Pipe & Tube
- Material Section: Round
- Machine: Electric
- Round Pipe Range (NB) - Mild Steel: Ø1/2" - Ø2"
- Round Tube Range (OD) - Mild Steel: Ø25.4 - Ø51
- Round Pipe (NB) x Wall Capacity - Mild Steel: Ø2" x 1/8"
- Round Tube (OD) x Wall Capacity - Mild Steel: Ø51 x 3
- Round Tube (OD) x Wall Capacity - Aluminium: Ø51 x 5
- Round Tube (OD) x Wall Capacity - Copper, Brass: Ø51 x 4
- Round Tube (OD) x Wall Capacity - Stainless Steel: Ø51 x 2
- Centre Line Radius - Maximum (CLR): 4 x Former Diameter
- Centre Line Radius - Minimum (CLR): 3 x Former Diameter
- Pipe Formers Included: 1/2", 3/4", 1" & 1-1/4" NB Pipe
- Angle Capacity: 0 - 210º
- Motor Power: 2.2 kW / 3 hp
- Voltage / Amperage: 415 V
- Shipping Dimensions: 860 x 615 x 1145 mm
- Nett Weight: 240 kg
Includes:
- 1 x Floor stand

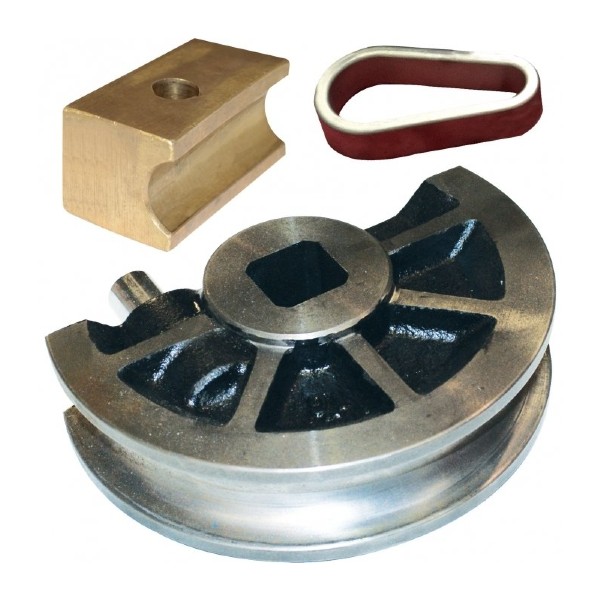

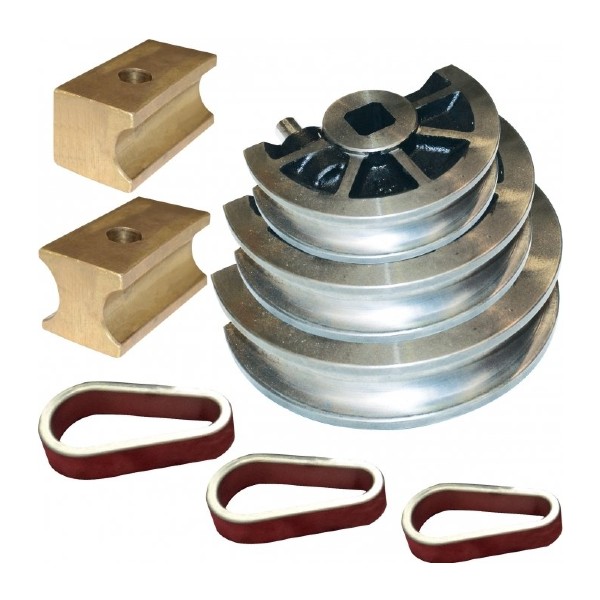

- Pipe Formers:
- Ø1/2" NB x 59.2mm Centreline radius
- Ø3/4" NB x 80mm Centreline radius
- Ø1" NB x 100.1mm Centreline radius
- Ø1-1/4" NB x 127.4mm Centreline radius
