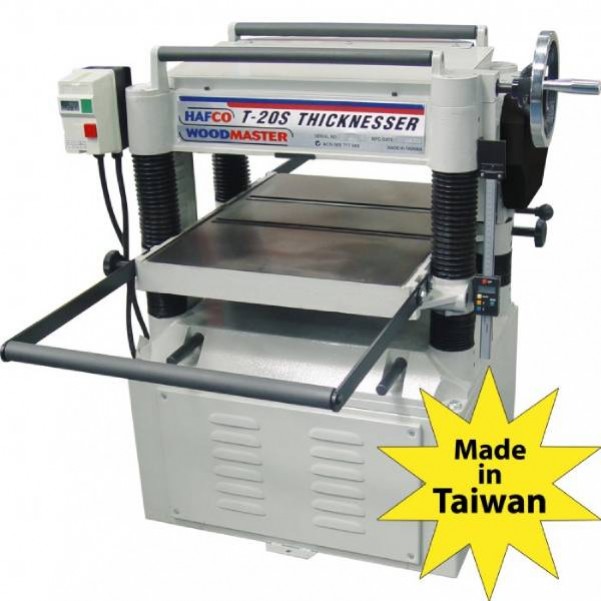

Hafco T-20S - 508 x 200mm 415V 3.75kW 5hp Spiral Head Cutter Thicknesser W415S
Freight:
This item is a heavy and large item, freight might vary from a different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 420 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.
Features:
- Heavy cast iron machine suits professional workshop
- 4 spirals on cutter head with 92 pre-loaded carbide inserts
- Carbide inserts incorporate 4 cutting edges for reduced vibration
- Dynamically balanced cutting head
- Cutting speed 5000 rpm
- 2 speed feed rollers with pressure adjustment
- 125mm dust chute
- Digital Height Gauge (Includes LR44 battery)
- Industrial contactor switch with overload protection
- Anti kick back fingers
- Left & right table locking dials
- Heavy duty four post design with protective concertina covers
- Same model sold for over 20 years
- Quality Taiwanese Manufacture
Specifications:
- Order Code: W415S
- Material Width Capacity: 508 mm
- Material Height Capacity: 200 mm
- Minimum Material Length: 190 mm
- Maximum Depth of Cut:6mm @ 508mm wide
- Cutter Type: Carbide Inserts - Spiral
- Quantity of Cutters (No. x Type): 92 x Inserts
- Cutter Block Diameter: 80mm
- Cutter Block Speed: 5000rmp
- Quantity of Spirals (No.): 4
- Length of Table: 650mm
- Length of Table with Extensions/Rollers: 1470mm
- Feed Speed: 4.8 / 6 m/min
- Dust Outlet Diameter: 125mm
- Motor Power: 3.75kW / 5hp
- Voltage / Amperage: 415 V
- Floor Space (W x D x H): 1000 x 1470 x 1030 mm
- Nett Weight: 420 kg
Includes:

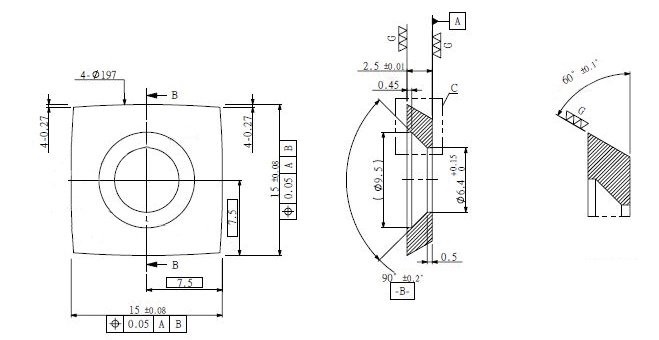

- Includes 92 Carbide Inserts - Dimension Shown Below.
