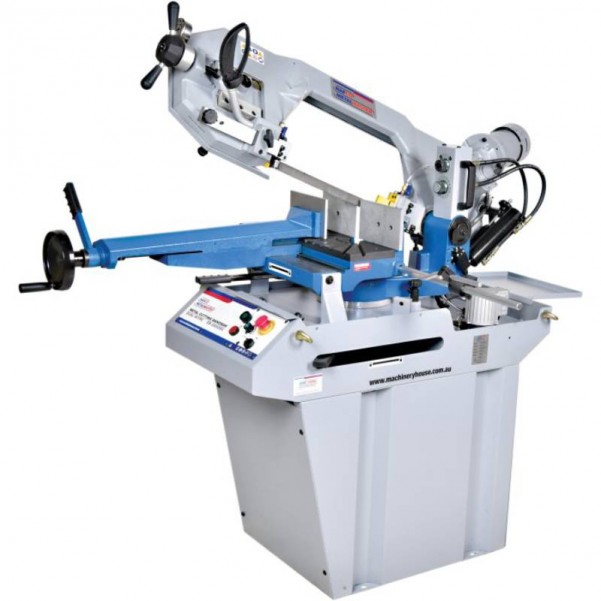

Hafco EB-285DSV (B064V) - 240V 1.5kW Swivel Head-Dual Mitre Metal Cutting Band Saw

Hafco EB-285DSV (B064V) - 240V 1.5kW Swivel Head-Dual Mitre Metal Cutting Band Saw



Freight:

This item is a heavy and large item, freight might vary from different locations, please contact us by Email or phone at (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
This machine is a heavy machine more than 250 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

265 x 200mm (W x H) Rectangle Capacity

Electronic Variable Blade Speed 20-90mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control

Features:

  • 265 x 200mm rectangular capacity
  • Electronic variable blade speed, 240V motor
  • Larger cutting capacity than conventional cold saws
  • Swivel head double mitre cut to 45º right & left, 60º right
  • Quick action lock/release lever for swivel head
  • Heavy-duty gear drive system
  • Control panel mounted on a stand for easy access
  • Heavy-duty hydraulic down-feed cylinder
  • Ball-bearing blade guides ensure minimal blade clearance wear and increase blade life due to less friction
  • Blade cleaning brush incorporated into blade guide system
  • Quick-action lock/release vice
  • Adjustable length stop for repetition cutting
  • Unique sliding vice design for dual mitre operation
  • Coolant system for cutting efficiency and blade life
  • Material support roller for long stock
  • User-friendly blade tension system with gauge
  • Vibration-free, low-noise operation ensures clean & high-precision cuts
  • Machine stand with integrated coolant tank as standard

Specifications:

  • Operation Type: Swivel Head - Dual Mitre

  • Round at 90º: 235mm

  • Round at 45º: 190mm

  • Round at 60º: 120mm

  • Square at 90º: 225mm

  • Square at 45º: 185mm

  • Square at 60º: 120mm

  • Rectangle (W x H) at 90º: 265 x 200 mm

  • Rectangle (W x H) at 45º: 180 x 200 mm

  • Rectangle (W x H) at 60º: 115 x 120 mm

  • Coolant System: Yes

  • Table Working Height: 990mm

  • Cutting Head Beam Type: Manual

  • Cutting Head Beam Return: Manual Return

  • Cutting Head Down Feed Control: Adjustable Hydraulic

  • Vice Clamping Fixture: Manual - Quick Action

  • Blade Steps / Speeds: Variable 20-90 m/min

  • Blade Size (L x W x T): 2645 x 27 x 0.9 mm

  • Motor Power: 1.5 kW / 2 hp

  • Voltage / Amperage: 240 V / 10 amp

  • Nett Weight: 260 kg
