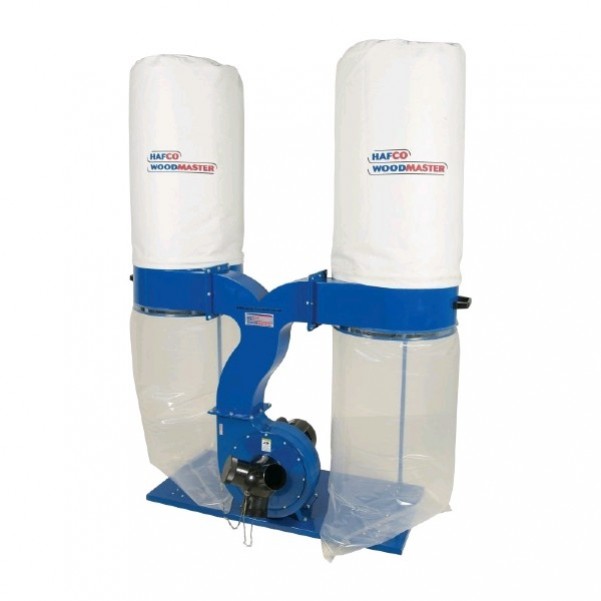

Hafco DC-7 - 240V 2300cfm LPHV System Dust Collector W329
Freight:
This item is a large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Overview
LPHV = Low Pressure High Volume System
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.
Features
- 2300cfm air flow suction
- Ø100mm triple inlets
- Portable on wheels
- Quick-action clamps on filter & collection bags
- 5 Micron fine filter bag
- Ideal for multiple extraction applications
- 2.25kW / 3hp 240V motor
- Magnetic safety switch
Specifications:
- Airflow: 2300cfm
- LPHV - Low Pressure High Volume: Yes
- HPLV - High Pressure Low Volume: No
- Inlets / Diameter (No. / mm): 3 x Ø100
- Motor Power (kW / hp): 2.25 / 3
- Voltage (V / amp): 240 / 10
- Floor Space (W x D x H): 1550 x 740 x 1930mm
- Shipping Dimensions (L x W x H): 1160 x 560 x 570
- Nett Weight: 51kg
