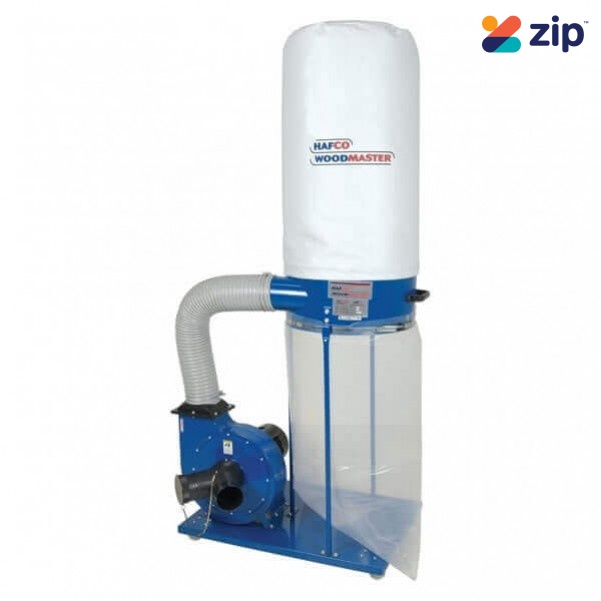

Hafco DC-3 - 240V 1200cfm 100mm LPHV System Dust Collector W394
Overview:
LPHV = Low Pressure High Volume System
The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.
Features:
- 1200cfm air flow suction
- Portable on wheels
- Ø100mm twin inlets
- Quick-action clamps

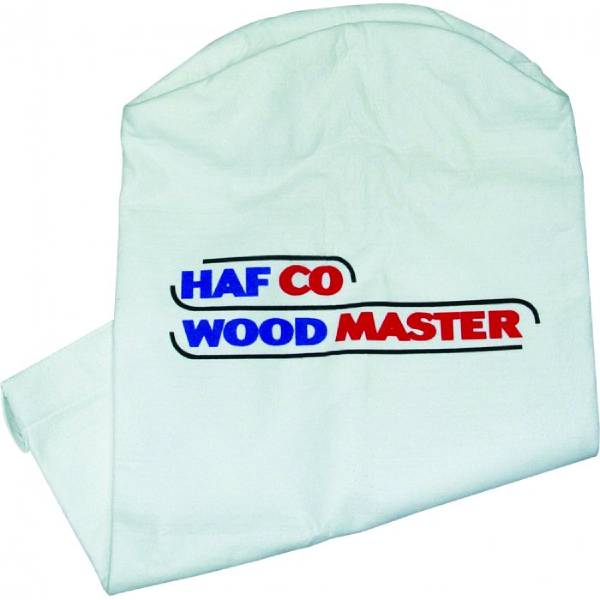

- 5 Micron fine filter bag
- 1.5kW / 2hp 240V motor
Specifications:
- Type: Dust Collector
- Airflow: 1200 CFM
- LPHV - Low-Pressure High Volume: Yes
- HPLV - High-Pressure Low Volume: No
- Inlets / Diameter: No. 2 x Diameter 100mm
- Motor Power: 1.5kW / 2hp
- Voltage: 240V / 10amp
- Floor Space (W x D x H): 1000 x 700 x 1950mm
- Nett Weight: 42kg
