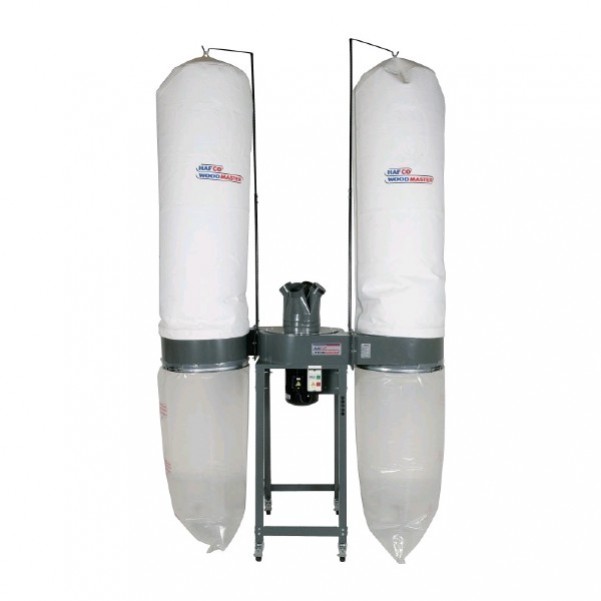

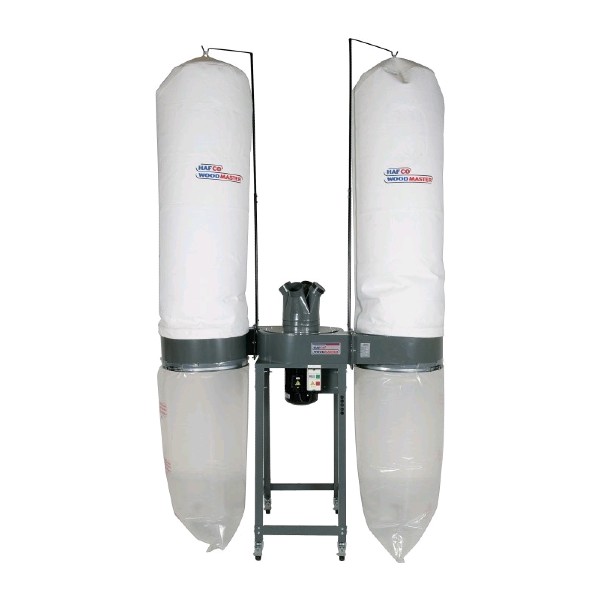

Hafco DC-100 - 415V 3860cfm LPHV System Industrial Dust Collector W3315

Hafco DC-100 - 415V 3860cfm LPHV System Industrial Dust Collector W3315

This item is no longer available. Please check the similar product: Hafco DC-90 - 415V 3200cfm LPHV System Industrial Dust Collector W331



Freight:

This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:

This is a heavy item more than 148kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.



Overview

LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.

Please Note: Due to the enormous centrifugal force generated by the heavy duty 5hp motor, all 4 wheels are required to be locked prior operating dust collector.

Features

  • 3860cfm air flow suction
  • 4 x Ø100mm extraction inlets
  • Portable on swivel wheels with brakes
  • Quick-action top & bottom bag clamps
  • DOL safety start/stop switch
  • Ø600mm filter drums
  • 2.5 micron filter bags
  • 1800mm high filter bags
  • 1200 high collection bags
  • Ø432mm impeller blade
  • 3.75kW / 5hp 415V motor
  • MADE IN TAIWAN

Specifications:

  • Airflow: 3860cfm
  • LPHV - Low Pressure High Volume: Yes
  • HPLV - High Pressure Low Volume: No
  • Inlets / Diameter (No. / mm): 4 x Ø100
  • Motor Power (kW / hp): 3.75 / 5
  • Voltage (V / amp): 415
  • Floor Space (W x D x H): 2100 x 850 x 3500mm
  • Shipping Dimensions (L x W x H): 1070 x 740 x 760mm
  • Nett Weight: 148kg
