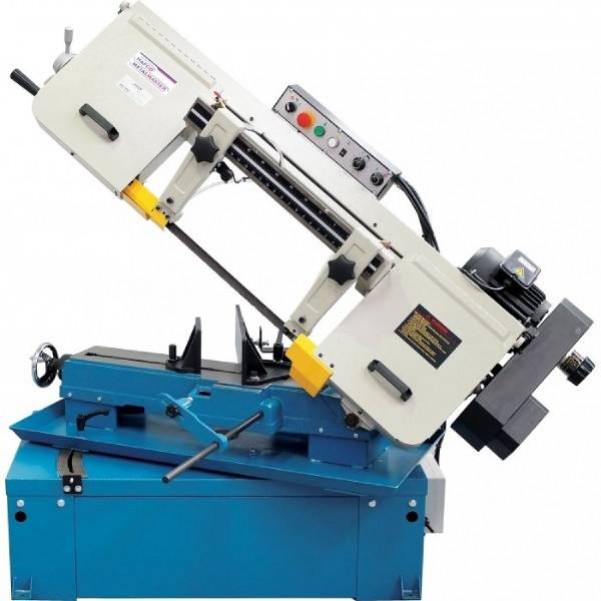

Hafco BS-10LS - 415V 468 x 250mm (W x H) Rectangle Capacity Swivel Head Metal Cutting Band Saw B021
Freight:
This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 153 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.
Features:
- 468 x 250mm (W x H) rectangular capacity
- Swivel head for easy angle cutting without moving material
- Adjustable hydraulic feed cutting rate for multiple applications
- Mitre cuts to 45º using swivel head
- Built-in coolant system for maximum cutting efficiency
- Laser line guide assist in lining up material positioning
- Limit switch stops machine when cut is complete
- Control panel located on top of arm for easy use
- Combination roller bearing & Carbide blade guides
- Coolant system with flow control valve
- Large mitre scale - easy to read
- Cast iron frame with heavy duty fabricated base
- Quick action material clamping system
- Adjustable blade roller guides provides accurate cutting
- Variable speed drive system changes blade speed from 18-102mpm
- Adjustable length stop for repetition cutting
- Automatic electric cut-out switch
- Wire wheel brush to clean swarf from blade
- Heavy-duty gearbox drive
- Heavy-duty 1.5kW 415V fully enclosed fan-cooled motor
Specifications:
- Operation Type: Swivel Head
- Round at 90º: 250mm
- Round at 45º: 235mm
- Square at 90º: 250mm
- Square at 45º: 235mm
- Rectangle (W x H) at 90º: 468 x 250mm
- Rectangle (W x H) at 45º: 250 x 240mm
- Coolant System: Yes
- Table Working Height: 570mm
- Cutting Head Beam Type: Manual
- Cutting Head Beam Return: Manual Return
- Cutting Head Down Feed Control: Adjustable Hydraulic
- Vice Clamping Fixture: Manual
- Blade Steps / Speeds: Variable 18-102 (m/min)
- Blade Size (L x W x T): 3090 x 27 x 0.9mm
- Motor Power: 1.5 / 2 (kW / hp)
- Voltage / Amperage: 415 (V / amp)
- Nett Weight: 380 (kg)
