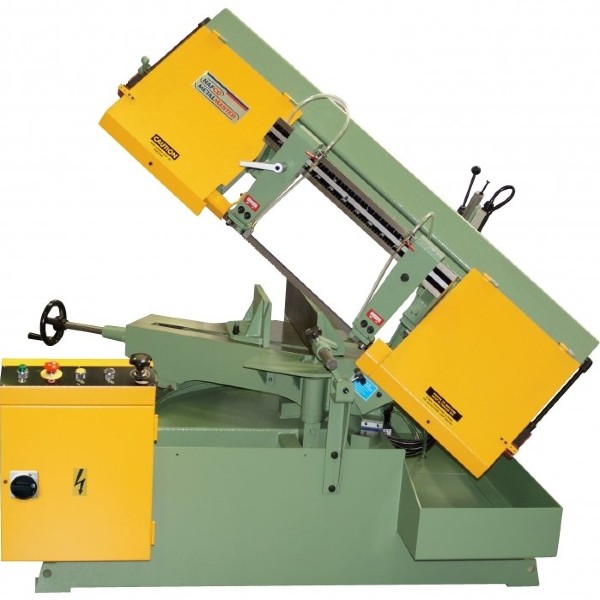

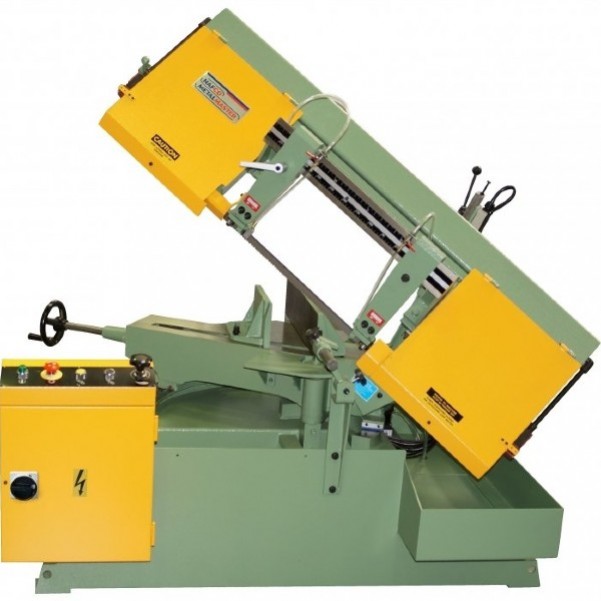

Hafco BS-10AS - 415V 1.5kW Semi - Automatic, Swivel Head Metal Cutting Band Saw B029
4 Cutting Speeds, Mitre Cuts Up To 45º & Hydraulic Arm Rise
Freight:
This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.
Delivery:
This is a heavy item more than 610 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.
PLEASE NOTE: For 415V 3 Phase machines you will need to get an electrician to connect machine. Plug & lead not included.
Features:
-
400 x 230mm (W x H) rectangular capacity
-
Swivel head for easy angle cutting without moving material
-
Semi-automatic operation, machine returns to open height position after finishing the cutting process
-
Hydraulic operated system raising and lowering the cutting beam
-
Adjustable hydraulic feed cutting rate for multiple applications
-
Mitre cuts to 45º using swivel head
-
Built-in coolant system for maximum cutting efficiency
-
Adjustable 4-speed pulley drive system enabling 24-38-53-81mpm cutting speeds
-
Limit switch stops machine when cut is complete
-
Electric control panel mounted on base for quick operation
-
Combination roller bearing & carbide blade guides
-
Heavy duty cast Iron blade wheels
-
Large mitre scale - easy to read
-
Cast iron frame with heavy duty fabricated base
-
Adjustable blade roller guides provides accurate cutting
-
Adjustable length stop for repetition cutting
-
Wire wheel brush to clean swarf from blade
-
Heavy-duty gearbox drive
-
1.5kW / 2hp 415V motor
Specifications:
-
Operation Type: Swivel Head, Semi - Automatic
-
Round at 90º: 250mm
-
Round at 45º: 250mm
-
Square at 90º: 230mm
-
Square at 45º: 175mm
-
Rectangle (W x H) at 90º: 400 x 230 mm
-
Rectangle (W x H) at 45º: 205 x 155 mm
-
Coolant System: Yes
-
Table Working Height; 650mm
-
Cutting Head Beam Type: Semi-Automatic
-
Cutting Head Beam Return; Auto-Hydraulic Return
-
Cutting Head Down Feed Control: Adjustable Hydraulic
-
Vice Clamping Fixture: Manual
-
Blade Steps / Speeds: 24-38-53-81 m/min
-
Blade Size (L x W x T): 3352 x 27 x 0.9 mm
-
Motor Power: 1.5 kW / 2 hp
-
Voltage / Amperage: 415 V / 10 amp
-
Nett Weight: 610 kg
