Festool MSV-LR32 D8/25 - Domino 500 LR32 Centre Panel Connector 203169

Festool MSV-LR32 D8/25 - Domino 500 LR32 Centre Panel Connector 203169

Perfect furniture and cabinet connections faster

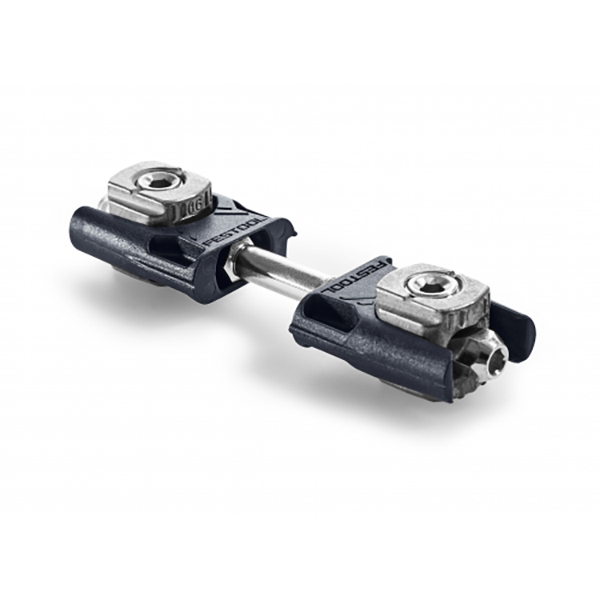

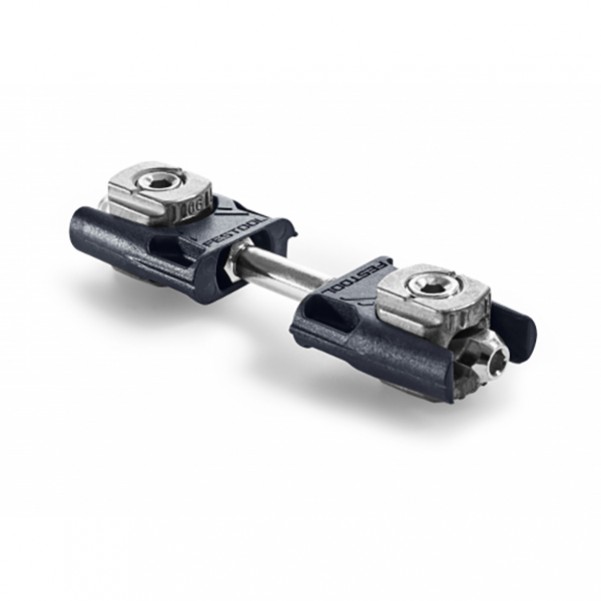

For use with the DOMINO DF 500 Joining Machine. DOMINO connector fasteners allow you to smoothly assemble and disassemble furniture panels and more with minimal time and effort. Festool's LR 32 adjustable shelving system allows quick and precise hole placement without ttime-consumingmeasuring and marking. The DOMINO LR32 Centre Panel Connector is positioned both in the cupboard panel in a 5 mm hole and the base of the structure with the use of the DOMINO DF 500 Joining Machine. The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own. The flush-screwed fixture elements protect each furniture component from being scratched. Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture. The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm. Creates 25 centre panel joints.

Includes:

  • 25 x Bolts with External Thread
  • 25 x Bolts with Internal Thread
  • 25 x Plastic Trays
  • 25 x Cross Anchors with Threaded Pins

Features:

  • Produce quick and easy joins:
    • All joints can be produced quickly and easily with the DOMINO DF 500 Joining Machine.
  • Work error free:
    • Produce a detachable corner joint easily. Use the drill template with a dust extractor to specify the exact position and depth of the drilled hole.
  • A solution for everything:
    • The DOMINO centre panel connector makes it possible to connect a series of adjustable-shelving holes spaced 32 mm apart with two bases at the same height. The connector fitting is screwed directly into the 5 mm adjustable shelving hole. The bases can then be attached.
  • Optimum Strength:
    • The connected metal dowel pins provide the join with optimum strength and ensure that the centre panel join has a high level of stability.
  • Different material thicknesses - No problem:
    • All material thickness between 18 mm and 28 mm can be machined effortlessly with the connectors.
  • Different coloured caps:
    • Caps are available in 4 different colours. Brown, Silver, White and Grey.

Compatible Tools:

  • DF 500 DOMINO Joining Machine Plus
  • DF 500 DOMINO Joining Machine Set
