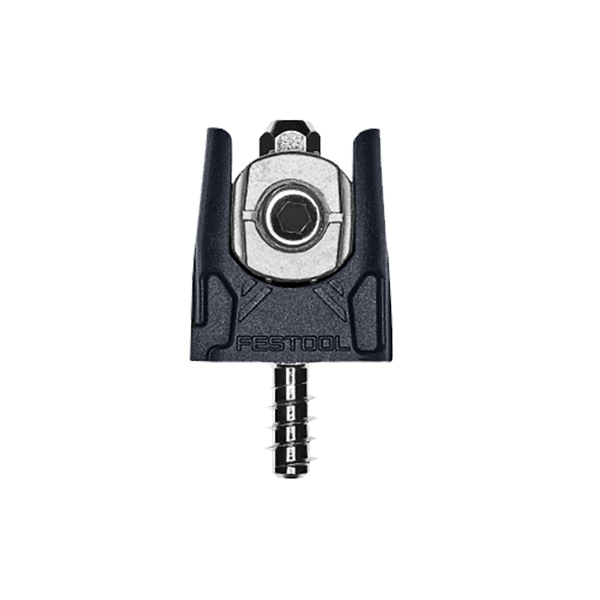

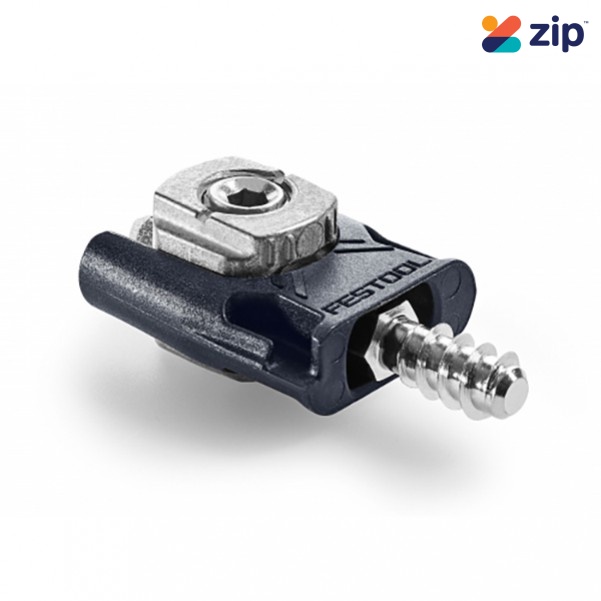

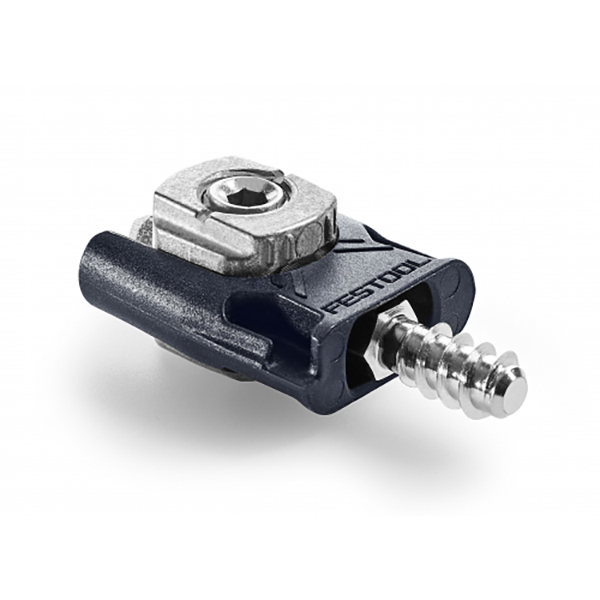

Festool KV-LR32 D8/50 - Domino 500 LR32 Corner Connector 203168
Perfect furniture and cabinet connections faster
For use with the DOMINO DF 500 Joining Machine. DOMINO connector fasteners allow you to smoothly assemble and disassemble furniture panels and more with minimal time and effort. Festool's LR 32 adjustable shelving system allows quick and precise hole placement without time consuming measuring and marking. The DOMINO LR32 Corner Connector is positioned both in the cupboard panel in a 5 mm hole and the base of the structure with the use of the DOMINO DF 500 Joining Machine. The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own. The flush-screwed fixture elements protect each furniture component from being scratched. Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture. The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm. Creates 25 centre panel joints.
Includes:
- 50 x Split Anchors
- 50 x Bolts with Euro Threads
- 50 x Plastic Trays
- 50 x Cross Anchors with Threaded Pins
Features:
- Produce quick and easy joins:
- All joints can be produced quickly and easily with the DOMINO DF 500 Joining Machine
- Simple, fast and precise:
- The DOMINO cabinet connector enables a flexible connection between a series of adjustable shelving holes spaced 32 mm apart and a cabinet base. The fitting is screwed directly into the 5 mm adjustable shelving hole and anchored in the cabinet base using a mortise hole.
- Work error free:
- Produce a detachable corner joint easily. Use the drill template with a dust extractor to specify the exact position and depth of the drilled hole.
- Be precise with a system:
- Set the stop on your DOMINO 500 to 37 mm and route perfect mortise holes in the cabinet base that fit with the 32 adjustable shelving holes.
- Different material thicknesses - No problem :
- All material thickness between 18 mm and 28 mm can be machined effortlessly with the connectors.
- Different coloured caps:
- Caps are available in 4 different colours. Brown, Silver, White and Grey.
Compatible Tools:
- DF 500 DOMINO Joining Machine Plus
- DF 500 DOMINO Joining Machine Set
