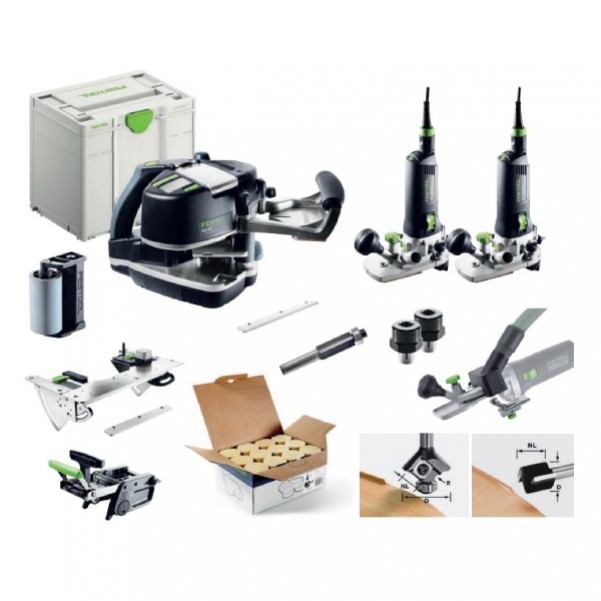

Festool F28731 - KA 65 CONTURO Edge Bander Perfect Edge Set 3 Pce Combo Kit

Includes:

• 1 x Festool KA 65-Plus - 240V 1200W CONTURO Edge Bander 576578
• 2 x Festool MFK 700 EQ/B-Plus - MFK 700 Laminate Trimmer with Brake in Systainer 577312
• 1 x Festool AP-KA 65 - KA 65 Conturo Adaptor Plate for KA65 Edge Bander for MFT Table 500175
• 1 x Festool KP 65/2 - Trimmer Accessory for KA 65 Edge Band up to 65mm 499896
• 1 x Festool ZR-KA 65 - Additional Roller for KA65 Edge Bander 499480
• 1 x Festool GP-MFT/3 KA65 15x - Guide Plate Set for use with KA 65 Edge Bander Stationary 500367
• 1 x Festool EVA NAT/48x for KA 65 - 48 Pack Adhesive Cartridge EVA Natural Carton 499812
• 1 x Festool FT 1.5 Degree for MFK 700 - Base Plate 1.5 Degree for Trimmers 495165
• 1 x Festool SZ-D 6.35 for OF 900/1000 - Clamping Collet 6.35mm for OF900,1000,1010 - MFK 700 OFK700 488761
• 1 x Festool HWD19/16S8OFK700 - HW Edge Trimming Cutter 491666
• 1  x Festool S8mm HW R2mm D28mm KL12.7mm OFK - Reversible Blade R2 Roundover Cutter 499809
• 1 x Festool Edge trimming cutter HW shank 8 mm - HW S8 D12,7/NL25 491027

Festool KA 65-Plus - 240V 1200W CONTURO Edge Bander 576578

Features:

• Straight, curved and mitred edges
• Mobile or stationary
• Wood, plastic, melamine
• For an even wider range of applications
• Unique cartridge gluing system
• Perfect quality
• Everything in view
• Always ready to use
• Perfect ergonomics
• Low heating
• Tight radii, long edges
• Trimming
• Routing
• Smoothing
• Sanding and polishing

Main Applications:

• Affixing wooden, plastic or laminated plastic edging to panel materials
• Possible to attach edging to simple rectangular components or more complex free forms
• Also as an addition to the machining centre, for affixing edging to complex free form and round elements
• Suitable for stationary use and small batches, straight edges, free form elements and gluing inclined edges, angle from 0-47°
• Suitable for mobile use, for rapidly reworking edges

Specifications:

• Feed Rate (metres per minute): 2 metres every 4 minutes
• Edge Height (mm): 18 mm - 65 mm
• Edge Thickness (mm): 0.5 mm - 3 mm
• Inner Radius (mm): > 50 mm
• Heating Time (minutes): 8 minutes
• Power Lead Type: Fixed Lead
• Power Source: Corded
• Power Consumption (W or kW): 1,200 W
• Motor Type: Brushed
• Melting Temperature (°): 100° - 210°
• Tool Weight (kg): 7.9 kg

Festool MFK 700 EQ/B-Plus - MFK 700 Laminate Trimmer with Brake in Systainer 577312

Features:

• Precise fine adjustment: The routing height can be adjusted accurately to a tenth of a millimetre. The lock prevents the router table from moving during operation and is easy to operate.
• Universal interface: By using the integrated interface, different router table modules can be used without the need for tools.
• Moving contact pad: The MFK 700 has an attachable base feeler bearing, ensuring results that are free from marks.
• Surface protection: The bench of the MFK 700 is inclined by 1.5° to protect the surface from damage. The slight inclination of the cutter prevents the surface from being milled off.
• Flush routing and rounding: The design of the router table on the MFK 700 incorporates an opening on the support base to accommodate the veneer overhang. Veneer or strips can be routed flush and rounded at the same time using the correct Festool cutter.
• Side stop with fine setting: The moveable stop jaws of the parallel side fence are installed optimally on the router and thus prevent it from tipping over. This makes perfect rebates and grooves very easy.
• Cutter replacement in seconds: With the MFK 700, cutter replacement is quick and easy. Actuate the spindle stop via the rocker.
• Clean and healthy work: The extractor connector is integrated directly in the router table – for optimum handling and a clear view of the workpiece.
• Flexible motor design: The right motor arrangement for every application: The motor can be installed horizontally or vertically on the router table.
• Quick device changeover: Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.

Main Applications:

• Edge router specially designed for flush trimming and rounding protruding edges
• Unique ball bearing guide brake ensures perfect, streak-free working results
• Possible to flush trim 0-45° inclined edges (depending on the cutter)

Specifications:

• Tool Weight (kg): 1.9kg
• No Load Speed (rpm): 10,000 rpm - 26,000 rpm
• Dust Extraction Connection Diameter (mm): 27mm
• Collet Diameter (mm): 6 mm - 8 mm
• Fine Height Adjustment Range (mm): 14mm
• Routing Width (mm): 32mm
• Power Lead Type: Plug-it Lead
• Power Source: Corded
• Power Consumption (W or kW): 720 W
• Motor Type: Brushed

Festool AP-KA 65 - KA 65 Conturo Adaptor Plate for KA65 Edge Bander for MFT Table 500175

Features:

• Adapter plate for using the KA 65 Conturo as a stationary machine with the MFT workbench. Mounting plate complete with additional roller and 15 guide plates.

Specifications:

• Height: 150 mm
• Length: 254 mm
• Width: 420 mm
• Swivel Range: 0° - 47°

Festool KP 65/2 - Trimmer Accessory for KA 65 Edge Band up to 65mm 499896

Features:

Trim protruding edging with the KP 65/2 Trimmer. Insert the edge band between the trimming blades, move the trimming machine up to the stop pin, position parallel to the workpiece and press the handles together, with minimal effort you now have flush trimming. The Trimmer has an ergonomic handle location for easy, effortless trimming, even on thick edging. The patented eccentric fine adjustment for precision impact trimming is perfect for final trimming of panel edges. A support base on both sides of the trimmer allows trimming of board edges on both the left and the right from above, with a perfect view of the workpiece. Band end joining for round tables and trimming of board edges (band end trimming) is possible with one tool. Ideal for trimming plastic edging with a height of 18 - 65 mm and a thickness of 0.5 mm - 2.0 mm and for trimming PVC, acrylic and thin wooden veneer edging.

Specifications:

• Edge Height : 18 - 65 mm
• Edge Thickness: 0.5 mm - 2.0 mm
• Trimming Height (mm): 65 mm
• Trimming Thickness (mm): 2 mm

Festool ZR-KA 65 - Additional Roller for KA65 Edge Bander 499480

• For affixing edging to tight curves and shaped parts
• Safe processing of thick and brittle veneered edges due to large bending radius of the edge. The roller offers additional pressure point for applying more pressure on the edge of the board when glued.

Technical data:

• Roll height    65 mm

Festool GP-MFT/3 KA65 15x - Guide Plate Set for use with KA 65 Edge Bander Stationary 500367

Guide Plate Set for KA 65 Edge Bander

Guide plates for guiding the workpiece safely and protecting the surface. Guide plates for attachment using chipboard screws or M4 screws included with the delivery replacement or extension guide plates for the stationary use of the edge bander with adapter plate AP-KA 65 in MFT (with perforated board KA 65,) or installed in a separate workbench.

Technical Data:

• Length : 255 mm
• Width : 31 mm
• Height : 6 mm

Festool EVA NAT/48x for KA 65 - 48 Pack Adhesive Cartridge EVA Natural Carton 499812

Features:

EVA universal adhesive with high melting point, also suitable for use on objects with a higher resistance to temperatures. Natural colour tone suitable for all types of decor. Affixing wooden, plastic or laminated plastic edging to panel materials.

Specifications:

• Diameter : 63 mm
• Height : 26 mm
• Processing temperature : 190 °C
• Colour: Natural
• Temperature Resistant (°): -10°C - +75°C
• Softening Range (°): 90°C

Festool FT 1.5 Degree for MFK 700 - Base Plate 1.5 Degree for Trimmers 495165

Replacement for the slight inclination of the base, which helps prevent damage to the workpiece surface. Save time not having to file the edge of your workpiece. Fine adjustment allows precise trimming of edge banding, accuracy avoids waste of material. Allows for use of bearingless bits in conjunction with feeler bearing set mounted to MFK 700 router.

Included :

• Trimmer Base
• Dust Extraction Hood

Festool SZ-D 6.35 for OF 900/1000 - Clamping Collet 6.35mm for OF900,1000,1010 - MFK 700 OFK700 488761

Designed for quick change over clamping collet to suit router cutter with a shank diameter of 6.35 mm.

Compatible with MFK 700, OFK 700, OF 900, OF 1000 and OF 1010 routers.

Specifications:

• Shank Diameter: 6.35 mm or 1/4 inch

Festool HWD19/16S8OFK700 - HW Edge Trimming Cutter 491666

Features:

• Edge-Trimming Cutter for OFK 700 Trimmer

• Carbide edge-trimming router bit

Specifications:

• D: 19mm
• NL: 16mm
• GL: 46mm

Festool S8mm HW R2mm D28mm KL12.7mm OFK - Reversible Blade R2 Roundover Cutter 499809

Cutter for rounding wood and plastic edges as well as solid wooden work pieces. Reversible carbide blade provides extreme precision, no re-sharpening required. Extremely economical due to long useful life. Reversible blades can be used 4 times and are easy to replace.

Specifications:

• Radius (mm): 2 mm
• Total Length (mm): 55 mm
• Cutting Length (mm): 3 mm
• Shank Diameter (mm): 8 mm
• Cutter Diameter (mm): 28 mm

Includes:

• 10 x Felt Pads

Festool Edge trimming cutter HW shank 8 mm - HW S8 D12,7/NL25 491027

Festures:

• Edge-Trimming Cutter, 8mm Shank
• Carbide edge-timming cutter with ball bearing guide
• Quantity in pack : 1
• Packaging : In Retail Packaging

Specifications:

• GL : 65 mm
