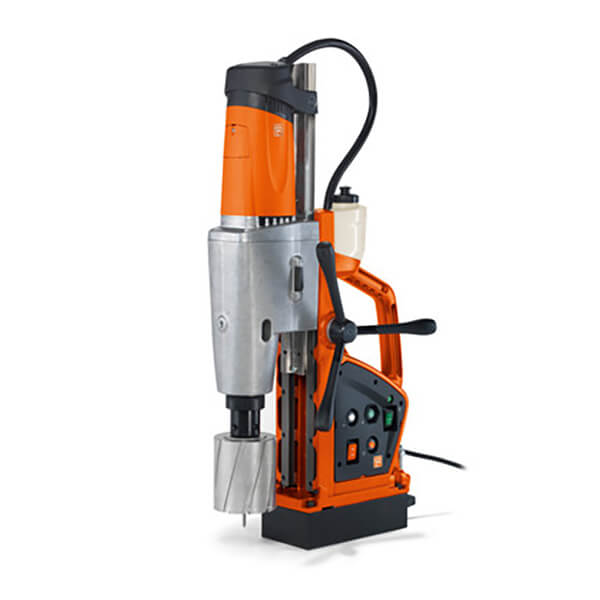

Fein KBU 110-4 M - 240V 1700W 110mm 4 Gear 2 Speed Universal Magnetic Core Drill 72706061061

Fein KBU 110-4 M - 240V 1700W 110mm 4 Gear 2 Speed Universal Magnetic Core Drill 72706061061

.

High-performance and powerful 4-speed universal magnetic core drill with forward/reverse running, MT4 tool mounting and maximum functionality for the toughest drilling jobs in the workshop.

Features:

  • FEIN 1700 W high-power motor with high torque for heavy-duty drilling work.
  • For tough use thanks to outstanding quality of workmanship and swivel-mounted motor cable protective hose.
  • Tool with extra large stroke range for all drilling work, such as core, twist and tap drilling, countersinking and reaming.
  • Mechanical 4-speed gearbox.
  • High magnetic holding force.
  • Torque support for high stability.
  • Tilt sensor.
  • Slipping clutch torque.
  • Convenient magnetic holding force display.
  • Speed reduction.
  • Reversible.
  • MT4 tool mounting.
  • Integrated coolant tank

Specifications:

  • Input:1 700 W
  • Output:850 W
  • Load speed in speed 1: 60 / 120 rpm
  • Load speed in speed 2: 90 / 170 rpm
  • Load speed in speed 3: 150 / 300 rpm
  • Load speed in speed 4: 230 / 430 rpm
  • Idling speed in speed 1: 100 / 190 rpm
  • Idling speed in speed 2: 160 / 290 rpm
  • Idling speed in speed 3: 270 / 500 rpm
  • Idling speed in speed 4:420 / 750 rpm
  • Tool Holder: M.T. 4
  • Carbide core drill bit max. diameter: 110mm
  • HSS core drill max. Ø: 80mm
  • Core drill, drilling depth max.100 mm
  • Twist drill max. Ø: 40 mm
  • Tapping: M 36
  • Countersinking max. Ø: 60 mm
  • Reaming max. Ø: 36 mm
  • Core drill holder: Weldon 32
  • Stroke: 280 mm
  • Total stroke range: 400 mm
  • Magnetic holding power: 23 000 N
  • Magnetic foot dimensions: 240 x 120 mm
  • Cable with plug: 4 m
  • Weight according to EPTA: 39 kg

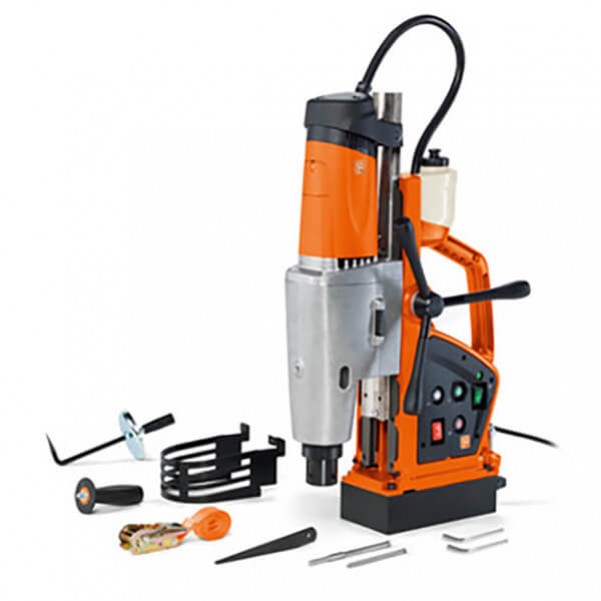

Includes:

  • 1 coolant tank
  • 1 safety strap with ratchet
  • 1 swarf hook
  • 2 centring pins, diameter of 6.35 x 125 mm and diameter of 7.98 x 184 mm
  • 1 contact guard
  • 1 drift key
  • 2 x 5 and 6 mm hexagon socket wrench
  • 1 additional handle
  • 1 case
