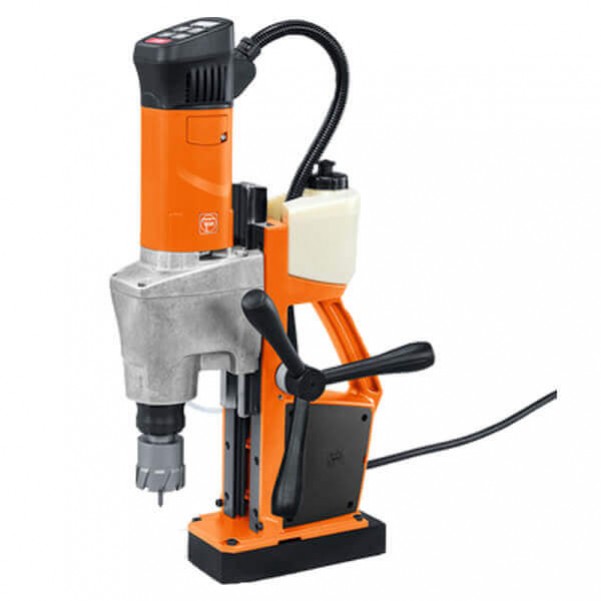

Fein KBM 50 Q - 1200W Up to 50mm 2 Speed Metal Core Drill 72704161060

No Longer Available.

Features:

Compact with high functionality for universal use on construction site and in the workshop.
Simple operating concept avoids mix-ups and can be clearly seen by the user.
Double drill motor guide for use with very large drilling tools.
Reversible rotation.
Electronic speed setting.
FEIN high-power motor with stable speed.
High magnetic holding force.
Convenient magnetic holding force display.
Integrated coolant tank.
Feed handwheel can be moved from one side to the other.

Specifications:

Carbide core drill bit max. diameter : 50 mm
HSS core drill max. Ø: 40 mm
Core drill, drilling depth max: 50 mm
Twist drill max. Ø: 16 mm
Tapping: M 16
Countersinking max. Ø: 31 mm
Reaming max. Ø: 16 mm
Input: 1200 W
Output: 640 W
1st gear: 130-260 rpm
2nd gear: 260-520 rpm
Core drill holder: QuickIN (3/4 in Weldon: AU,CA,US,UK)
Stroke145 mm
Total stroke range: 315 mm
Magnetic holding power: 12 500 N
Magnetic foot dimensions: 195 x 90 mm
Cable with plug: 4 m
Weight according to EPTA: 13.2 kg

Includes

1 case
1 coolant tank
1 lashing strap
1 swarf hook
1 centering pin
1 contact guard
