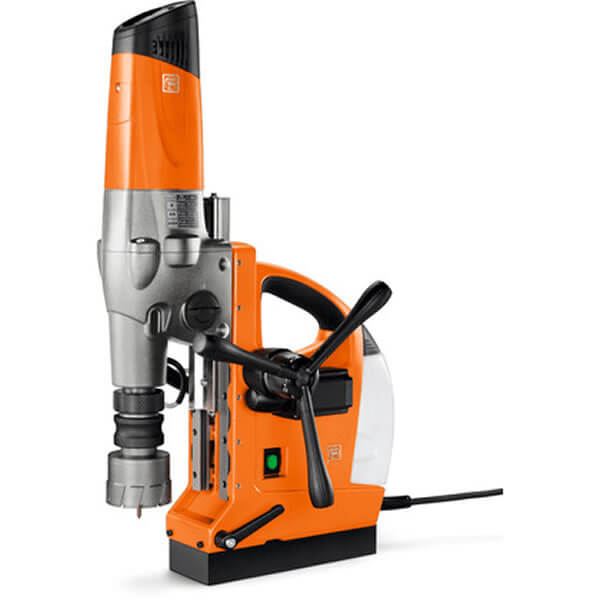

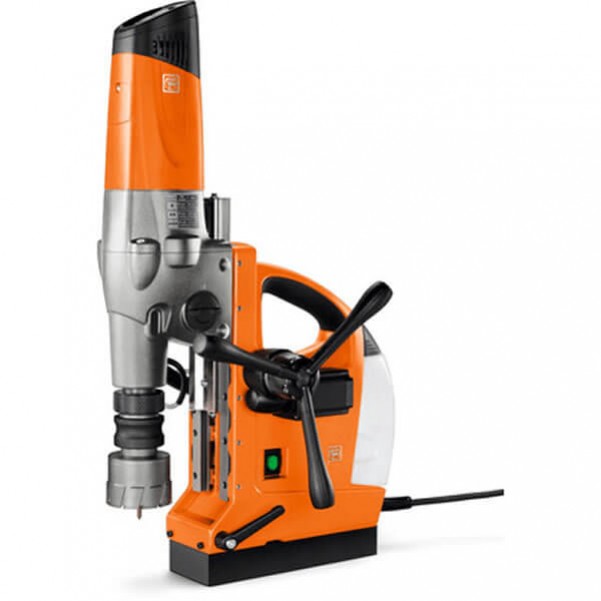

Fein KBM 80 auto - 240V 2000W Metal Core Drilling Unit 72703206240
This model is no longer available, please see the replacement model: Holemaker HMPRO110 - 240V 110mm PRO 110 Magnetic Base Drilling Machine
Features:
- Speed stability even in tough applications.
- Fine adjustment of the drill spindle for convenient tool alignment.
- Double drill motor guide for use with very large drilling tools.
- Reversible rotation.
- Electronic speed setting.
- MT3 interface.
- High magnetic holding force.
- Convenient magnetic holding force display.
- Integrated coolant tank.
- Mechanical 3-speed gearbox.
- Automatic coolant supply.
- Slipping clutch torque.
Specifications:
- Carbide core drill bit max. diameter ; 80 mm
- HSS core drill max. Ø : 65 mm
- Core drill, drilling depth max.: 0 mm
- Twist drill max. Ø: 32 mm
- TappingM : 27
- Countersinking max. Ø: 50 mm
- Reaming max. Ø : 31 mm
- Input : 2000 W
- Output : 900 W
- 1st gear : 110-180 rpm
- 2nd gear : 160-260 rpm
- 3rd gear : 350-580 rpm
- Core drill holderQuickIN/QuickIN MAX
- Tool HolderMK : 3
- Stroke : 145 mm
- Total stroke range : 285 mm
- Adjustment range for drill : 4,25 mm
- Swivel range for drill : 11mm
- Magnetic holding power : 18000 N
- Magnetic foot dimensions : 270 x 90 mm
- Cable with plug : 4 m
- Weight according to EPTA : 25,4 kg
Includes:
- 1 case.
- 1 coolant tank.
- 1 lashing strap.
- 1 swarf hook.
- 2 centering pins.
- 1 contact guard.
- 1 drift key.
- 1 QuickIN MAX/ MT3 tool mounting.
