Fein KBH25 - 240V 1200W Metal Core Drilling Unit 72710161060

Fein KBH25 - 240V 1200W Metal Core Drilling Unit 72710161060

Features:

  • Work up to 6 times faster thanks to innovative drilling technology: 5 mm deep centre drilling at 1600 rpm followed by disconnection of the centre bit and automatic speed change to 520 rpm to achieve the optimum cutting speed for carbide core bits. With its specially developed cutting geometry, the carbide core bit completes the desired hole diameter with little effort on the user's part.
  • Can be used with all standard metals and surfaces by adjusting the speed to the task in hand.
  • High level of safety thanks to torque slipping clutch. Protects the user in the event of overload by disconnecting the output side from the drive side.
  • Mechanical 2-speed gearbox with speeds of 0-1600 rpm for efficient twist drilling and clockwise/anti-clockwise operation for cutting threads up to M12.
  • ** Torque slipping clutch.
  • Reversible rotation.
  • FEIN high-power motor with high speed stability.
  • Variable speed control.
  • Speed preselection.
  • Speed-controlled tacho electronics.
  • Infinitely variable electronic speed setting.
  • Distortion-free barrel-type motor housing.
  • Carbide core drill bits with optimised service life.
  • Restart protection.
  • Wide range of accessories.

Specifications:

  • Input: 1200 W
  • Output: 680 W
  • 1st gear: 0-520 rpm
  • 2nd gear: 0-1 600 rpm
  • Torque at max. output power: 50 Nm
  • Stall torque: 50** Nm
  • Drilling diameter in steel, core drill bit: 25 mm
  • capacity in Ø stainless steel: 25 mm
  • Drilling diameter in aluminium, core drill bit: 30 mm
  • Core drill, drilling depth max.: 20 mm
  • Drilling diameter in steel, hole saws: 80 mm
  • Hole saws, max. drilling depth: 4 mm
  • TappingM : 12
  • Width across corners: 27 mm
  • Core drill holder Quick IN Plus
  • Cable with plug4 m
  • Weight according to EPTA: 3,4 kg

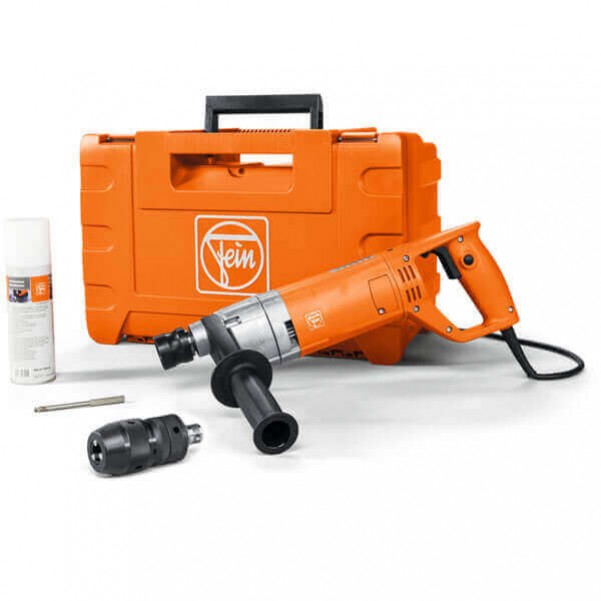

Includes:

  • 1 metal core drill KBH 25-2 U
  • 1 centring drill bit
  • 1 additional handle
  • 1 cutting spray
  • 1 quick-action chuck Ø 3-16 mm
  • 1 plastic carrying case
