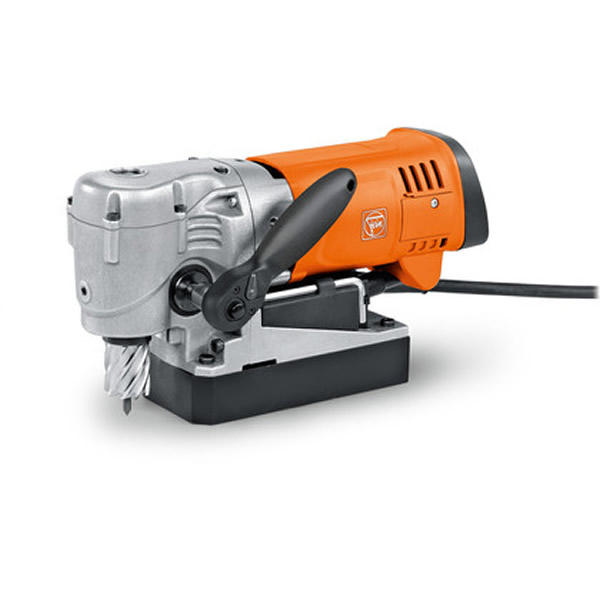

FEIN KBC35 - 35mm Compact Magnetic Core Drill

FEIN KBC35 - 240V 1100W 35mm Compact Magnetic Core Drill

Extremely small and light single-speed compact magnetic core drill with right-angle drive and minimum dimensions for use in tight spaces in the workshop and on the construction site.

Features:

  • Extremely small and light for working in tight and difficult-to-reach spots - including vertically and overhead - thanks to the height of 169 mm.
  • Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades.
  • Speed stable 1100 W FEIN high-power motor with tacho electronics and forward/reverse running for quick work progress in all applications such as core drilling, twist drilling, tapping and countersinking.
  • Fixed drill motor for working in tight spaces.
  • High gearbox positioning for optimum view of the drilling point.
  • Space-saving operation on both sides with ratchet.
  • Easy tool positioning as it weighs just 7.5 kg.
  • Tilt sensor.
  • Simple operating concept avoids mix-ups and can be clearly seen by the user.
  • Convenient magnetic holding force display.
  • Electronic speed setting.
  • Internal cooling lubrication by means of hand pump.
  • Speed saving “memory function”.

Specifications:

  • Input: 1100 W
  • Output: 550 W
  • Speed, full load: 130 - 520 rpm
  • Twist drill max. Ø16 mm
  • Core drill, drilling depth max: 35 mm
  • Tapping: M 12
  • Countersinking max. Ø32 mm
  • Carbide core drill bit max. diameter: 35 mm
  • HSS core drill max: Ø35 mm
  • Core drill holder: 3/4 in Weldon
  • Width across corners: 33 mm
  • Height: 169 mm
  • Stroke: 46 mm
  • Magnetic holding power: 10 000 N
  • Magnetic foot dimensions: 175 x 80 mm: Cable with plug: 4 m
  • Weight according to EPTA: 7,50 kg

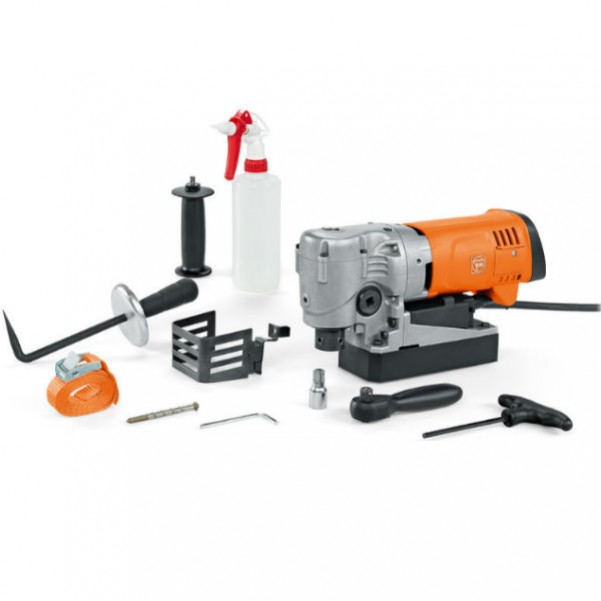

Includes:

  • 1 x 3/8” ratchet
  • 1 x 3/8” socket wrench extension
  • 1 x coolant pump
  • 1 lashing strap
  • 1 swarf hook
  • 1 centering pin
  • 1 contact guard
  • 1 additional handle
  • 2 x 5 and 8 mm hexagon socket wrench
  • 2 x 5 and 8 mm hexagon socket wrench with T-handle
  • 1 case
