ESAB 68813230T0 - OK 68.81 3.2x350mm 1/2 VP 1.7kg Welding Electrodes
High alloy stainless electrode of unusual versatility, giving a ferritic-austenitic duplex weld metal with an approximate ferrite content of FN 40. The weld metal is resistant to stress corrosion attack and highly insensitive to dilution by melted parent metal. Applications: joining of HWT steels, dissimilar steels, surfacing rails, rolls, alforging dies, hot work tools, dies for plastics etc. Good scaling resistance up to 1150 °C.
Features:
- Over the last few decades, a significant amount of applications that were traditionally welded with covered electrodes have been transferred to more productive methods, such as submerged arc and flux cored welding. However, for applications where flexibility is essential, the covered electrode is often the best solution. ESAB stainless steel covered electrodes provide great quality, consistency, and corrosion-resistance in a full line of grades.
- Covered electrodes for stainless steel welding are categorized according to their coating composition into: rutile (easiest to use), basic (for more demanding applications), and high deposition (contains high amounts of iron powder in the coating for high productivity) types.

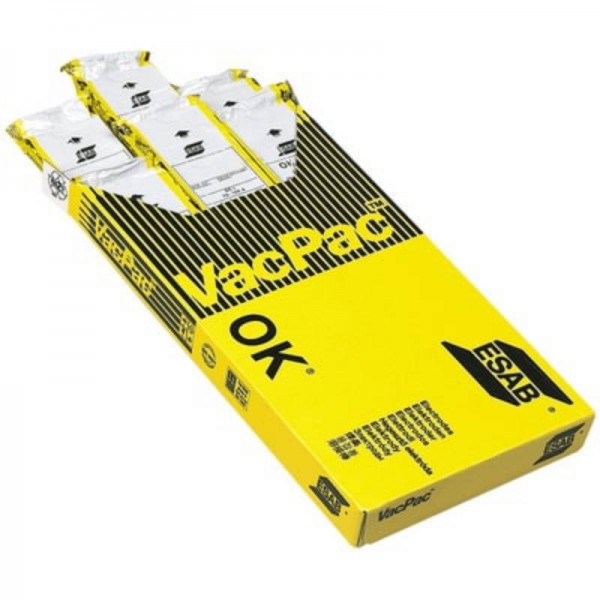

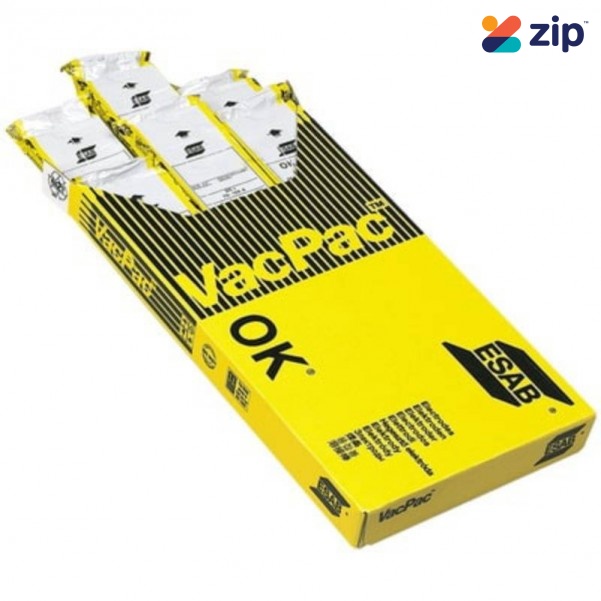

- ESAB's VacPac™ packaging is hermetically sealed and vacuum-packed to protect covered electrodes from moisture pick up and re-absorption from the air. All of ESAB's stainless steel electrodes are supplied in VacPac, ranging from 0.7 kg (1.5 lb) to 2 kg (4.4 lb) in 3-6 package cartons.
Specifications:
- Classifications:
- EN 14700 : E Fe11
- EN ISO 3581-A : E 29 9 R 3 2
- SFA/AWS A5.4 : E312-17
- Werkstoffnummer : 1.4337
- Welding Current: AC, DC+
- Ferrite Content: FN 30 - 50
- Alloy Type: Stainless duplex
- Coating Type: Acid Rutile
Approvals:
- CE : EN 13479
- UKCA : EN 13479
