ESAB 559170006 - Cutmaster 70+ Plasma Cutting Machine

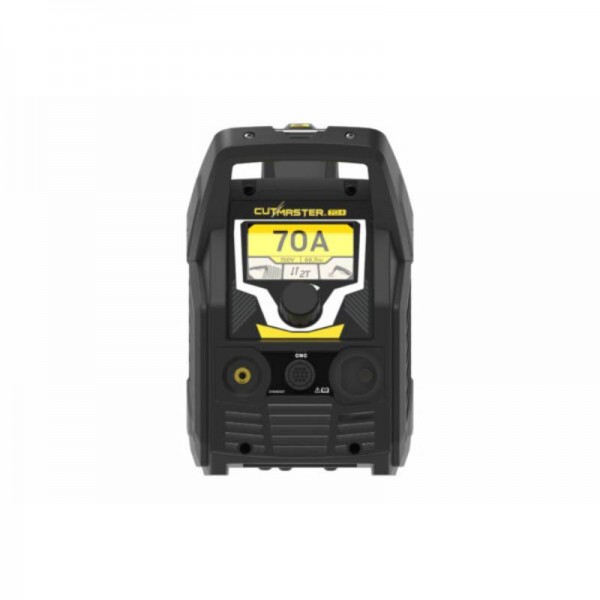

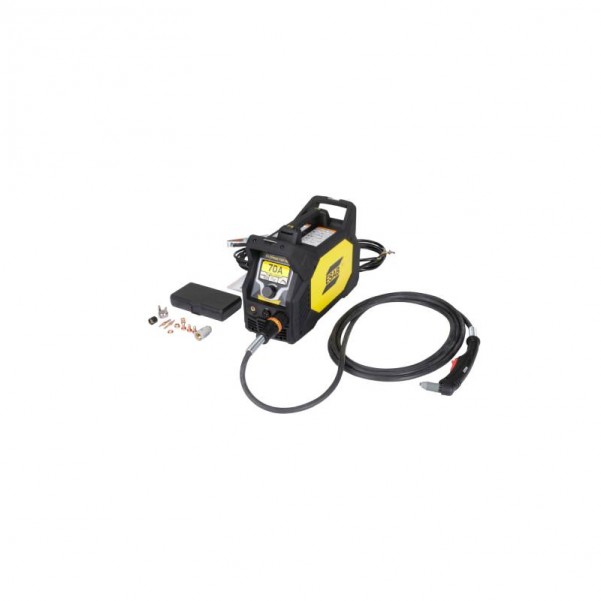

Cutmaster 70+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 4.3in. TFT LCD screen and we’ve also upgraded the power of the machine to provide more control and flexibility so you can master any genuine cutting with ease to 20mm, regular hand cutting to 30mm, and occasional severance cutting to 38mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
Features:
- Cutmaster 70+ features an all-new ergonomic design for the best portability in its class – without sacrificing performance. It weighs only 16 kg, with multiple handles and carrying points that help it feel even lighter.
- With an incredible arc stretch, Cutmaster 70+ can be used in unusual cutting positions while maintaining cut quality. It comes with a complete range of consumables out of the box for cutting and gouging, and it runs on 400 V power with automatic amperage adjustment.
- Cutmaster 70+ has remarkable power for a machine of its size. The legendary 1TorchTM allows for a best-in-class 20 mm pierce and cut capacity and up to 38 mm max sever. With an extraordinary 50% duty cycle at 70 A, thanks to all-new hybrid cooling technology, your hands will give up before this machine does.
- We put Cutmaster 70+ in proven industrial-grade housing to ensure it can take a battering and keep performing. With an IP23 all-weather rating, Cutmaster 70+ is ready to work where you need it to – rain or shine, day in and day out. Cutmaster 70+ also comes with new Black Series consumables that last up to 60% longer before needing to be replaced.
- ESAB’s industry-leading service and support means that if you do need help, you will be protected by the most comprehensive warranty in the business.
- Cutmaster 70+, like every ESAB machine, is backed by our commitment to superior customer service and support.
Specifications:
- Amperage Output: 15 – 50A, continuously adjustable
- Recommended Generator Size: 12kW (or higher)
- Genuine Cutting & Pierce Capacity: 16mm*
- Regular Hand Cutting Capacity: 25mm*
- Maximum Severance Cut Capacity: 32mm*
- Input Voltage: 400VAC +/- 15%, 50/60Hz, 3ph
- Rated Duty Cycle @ 40°C: 60% @ 50A, 100% @ 40A
- Rated Duty Cycle @ 40°C: 40% @ 40A, 100% @ 20A
- Recommended Circuit Breaker Size (at Maximum Cut Capacity): 25A
- Amperage Draw (at Maximum Cut Capacity): 15.5A
- Input Power Cable and Plug: 3m, 4.0mm2 without plug
- Work Lead with Ground Clamp: 3m 10mm2 work cable with 25mm2 connection
- Gas Requirements: Compressed air (Clean & Dry)
- Operating Temperature Range: -10°C to + 50°C
- Compressed Air Pressure Requirement: 90 – 125psi (6.2 – 8.6bar) (0.62 – 0.86Mpa)
- Compressed Air Flow Requirement: 142 – 235 l/min.
- SL60 Torch Duty Cycle: 100% @ 60A with 165 l/min air flow
- Torches – for use with Cutmaster 50+: SL60 Torch (supplied)
- Enclosure Class: IP23S
- Certifications: CE, RCM
- Dimensions L x W x H: 465mm x 200mm x 315mm
- Weight: 16kg
