ESAB 48082532G0 - OK 48.08 2.5x350mm 1/2 VP 1.7kg Welding Electrodes
Basic universal electrode with very good welding characteristics, especially designed for welding of carbon steels, carbon manganese steels and fine grained carbon manganese steels with elevated yield strength. Typical field of application is offshore construction.The weld metal alloyed with approximately 0.9% Ni fulfills the requirements on impact toughness at -50°C.The coating is of low moisture absorption type and gives diffusible hydrogen < 4ml per 100 grams of weld metal. OK 48.08 is HIC test compliant as per NACE TM0284 & SSC test compliant as per NACE TM0177.
Features:
- When our founder Oscar Kjellberg developed the world's first coated welding electrode in 1904, he launched a company whose innovation and uncompromising standards have helped create the history of welding itself. This legacy continues in the quality, performance, and continuous development of the covered electrodes we make today.

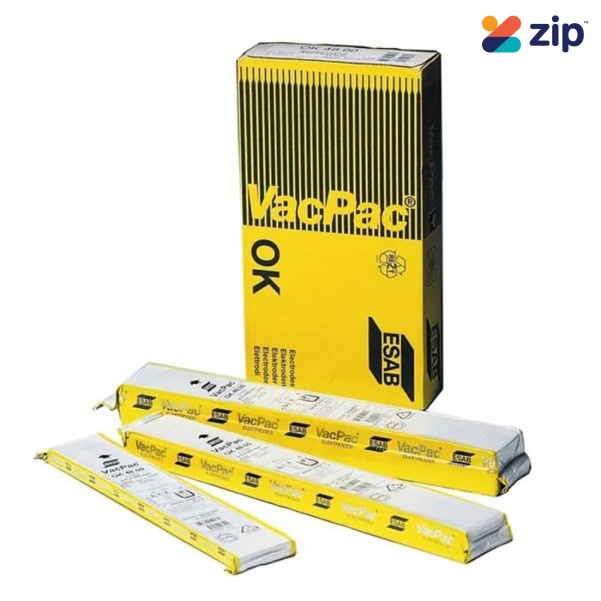

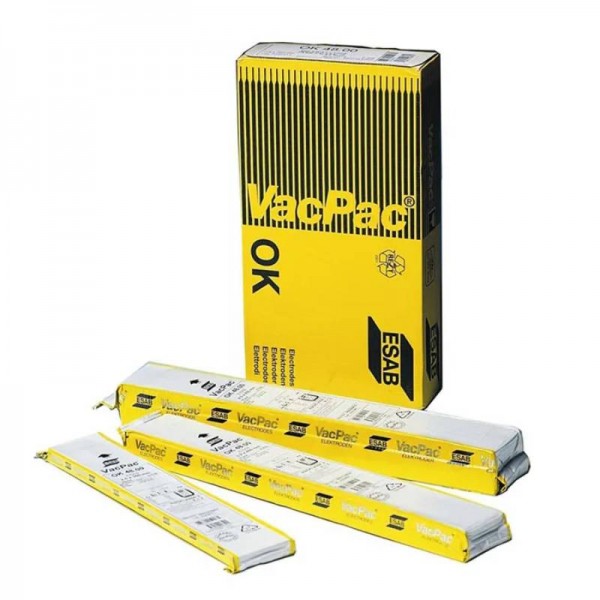

- ESAB's VacPac™ packaging is hermetically sealed and vacuum-packed to protect low alloy electrodes from moisture pick up and re-absorption from the air. Electrodes can be used straight from the package without the need to re-bake them or you can store them temporarily in holding ovens and quivers. Get fresh, dry low alloy covered electrodes every time with ESAB.
Specifications:
- Classifications:
- SFA/AWS A5.5 : E7018-G H4R
- EN ISO 2560-A : E 46 5 1Ni B 32 H5
- Approvals:
- ABS : 3Y H5
- CE : EN 13479
- DB : 10.039.31
- DNV-GL : 4 Y40H5
- LR : 4Y40 H5
- NAKS/HAKC : 2.5-5.0 mm
- RS : 4Y H5
- VdTÜV : 05778
- Welding Current AC, DC+(-)
- Diffusible Hydrogen < 4.0 ml/100g
- Alloy Type Low alloyed (0.9 % Ni)
- Coating Type Basic covering
Applications:
- Ideal for joining difficult to weld steels such as armour plate and ferritic stainless steels, as well as dissimilar steels
