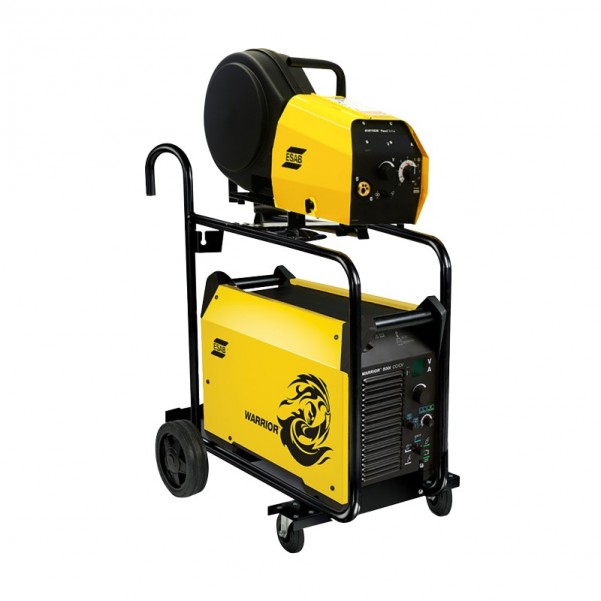

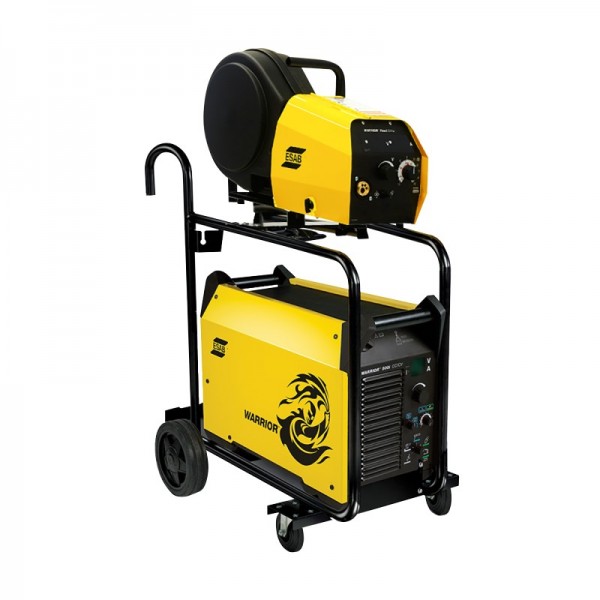

Cigweld W1009660 - ESAB Warrior 500i CC/CV Package
The ESAB Warrior 500i brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price. Perfect for long runs across a variety of applications and delivers 500amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in rough environment. Easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy.
Includes:
- 1 x ESAB Warrior 500i CC/CV – 0465350885
- 1 x ESAB Warrior Feed 304 – 0465250881
- 1 x ESAB Trolley – 0465510880
- 1 x ESAB 10m Interconnection Cables – 0459836882
- 1 x Tweco 4, 3.6m PSF 405 Mig Torch – OTWX415/3545
Features:
- Comes with Warrior Feed 304, Trolley, Cables & Mig Torch
- Multi Process – MIG/TIG/Stick/Gouging
- Designed to be durable & rugged
- 500amps @ 60% Duty Cycle
- Easy to use, intuitive user interface
Specifications:
- Mains Supply, VAC, 3 ph 50/60Hz: 380-400-415, +/-10%
- Mains cable, Ø mm2: 4x6
- Fuse, Motor Start Type or Circuit Breaker Type C, A: 32
- Maximum Load: 100% duty cycle A/V, 3ph: 400/36 | 60% duty cycle A/V, 3ph: 500/40
- Current Range: MIG/FCAW: 16-500A | Stick (MMAW): 16-500A | TIG: 5-500A
- Open Circuit Voltage: 78V
- Idle Power: 120W
- Efficiency at Max. Current: 88%
- Enclosure class: IP23
- Dimensions: 712L x 325W x 470H mm
- Weight: 52kg
- Operating Temperature: -10 to +40°C
- Warrior Feed 304: Power Supply: 42VAC
- Warrior Feed 304: Wire Spool Capacity: 18kg
- Warrior Feed 304: Max. Spool Diameter: 300mm
- Warrior Feed 304: Dimensions (Including Bobbin Cover): 675L x 264W x 218H mm
- Warrior Feed 304: Wire Dimensions: Steel: 0.6-1.6 | Stainless Steel: 0.6-1.6 | Aluminium: 0.8-1.6 | Cored Wire: 0.9-1.6
- Warrior Feed 304: Enclosure Class: IP23
