Cigweld W1008205 - WeldSkill 205AC/DC Stick & Tig Portable Inverter Welder

Features:

Current range of 10 to 205A with AC and DC welding output.
HF TIG (GTAW) 205A @ 20% High Frequency in AC TIG modes and High Frequency Start in TIG DC modes.
Suitable for use with 2.0mm, 2.5mm, 3.2mm and 4.0mm electrode sizes, except AWS E6010 Cellulose.
Pulse welding capabilities available in AC and DC TIG modes.
Pulse frequency operates in Pulse TIG mode and can be set from 0.2 to 200Hz pulse frequency.
STICK (MMAW): 160A @ 20% Power Source is suitable for 2.0mm, 2.5mm, 3.2mm and 4.0mm electrode sizes. Suitable for all electrode types except AWS E6010 Cellulose.
Adjustable AC Frequency Range in AC TIG mode from 20 to 250Hz.
Adjustable Wave Balance Range from 10% to 65% sets penetration to cleaning action ratio.
Shielding gas system can be purged and shielding gas flow rates to be set without live welding output.(In TIG Modes).
Initial Current and Crater Current with Adjustable range from 10 to 205A.
Trigger Mode control switches between 2T (normal) and 4T (latch mode) in TIG Modes.
Spot welding capability in TIG mode.
Anti-stick Helps to prevent the stick electrode from sticking to the work piece.
Hot start Improves the arc start characteristics of stick electrodes
Digital meter for easy preview and adjusting.
Built-in over temperature protection

Specifications:

Cooling: Fan Cooled
Number of Phases: 1
Nominal Supply Voltage: 240V +/- 15%
Nominal Supply Frequency: 50/60Hz
Welding Current Range (STICK Mode): 10 - 160A
Welding Current Range (TIG Mode): 10 - 205A
Effective Input Current (I1eff): 15A
Factory Fitted Supply Plug Rating: 15A
Maximum Input Current (I1max): 34A
Single Phase Generator Requirement:
- 10kVA (at 0.8 power factor)
- 8kW (at 1.0 power factor)
Output Terminal Type: Dinse Style 50
HF TIG Welding Welding Output, 40^oC, 10 min:
- 205A @ 20%, 18.2V
- 120A @ 60%, 14.8V
- 95A @ 100%, 13.8V
Open Circuit Voltage: 63V
Stick Welding Output, 40^oC, 10 min:
- 160A @ 20%, 26.4V
- 90A @ 60%, 23.6V
- 70A @ 100%, 22.8V
Open Circuit Voltage (VRD On): <35V
Open Circuit Voltage (VRD Off): 63V
Protection Class: IP23S
Dimensions (H x W x D): 324mm x 176mm x 430mm
Weight: 12kg

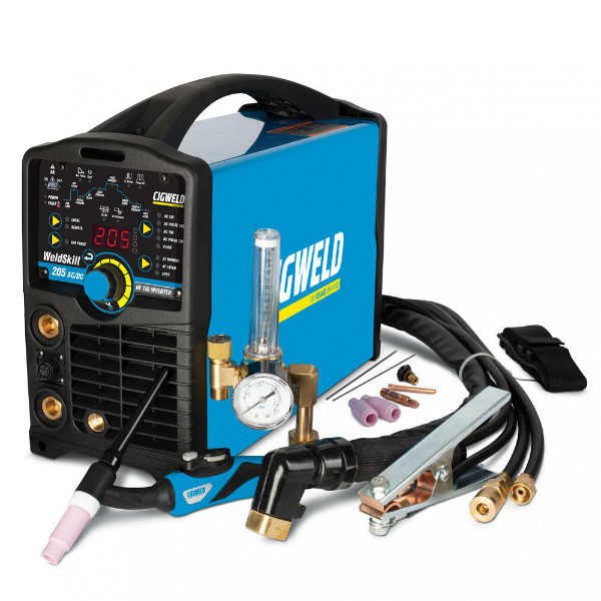

Includes:

WeldSkill 205AC/DC HF TIG Inverter Power Source
TIG Torch with 8m Lead and Remote Control
TIG Torch Accessory Kit
CutSkill Preset Argon Regulator/Flowmeter
Twistlock Electrode Holder with 4m Lead
Work Clamp with 4m Lead
Shoulder Strap
