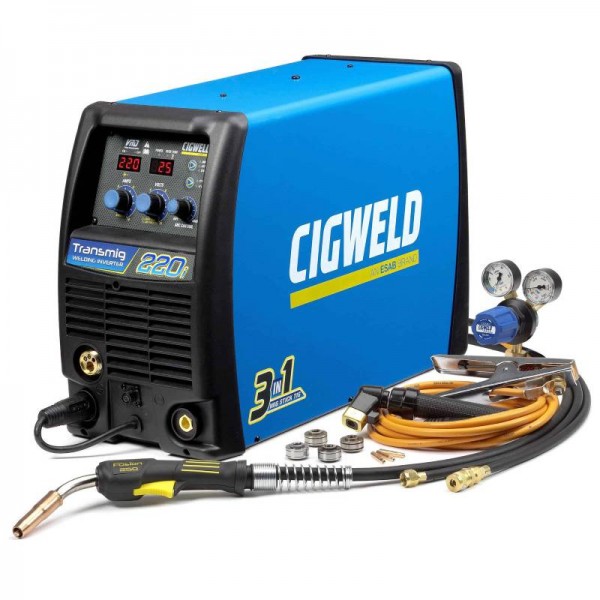

Cigweld PP220iA21 - Transmig 220i MIG TIG STICK Power Pack

Click Image for Gallery

Cigweld PP220iA21 - Transmig 220i MIG TIG STICK Power Pack

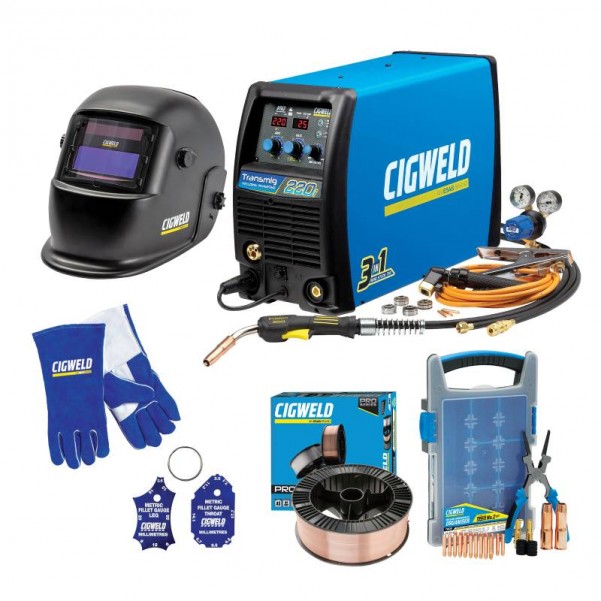

Includes:

Transmig 220i Welder, W1005220
WeldSkill Essential Auto-Darkening Helmet 9 -13 Black, 454337

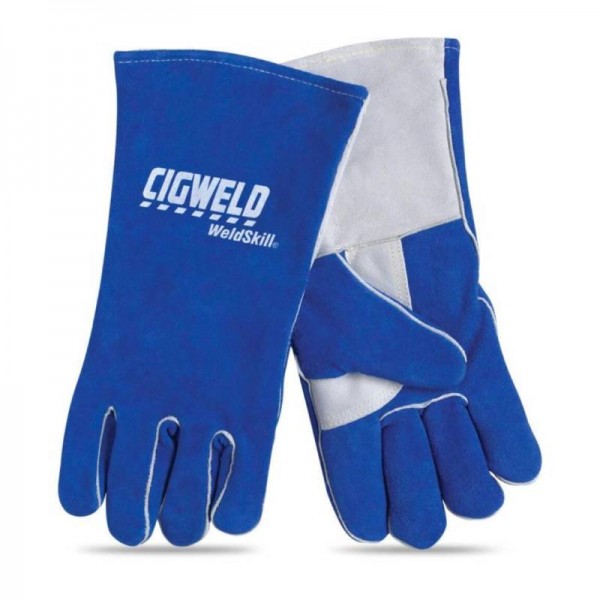

Heavy Duty Welding Gloves (Large)
5kg Weldskill Solid Wire 0.9mm
Tweco Mig Consumables Starter Kit with Pliers
Weld Gauge: Measures Leg Length & Throat Thickness, CIGAGE
3m Tweco Professional Fusion 250 MIG Torch
COMET Professional Argon Regulator/Flowmeter
Feed Rolls:
- 0.6/0.8mm V Groove (fitted),
- 0.9/1.2mm V Groove,
- 1.0/1.2mm U Groove;
- 0.8/0.9mm V Knurled;
- 1.2/1.6mm V Knurled
Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm
Twist Lock Electrode Holder with 4m Lead
Work Clamp with 4m Lead
Shielding Gas Hose Assembly
Operating Manual

The CIGWELD TRANSMIG 220i is a self-contained single-phase multiprocess welding inverter that is capable of performing GMAW/FCAW (MIG), MMAW (Stick) and GTAW (Lift TIG) welding processes. The unit is equipped with an integrated wire feed unit, a voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

Features:

220A (MIG Mode) 3-in-1 MIG / Stick / Lift TIG Inverter Welder
Digital Amperage and Voltage Meters
Full multi-process capabilities; MIG, Stick and Lift TIG
Integrated Wire Feed Unit – Spools up to 15kg or 300mm
Standards compliant VRD
Fully compliant with AS 60974.1-2006. Enclosure Rated to IP23S – Designed for Indoor and outdoor use.
Arc Control (Inductance) for adjusting the intensity of the arc
Adjustable burn back Control for controlling MIG wire stick out
Euro MIG Torch Connection
Accepts Mechafin style 2R feed rolls
Robust 50mm Dinse twist lock connections

Specifications:

Processes: MIG (GMAW/FCAW), STICK (MMAW), TIG (GTAW)
Supply Voltage: 240V +/- 15%
Supply Plug Lead: 15A
Current Range: 10 – 220A MIG (GMAW/FCAW), 10 – 200A STICK (MMAW), 10 – 200A TIG (GTAW)
Duty Cycle
- MIG (GMAW/FCAW): 220A @ 20%, 25V (40°C, 10mins)
- STICK (MMAW): 200A @ 25%, 28V (40°C, 10mins)
- TIG (GTAW): 200A @ 25%, 18V (40°C, 10mins)
Recommended Generator: 8.0 kW (at 1.0 Power Factor)
Weight: 26kg
Dimensions: 435mm(H) x 266mm(W) x 617mm(D)
