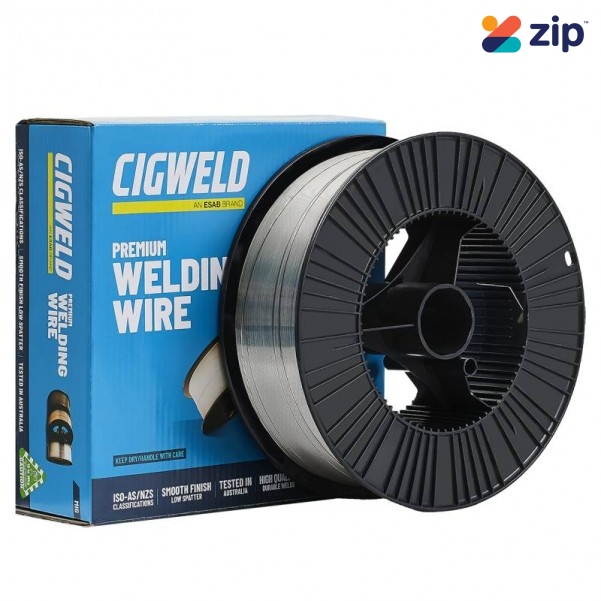

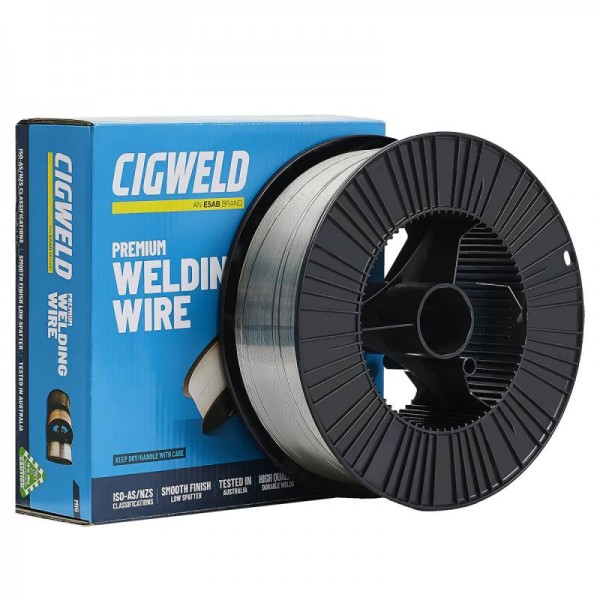

Cigweld 722930 - Verti-Cor 2209 1.2mm 15kg Spool
Verti-Cor 2209 is an all-positional duplex flux cored wire designed for the welding of 22Cr-5Ni-2Mo-0.15N duplex stainless steel commonly known as 2205. Commercial designations for such steels include SAF 2205 (Sandvik), 2205 (Avesta). The rutile type flux core gives smooth arc transfer characteristics and very low spatter levels with both CO2 and Argon + 18-25% CO2 shielding gases. The fast-freezing slag gives excellent weld pool control resulting in smooth mitre to slightly convex fillet welds in the flat, horizontal-vertical, vertical-up and overhead welding positions.
Specifications:
- Classifications
- AWS/ASME-SFA A5.22: E2209T1-1 (CO2) /E2209T1-4 (Ar + 18-25%CO2).
- Typical All Weld Metal Mechanical Properties
- Using Argon + 18-25% CO2
- Yield Stress: 650 MPa
- Tensile Strength: 820 MPa
- Elongation: 25%
- CVN Impact Values: 52J av @ -46°C
- Using CO2
- Yield Stress: 610 MPa
- Tensile Strength: 825 MPa
- Elongation: 32%
- CVN Impact Values: 50J av @ -46°C
- Recommended Shielding Gas
- AS 4882: ISO 14175 / AWS A5.32:
- SG-C: C1
- SG-AC-18, or SG-AC-20: M21
