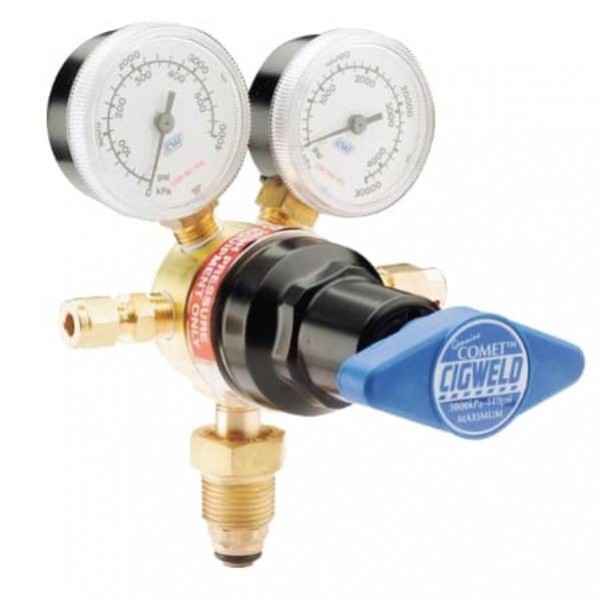

Cigweld 301562 - 20000kPa Comet 5000 EHP High Outlet Oxygen Pressure Regulator
Features:
- COMET 5000 High Pressure Regulators are ideally suited for industrial or laboratory work, pneumatic loading of test apparatus, static testing of pressure components, pressurising high pressure systems or high pressure decanting.
- Based on the COMET regulator design. Provides safe and accurate control of pressures up to 20,000kPa (2,800psi).
- 20,000 kPa models are fitted with a Type 11 inlet nut for EHP cylinder connection.
- Special hardened diaphragms for strength and accuracy.
- Tube outlet connectors prevent accidental connection to low pressure equipment.
- Gauges comply to AS1349. Inlet connections comply to AS2473.
Specifications:
- Air Flow: 2,000 l/min @ 7,000 Outlet kPa
- Gas Type: Oxygen
- Inlet Connection: AS2473 Type 11 (5/8" BSP RH Ext)
- Inlet Test Pressure: 10,000 kPa
- Max Inlet Pressure: 25,000 kPa
- Max Outlet Pressure: 20,000 kPa
- Outlet Connection: 1/4" Tube Fitting
