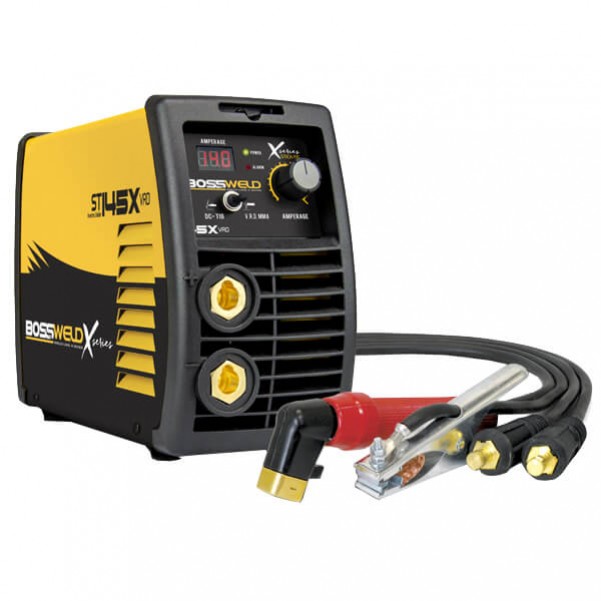

Bossweld 691145 - 240V 10A X-Series ST 145X VRD MMA/TIG Welder
The Bossweld ST 145X VRD combines the latest IGBT power technology with smooth accurate digital control and the added feature of VRD. It provides the user with the ability to stick weld (MMA) as well as DC TIG weld with lift ARC start.
Features:
- VRD (Voltage Reduction Device)
- 140 Amp output
- DC MMA and DC TIG welding
- Fitted 10 Amp plug
- Digital LED display
- DC TIG lift arc start
- Excellent arc stability
- Lightweight & Portable
- 35/50 Dinse output connectors
- Stepless Amperage control
- Generator safe
- IGBT Inverter Technology
Specifications:
- Primary Input power:
- Single Phase
- 240V 50-60
- HZ +/-15%
- Duty Cycle @ 40˚C
- MMA 10% @ 140A
- TIG 20% @ 140A
- Open Circuit Voltage: 68V
- Output Current Range: 16-140Amps
- I Max:
- MMA 31A
- TIG 20A
- I eff: 9.9A
- Protection/ Insulation Class: IP21S / S
- Electrode Diameter Range: 1.6mm to 3.2mm
- Thermal Overload: Yes
- Minimum KVA: 8.0
- Dimensions/Weight: 28x21.5x12cm / 3.3kg
Includes:
- ST 145X VRD DC Inverter Welder
- 2. 3Mt Twist lock Electrode Holder
- 3. 2.5Mt 200Amp Earth clamp
- Carry Strap
- Operator Manual
