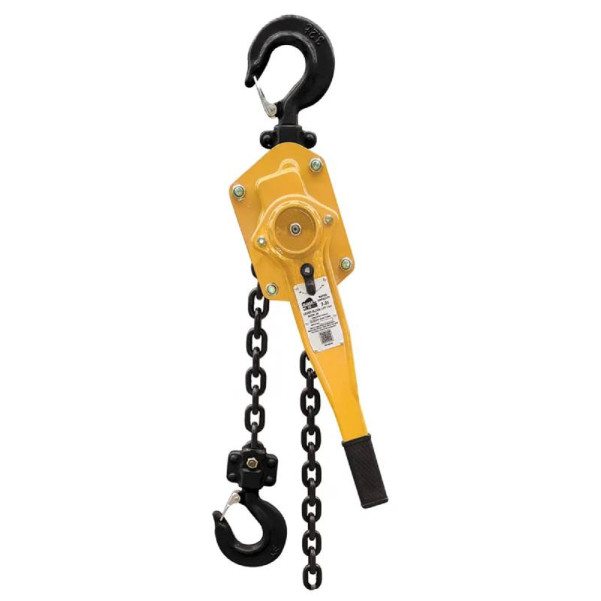

Beaver 506320 - 3S 3200KG 1.5M Manual Lever Blocks
The heavy-duty Beaver lever blocks are a versatile lifting and tensioning device with some models being widely used in rigging, construction, and mining, applicable models are marked with an asterisk below. Please note: not all models are suitable for all applications. The Beaver 3S industrial chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high-resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) to avoid dangerous sparking, making them ideal for underground mining.
Every Beaver 3S industrial-level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate. This lever block complies with AS 1418.2 and approved Colour Coded to Match International Lifting Standard.
Specifications:
- Rated Capacity: 3.2t
- Colour Code: Yellow
- Standard Lift: 1.5m
- Test Load: 45kN
- Effort on Lever to Lift Full Load: 320N
- No. Load Chain Falls: 1
- Load Chain Diameter: 10mm x 30mm
