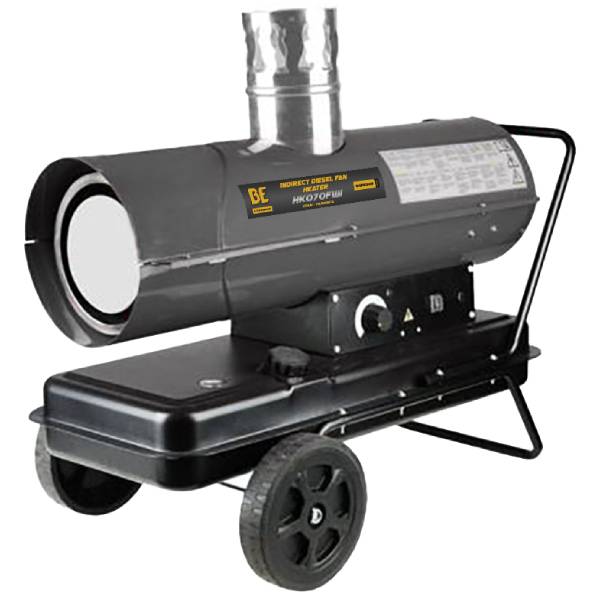

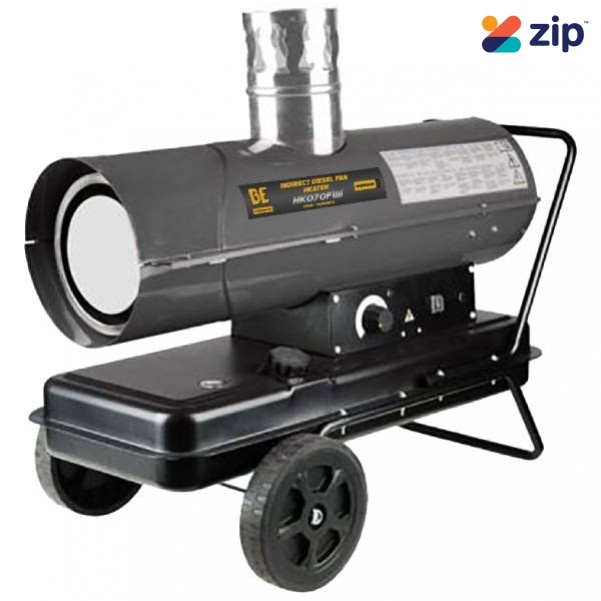

BE PIN HK070FWI - 20kW 24L Indirect Diesel Heater

BE PIN HK070FWI - 20kW 24L Indirect Diesel Heater

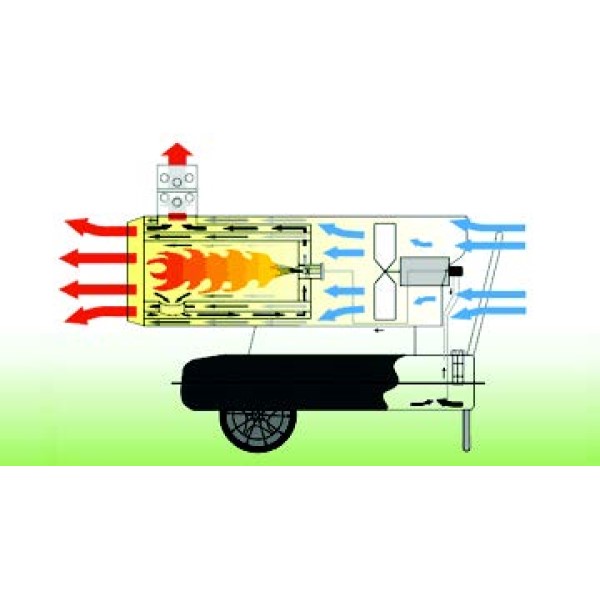

Indirect Fired diesel heaters produce an instantaneous clean heat that uses a flue exhaust system located on top of the unit to allow the fumes to escape. This creates ultra clean, fume-free dry heat which is ideal for areas of all sizes with limited ventilation or confined spaces or for any areas or application where clean and fume-free heat is required. Choose from our Industrial BE Series our the Premium MASTER branded heater that is Super Quiet in comparison to existing products in the market of top quality and made in Italy.

Features:

  • Remote Thermostat included for accurate temperature control
  • Built-in Overheat & Flame-Out Safety devices
  • Built-in calibrated air pressure gauge, and fuel gauge
  • CSA Certified to run on K-1 kerosene, #1 and #2 diesel fuel, Jet A/JP8 fuel, and #1 and #2 fuel oil
  • Dual Handle & Large Wheels for easy movement

Specifications:

  • Heating Output kW (BTU): 20kW (70,000 BTU)
  • Air Output / CFM (m3/h): 750m3/h
  • Heating Area (m2): 200m2
  • Power: 240V 10A
  • Fuel Capacity (L): 24L Tank
  • Fuel Consumption (L/hr): 1.9L/hr
  • Fuel: Diesel or Kerosene
  • Working Hours: 12.5Hrs
  • Portability: With Wheels & Handle
  • Noise Level (dB): 85dB
  • Ducting Diameter: 230mm
  • Product Dimensions: 840 x 450 x 695mm
  • Net Weight (KG): 23KG
  • Packaging Dimensions: 825 x 360 x 525mm
  • Gross Weight (KG): 24KG
  • Warranty: 1 Year

HK070FWI - Spare Parts List

NOTE FOR ATTACHING DUCTING TO HEAT OUTLET:

The first meter (1m) of ducting is required to be rated at a minimum of 350°C temperature resistance, all remaining ducting is required to have a minimum of 200°C temperature resistance.
