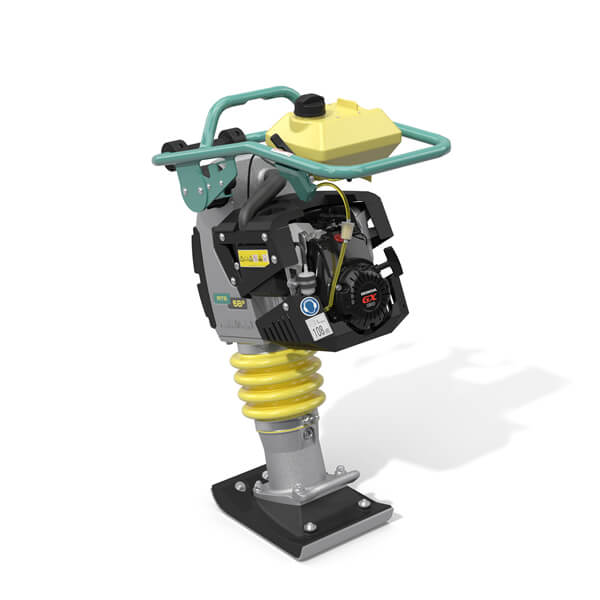

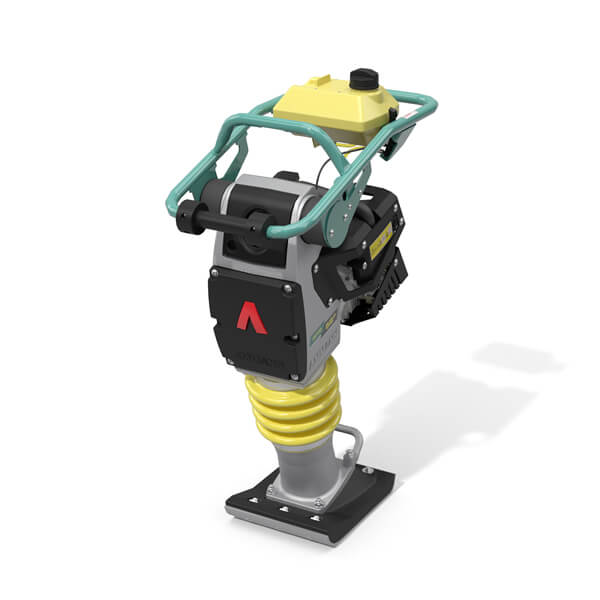

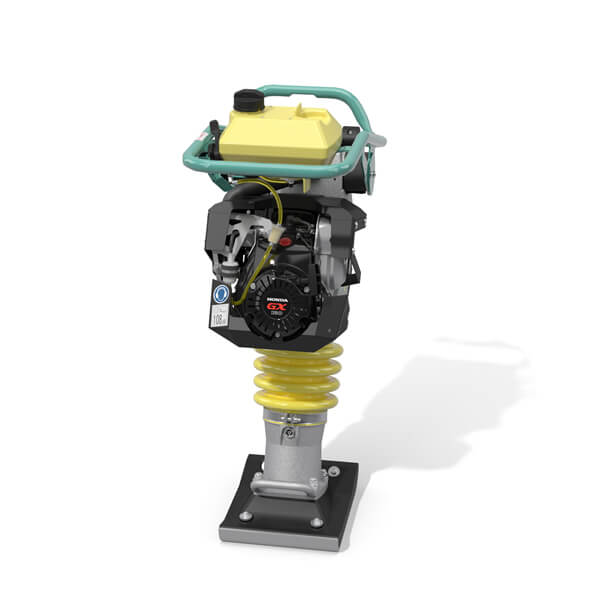

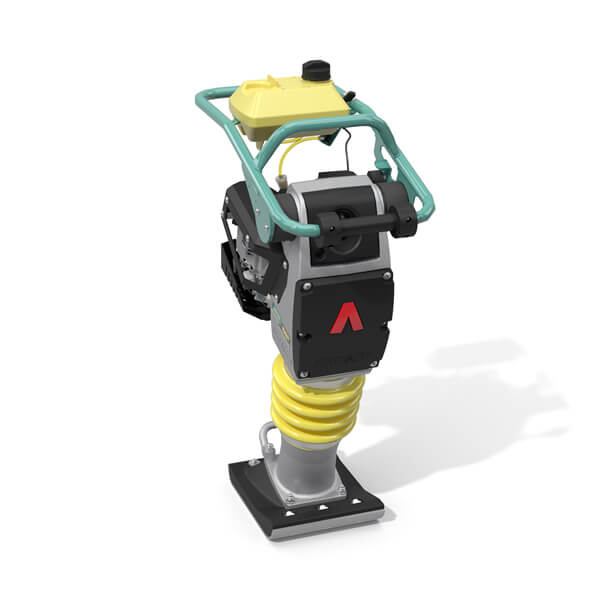

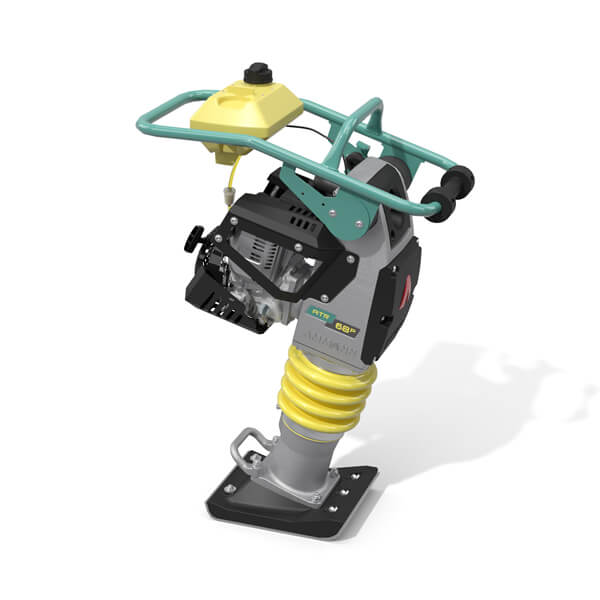

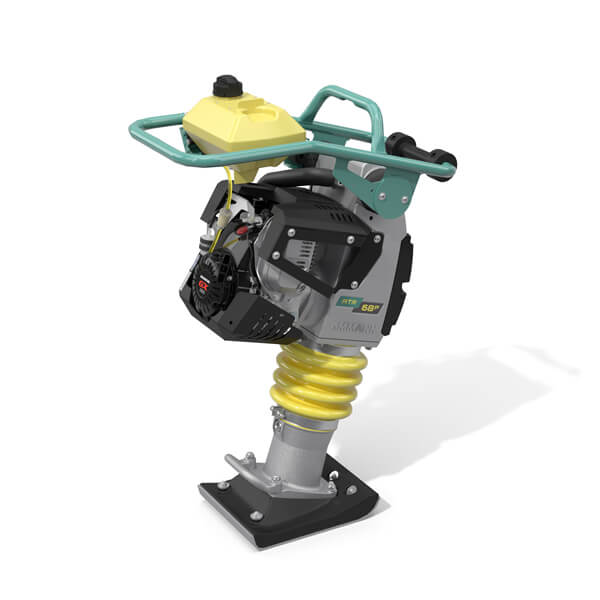

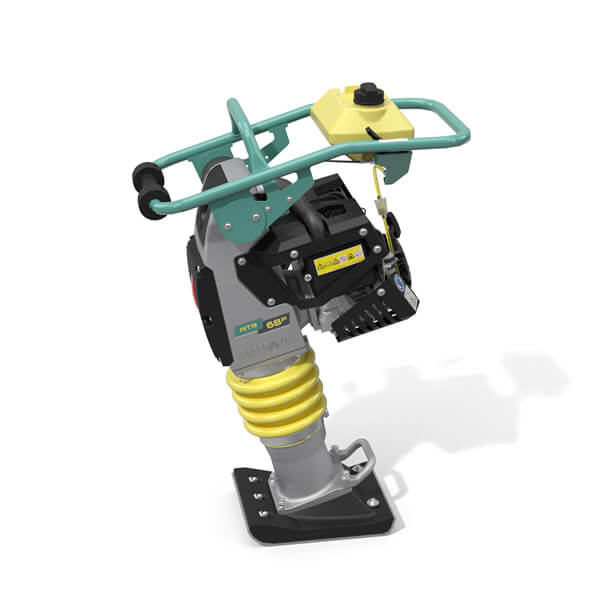

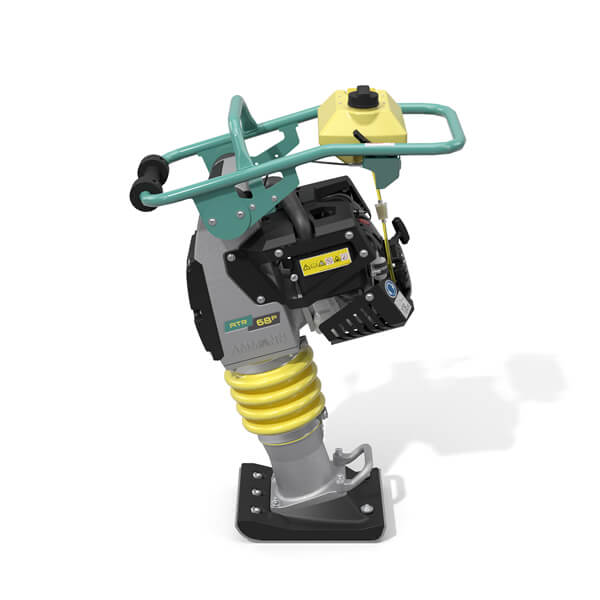

AMMANN ATR 68 Premium - 2.7kW (3.7 HP) 68 kg Petrol Rammer

Freight:

• This item is a heavy and large item, freight might vary from different location, please contact us at Email or phone us on (07) 3326 1555 for a more accurate shipping quote and/or any special shipping arrangements you may require.

Delivery:

• This is a heavy item more than 70 kg, please make sure you have the lifting device to load. Otherwise, please order a Hydraulic Tail Lift Service in the accessory section. Thanks.

Ammann Classic rammers focus on – and excel at – the basic needs for any contractor. They are great fits for rental houses and contractors who don’t frequently require a rammer.

Like all Ammann rammers, the ATR 60 C and ATR 68 C provide industry-leading compaction output and forward movement. The handle, the height, proper shoes and a low centre of gravity that enables control make the rammers easy to operate regardless of experience level. The rammers feature the vibration isolated handle concept that limits hand-arm vibrations to protect the operator.
This is an important feature to make the operator work more comfortable and to avoid long-term health issues. If required, the height of the handle can be adjusted to adapt to the operator’s size.

The ATR 60 C offers a working weight of 61 kg. The ATR 68 C delivers more weight at 86 kg. Both machines excel with their unmached balance.

The Classic rammers are equipped with a Honda GX 100 petrol engine, highly regarded for its reliability and long life.

Features:

 EFFICIENCY

• Best-in-class machine balance
  • The rammers’ design provides exceptional balance that prevents tipping and delivers a host of operator benefits, including effortless guidance and precise control. The balance also spurs the forward movement that boosts rammer performance and productivity – and ultimately leads to profitability.Pure compaction power
  • Ammann ATR Rammers are powerful tools that send vibration to the ground and away from operators. The result: an industry leader in both compaction force and operator comfort.
• Extremely durable
  • Taking a hit is not problem for the Ammann Rammers. High quality components and protective casings keep the machines running, even under the toughest conditions.
• Powerful engines
  • A reliable engine, best suited to the machines size, is built into every ATR machine to grant optimal power and long life. The classic models are equipped with the Honda GX100 engine.

ERGONOMICS

• Height adjustable: The adjustable height of the guide handle ensures comfort for operators of all sizes. The handle’s vibration-isolated feature also maximises operator comfort.
• Secure grip from all sides: The handle’s design enables a secure grip from all sides. The operator can maintain precise control, even while turning the machine in any direction.

SERVICABILITY

• Cyclone pre-filter: An optional zyclone pre-filter is available on ATR 60 and ATR 68 machines. The cyclone can help your filter last 5 times longer.

Specifications:

• SKU: ATR68P
• Net Weight (kg): 68.0 Kg
• Overall Dimensions: 710 mm (L) x 355 mm (W) x 1020 mm (H)
• Foot Length: 340 mm
• Foot Width: 280 mm
• Ramming shoe size (WxL): 280 x 340 mm
• Engine / Motor Type: Honda GXR 120
• Engine / Motor Manufacturer: Honda
• Fuel Type: Petrol
• Percussion Rate Max.: 680 blows/min
• Impact Force: 13 kN
• Surface Capacity: 225 m²/h
• Compaction Depth (mm): 500 mm
• Stroke Height: 65 mm
• Max Working Speed (m/min): 13.5m / min
• Engine Output: 2.7 kW (3.7 HP)
• At RPM: 4300
• Tank Capacity L: 3.2 L
• Manufacturers Warranty: 3 years
